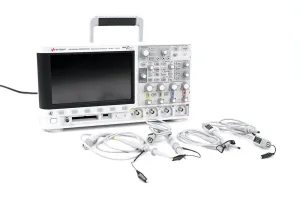

Keysight MSOX2024A InfiniiVision 2000 X Mixed Signal Oscilloscope, 200 MHz, 4 Probes

The Keysight MSOX2024A is a 200 MHz mixed-signal oscilloscope (MSO) from the InfiniiVision 2000 X series. It combines four analog channels with eight digital channels for embedded systems testing, electronics research, signal integrity analysis, and biotechnology instrumentation development.

Key features:

• 200 MHz bandwidth
• Four analog channels and eight digital channels
• Up to 2 GSa/s interleaved sampling or 1 GSa/s non-interleaved sampling
• Up to 1 Mpts memory depth
• MegaZoom-IV custom ASIC technology
• Waveform update rate of up to 50,000 waveforms per second
• 8.5-inch WVGA LCD display with 800 × 480 resolution and 64 brightness levels
• 1.75 ns rise time
• 23 automatic measurements, including voltage, time, and frequency
• Five waveform math functions: addition, subtraction, multiplication, division, and FFT
• Integrated five-digit hardware counter
• Integrated digital voltmeter
• Trigger types including edge, pulse width, pattern, and video
• USB host ports for printing, saving, and transferring measurement data
• USB, optional LAN, and optional GPIB connectivity
• Supplied with four probes

The MSOX2024A supports detailed waveform inspection and detection of infrequent signal anomalies. Optional configurations may include bandwidth upgrades, measurement applications, protocol analysis software, an integrated 20 MHz WaveGen function generator, serial protocol triggering and decoding, and digital voltmeter functionality.

Technical specifications:

• Operating temperature: 0°C to +55°C
• Power supply: 100–120 V, 50/60/400 Hz; 100–240 V, 50/60 Hz, ±10%, autoranging
• Dimensions: 381 × 204 × 142 mm
• Weight: 3.9 kg

The listed Keysight mixed-signal oscilloscope has been tested and is fully functional and ready for use in laboratory electronics, embedded control, biomedical engineering, and research instrumentation workflows.
