Climate control

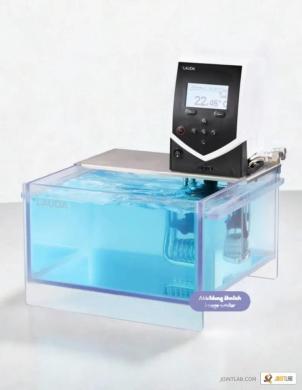

Proline heating thermostat with tank Proline clear-view LAUDA thermostats have been designed for dir (more)ect observation of objects. They are ideal for use with LAUDA Scientific PVS or iVisc automatic viscometer, as the necessary temperature stability for precise viscosity determination is ensured over the entire temperature range. In addition, the two-chamber principle always guarantees a constant liquid level in the measuring chamber, regardless of the volume and temperature of the medium. PVL models with five layers of insulating glass are suitable for low temperature measurements down to -40° or -60°C when a low temperature chiller or thermostat is connected. These thermostats are available with two different control units. The Master version is designed for all applications where the parameters are not changed very often. The removable Command operating unit (PV C models) incorporates a graphic LCD screen for high operating convenience and a programmer. Notable features - LAUDA Vario Flex pump (pressure pump) with eight selectable power levels - Cooling coil fitted as standard with connection for additional cooler Accessories included Fittings for pump connection, cooling coil Specific features of the Proline PV 15 C model - Tank volume min. 11 L - Tank volume max. 15 L - Tank opening 230 x 135 mm - Bowl depth 320 mm - Usable depth 285 mm - Upper height of the tank 390 mm - State-of-the-art Command control panel, removable, for remote use; LCD display with the most advanced feature set in the LAUDA range - Pump pressure mx. 1.1 bar - Water-cooled temperature range from 20°C to 230°C - Operating temperature range from -30°C to 230°C - Pump connectors M16 x 1 - Fitting 13 Ø

Heating thermostat from 20 to 100°C, with LCD display and simple programming functions LAUDA ECO sta (more)nds out for its range of features and ease of use. ECO thermostats are available in Silver (LCD display; simple programming) and Gold (TFT color display; complex programming) models, equipped with a mini USB interface as standard. A LAUDA innovation is the pressure flow controller located on the front of the head. This means that flow regulation between inside and outside is possible even during operation. - Monochrome LCD graphic display for simultaneous indication of actual and set values - Transparent polycarbonate bath up to 100°C - The circulation pump can be adjusted to six levels - Integrated programmer: 1 program with max. 20 segments - Fully electronic continuous regulator with PID action - Additional key Tmax for overtemperature protection - The most powerful units are equipped with the energy-saving LAUDA SmartCool system - Variants in 230V; the 50 Hz are also available with natural refrigerants - Convenient operation with softkey cursor - Safety class III for operation with flammable and non-flammable liquids. - mini-USB interface - Pump connections with 13mm plastic nipples as standard LAUDA tank thermostats are equipped as standard with a cooling coil. The E 4 model is also equipped with a lid for the bowl and connections for external applications. A drain cock on the rear side makes changing the heat transfer liquid easy and safe. Graph of heating performance of ECO Silver immersion thermostats with polycarbonate bath. Performance graph of the pump pressing on the six levels.

Heating thermostat from 20 to 200°C, with LCD display and simple programming functions LAUDA ECO sta (more)nds out for its range of features and ease of use. ECO thermostats are available in Silver (LCD display; simple programming) and Gold (TFT color display; complex programming) models, equipped with a mini USB interface as standard. A LAUDA innovation is the pressure flow controller located on the front of the head. This means that flow regulation between inside and outside is possible even during operation. - Monochrome LCD graphic display for simultaneous indication of actual and set values - The circulation pump can be adjusted to six levels - Integrated programmer: 1 program with max. 20 segments - Fully electronic continuous regulator with PID action - Additional key Tmax for overtemperature protection - The ECO heating thermostat line includes transparent baths up to 100°C and stainless steel up to 200°C - The most powerful units are equipped with the energy-saving LAUDA SmartCool system - Variants in 230V; the 50 Hz are also available with natural refrigerants - Convenient operation with softkey cursor - Safety class III for operation with flammable and non-flammable liquids. - mini-USB interface - Pump connections with 13mm plastic nipples as standard LAUDA tank thermostats are equipped as standard with a cooling coil. The E 4 model is also equipped with a lid for the bowl and connections for external applications. A drain cock on the rear side makes changing the heat transfer liquid easy and safe. Heating performance graph of ECO Silver immersion thermostats with stainless steel tank. Performance graph of the pump pressing on the six levels. TECHNICAL VISUALIZATION Display 1 - Status display 2 - Display of the internal or external temperature value (T-int or T-ext) 3 - Soft-key bar Control panel 4 - Soft keys, left and right 5 - Enter key 6 - Cursor keys for Up, Down, Left and Right. 7 - T max key: display and adjustment of the overtemperature switch-off point 1 - USB interface 2 - Upper module receptacle approx. 51 mm x 27 mm for analog, RS 232/485 module, Profibus module and contact module 3 - Lower module receptacle approx. 51 mm x 17 mm for Pt100/LiBus module 4 - Connection socket 75S for control cable of cooling underpart for RE 1050 S 5 - Rating label 6 - Connection socket 51H for power supply between the control head and cooling underpart 7 - Mains connecting lead 1 - Cooling coil connections 2 - Pump connection: outflow and return (as standard only with E 4 S and ET 15 S) 3 - Four feet 1 - Mains connecting lead 2 - Rating label 3 - Bath draining tap 4 - Bath drain point

Heating thermostat from 20 to 100°C, with LCD display and simple programming functions LAUDA ECO sta (more)nds out for its range of features and ease of use. ECO thermostats are available in Silver (LCD display; simple programming) and Gold (TFT color display; complex programming) models, equipped with a mini USB interface as standard. A LAUDA innovation is the pressure flow controller located on the front of the head. This means that flow regulation between inside and outside is possible even during operation. - Monochrome LCD graphic display for simultaneous indication of actual and set values - Transparent polycarbonate bath up to 100°C - The circulation pump can be adjusted to six levels - Integrated programmer: 1 program with max. 20 segments - Fully electronic continuous regulator with PID action - Additional key Tmax for overtemperature protection - The most powerful units are equipped with the energy-saving LAUDA SmartCool system - Variants in 230V; the 50 Hz are also available with natural refrigerants - Convenient operation with softkey cursor - Safety class III for operation with flammable and non-flammable liquids. - mini-USB interface - Pump connections with 13mm plastic nipples as standard LAUDA tank thermostats are equipped as standard with a cooling coil. The E 4 model is also equipped with a lid for the bowl and connections for external applications. A drain cock on the rear side makes changing the heat transfer liquid easy and safe. Graph of heating performance of ECO Silver immersion thermostats with polycarbonate bath. Performance graph of the pump pressing on the six levels.

Heating thermostat from 20 to 200°C, with LCD display and simple programming functions LAUDA ECO sta (more)nds out for its range of features and ease of use. ECO thermostats are available in Silver (LCD display; simple programming) and Gold (TFT color display; complex programming) models, equipped with a mini USB interface as standard. A LAUDA innovation is the pressure flow controller located on the front of the head. This means that flow regulation between inside and outside is possible even during operation. - Monochrome LCD graphic display for simultaneous indication of actual and set values - The circulation pump can be adjusted to six levels - Integrated programmer: 1 program with max. 20 segments - Fully electronic continuous regulator with PID action - Additional key Tmax for overtemperature protection - The ECO heating thermostat line includes transparent baths up to 100°C and stainless steel up to 200°C - The most powerful units are equipped with the energy-saving LAUDA SmartCool system - Variants in 230V; the 50 Hz are also available with natural refrigerants - Convenient operation with softkey cursor - Safety class III for operation with flammable and non-flammable liquids. - mini-USB interface - Pump connections with 13mm plastic nipples as standard LAUDA tank thermostats are equipped as standard with a cooling coil. The E 4 model is also equipped with a lid for the bowl and connections for external applications. A drain cock on the rear side makes changing the heat transfer liquid easy and safe. Grafico delle prestazioni di riscaldamento dei termostati di immersione ECO Silver con vasca in acciaio inox. Performance graph of the pump pressing on the six levels. TECHNICAL VISUALIZATION Display 1 - Status display 2 - Display of the internal or external temperature value (T-int or T-ext) 3 - Soft-key bar Control panel 4 - Soft keys, left and right 5 - Enter key 6 - Cursor keys for Up, Down, Left and Right. 7 - T max key: display and adjustment of the overtemperature switch-off point 1 - USB interface 2 - Upper module receptacle approx. 51 mm x 27 mm for analog, RS 232/485 module, Profibus module and contact module 3 - Lower module receptacle approx. 51 mm x 17 mm for Pt100/LiBus module 4 - Connection socket 75S for control cable of cooling underpart for RE 1050 S 5 - Rating label 6 - Connection socket 51H for power supply between the control head and cooling underpart 7 - Mains connecting lead 1 - Cooling coil connections 2 - Pump connection: outflow and return (as standard only with E 4 S and ET 15 S) 3 - Four feet 1 - Mains connecting lead 2 - Rating label 3 - Bath draining tap 4 - Bath drain point

Heating thermostat from 20 to 200°C, with LCD display and simple programming functions LAUDA ECO sta (more)nds out for its range of features and ease of use. ECO thermostats are available in Silver (LCD display; simple programming) and Gold (TFT color display; complex programming) models, equipped with a mini USB interface as standard. A LAUDA innovation is the pressure flow controller located on the front of the head. This means that flow regulation between inside and outside is possible even during operation. - Monochrome LCD graphic display for simultaneous indication of actual and set values - The circulation pump can be adjusted to six levels - Integrated programmer: 1 program with max. 20 segments - Fully electronic continuous regulator with PID action - Additional key Tmax for overtemperature protection - The ECO heating thermostat line includes transparent baths up to 100°C and stainless steel up to 200°C - The most powerful units are equipped with the energy-saving LAUDA SmartCool system - Variants in 230V; the 50 Hz are also available with natural refrigerants - Convenient operation with softkey cursor - Safety class III for operation with flammable and non-flammable liquids. - mini-USB interface - Pump connections with 13mm plastic nipples as standard LAUDA tank thermostats are equipped as standard with a cooling coil. The E 4 model is also equipped with a lid for the bowl and connections for external applications. A drain cock on the rear side makes changing the heat transfer liquid easy and safe. Grafico delle prestazioni di riscaldamento dei termostati di immersione ECO Silver con vasca in acciaio inox. Performance graph of the pump pressing on the six levels. TECHNICAL VISUALIZATION Display 1 - Status display 2 - Display of the internal or external temperature value (T-int or T-ext) 3 - Soft-key bar Control panel 4 - Soft keys, left and right 5 - Enter key 6 - Cursor keys for Up, Down, Left and Right. 7 - T max key: display and adjustment of the overtemperature switch-off point 1 - USB interface 2 - Upper module receptacle approx. 51 mm x 27 mm for analog, RS 232/485 module, Profibus module and contact module 3 - Lower module receptacle approx. 51 mm x 17 mm for Pt100/LiBus module 4 - Connection socket 75S for control cable of cooling underpart for RE 1050 S 5 - Rating label 6 - Connection socket 51H for power supply between the control head and cooling underpart 7 - Mains connecting lead 1 - Cooling coil connections 2 - Pump connection: outflow and return (as standard only with E 4 S and ET 15 S) 3 - Four feet 1 - Mains connecting lead 2 - Rating label 3 - Bath draining tap 4 - Bath drain point

Heating thermostat from 20 to 100°C, with LCD display and simple programming functions LAUDA ECO sta (more)nds out for its range of features and ease of use. ECO thermostats are available in Silver (LCD display; simple programming) and Gold (TFT color display; complex programming) models, equipped with a mini USB interface as standard. A LAUDA innovation is the pressure flow controller located on the front of the head. This means that flow regulation between inside and outside is possible even during operation. - Monochrome LCD graphic display for simultaneous indication of actual and set values - Transparent polycarbonate bath up to 100°C - The circulation pump can be adjusted to six levels - Integrated programmer: 1 program with max. 20 segments - Fully electronic continuous regulator with PID action - Additional key Tmax for overtemperature protection - The most powerful units are equipped with the energy-saving LAUDA SmartCool system - Variants in 230V; the 50 Hz are also available with natural refrigerants - Convenient operation with softkey cursor - Safety class III for operation with flammable and non-flammable liquids. - mini-USB interface - Pump connections with 13mm plastic nipples as standard LAUDA tank thermostats are equipped as standard with a cooling coil. The E 4 model is also equipped with a lid for the bowl and connections for external applications. A drain cock on the rear side makes changing the heat transfer liquid easy and safe. Graph of heating performance of ECO Silver immersion thermostats with polycarbonate bath. Performance graph of the pump pressing on the six levels.

Heating thermostat from 20 to 200°C, with TFT color display and complete programming functions LAUDA (more) ECO stands out for its range of features and ease of use. ECO thermostats are available in Silver (LCD display; simple programming) and Gold (TFT color display; complex programming) models, equipped with a mini USB interface as standard. A LAUDA innovation is the pressure flow controller located on the front of the head. This means that flow regulation between inside and outside is possible even during operation. - The circulation pump can be adjusted to six levels - Programmer with 150 temperature/time segments separable into 5 programs - Fully electronic continuous regulator with PID action - Additional key Tmax for overtemperature protection - The ECO heating thermostat line includes transparent baths up to 100°C and stainless steel up to 200°C - The most powerful units are equipped with the energy-saving LAUDA SmartCool system - Variants in 230V; the 50 Hz are also available with natural refrigerants - Temperature graphs on display - Convenient operation with softkey cursor - Safety class III for operation with flammable and non-flammable liquids. - mini-USB interface LAUDA tank thermostats are equipped as standard with a cooling coil. The E 4 model is also equipped with a lid for the bowl and connections for external applications. A drain cock on the rear side makes changing the heat transfer liquid easy and safe. Heating performance graph of Gold immersion thermostats with stainless steel tank. Performance graph of the pump pressing on the six levels.

Heating thermostat Alpha: from 25 to 100°C LAUDA Alpha is the most affordable choice when it comes t (more)o high quality LAUDA thermostats. These reliable and easy-to-use thermostats, with features reduced to the essentials, can be operated with non-flammable liquids and are suitable for both indoor and outdoor temperature control tasks. The cooling system, the pump circulation set and the bath cover set are available as accessories for all thermostats. With the water cooling system, the thermostat can be used for operations from 20° to 100°C. Low-level and overtemperature protection for operation with non-flammable liquids. Qualitative characteristics - Simple and intuitive menu navigation with three-button operation via a large, clearly legible LED display - Integrated timer function to allow automatic shutdown of the device - Under / over temperature protection for operation with non-flammable liquids The back of the Alpha thermostat: clamp, power supply and reset button. Simple control with three buttons and three indicator lights: active heating, active cooling and alarm light. Can be used with any bath vessel up to 30 mm thick with the included screw clamp. Graph of pump characteristics in Alpha Lauda models. Graph of heating curves of Aplha Lauda models. TECHNICAL VISUALIZATION a - Control head with clamp b - Bath vessel c - Four mounting feet 1 - Temperature controller with four segment LED display 2 - Heater active (yellow LED is lit) Cooler active (blue LED is lit) Error signal (red LED is flashing) 3 - Menu functions, select and Enter keys 4 - Mains switch 5 - Screw clamp 6 - Tubular heater 7 - Temperature probe Pt100 8 - Pump outflow with pump outflow reducer 1 - Reset button (press only if the display shows SAFE ) 2 - Cooler cable 3 - Rating label 4 - Mains cable 5 - Screw clamp

Heating thermostat from 20 to 200°C, with TFT color display and complete programming functions LAUDA (more) ECO stands out for its range of features and ease of use. ECO thermostats are available in Silver (LCD display; simple programming) and Gold (TFT color display; complex programming) models, equipped with a mini USB interface as standard. A LAUDA innovation is the pressure flow controller located on the front of the head. This means that flow regulation between inside and outside is possible even during operation. - The circulation pump can be adjusted to six levels - Programmer with 150 temperature/time segments separable into 5 programs - Fully electronic continuous regulator with PID action - Additional key Tmax for overtemperature protection - The ECO heating thermostat line includes transparent baths up to 100°C and stainless steel up to 200°C - The most powerful units are equipped with the energy-saving LAUDA SmartCool system - Variants in 230V; the 50 Hz are also available with natural refrigerants - Temperature graphs on display - Convenient operation with softkey cursor - Safety class III for operation with flammable and non-flammable liquids. - mini-USB interface LAUDA tank thermostats are equipped as standard with a cooling coil. The E 4 model is also equipped with a lid for the bowl and connections for external applications. A drain cock on the rear side makes changing the heat transfer liquid easy and safe. Heating performance graph of Gold immersion thermostats with stainless steel tank. Performance graph of the pump pressing on the six levels.

Heating thermostat from 20 to 200°C, with TFT color display and complete programming functions LAUDA (more) ECO stands out for its range of features and ease of use. ECO thermostats are available in Silver (LCD display; simple programming) and Gold (TFT color display; complex programming) models, equipped with a mini USB interface as standard. A LAUDA innovation is the pressure flow controller located on the front of the head. This means that flow regulation between inside and outside is possible even during operation. - The circulation pump can be adjusted to six levels - Programmer with 150 temperature/time segments separable into 5 programs - Fully electronic continuous regulator with PID action - Additional key Tmax for overtemperature protection - The ECO heating thermostat line includes transparent baths up to 100°C and stainless steel up to 200°C - The most powerful units are equipped with the energy-saving LAUDA SmartCool system - Variants in 230V; the 50 Hz are also available with natural refrigerants - Temperature graphs on display - Convenient operation with softkey cursor - Safety class III for operation with flammable and non-flammable liquids. - mini-USB interface LAUDA tank thermostats are equipped as standard with a cooling coil. The E 4 model is also equipped with a lid for the bowl and connections for external applications. A drain cock on the rear side makes changing the heat transfer liquid easy and safe. Heating performance graph of Gold immersion thermostats with stainless steel tank. Performance graph of the pump pressing on the six levels.

LAUDA ECO Heating thermostat LAUDA ECO stands out for its range of features and ease of use. ECO the (more)rmostats are available in Silver (LCD display; simple programming) and Gold (TFT color display; complex programming) models, equipped with a mini USB interface as standard. A LAUDA innovation is the pressure flow controller located on the front of the head. This means that the regulation of the flow between inside and outside is also possible during operation. - The circulation pump can be adjusted on six levels - The ECO heating thermostats line includes transparent baths up to 100°C and stainless steel baths up to 200°C - The most powerful units are equipped with the energy-saving LAUDA SmartCool system - Variants in 230 V; 50 Hz are also available with natural refrigerants - Temperature graphs on display - Convenient operation with softkey cursor - Mini USB interface LAUDA thermostats with tub are equipped with a cooling coil as standard. A drain cock on the rear makes changing the heat transfer fluid easy and safe. Heating performance graph of Gold immersion thermostats with stainless steel tank. Performance graph of the pressure pump on the six levels.

Heating thermostat from 40°C to 250°C for professional thermostats LAUDA PRO is a cutting-edge produ (more)ct line, designed to be the laboratory tools of the future. A significant innovation was the division between thermostats dedicated to internal applications and those dedicated to external applications. Then, the choice of offering products with tanks of a few liters allows the operator to quickly reach the desired temperature. New criteria have also been adopted for the design of the control panels. Two operational approaches are available, Basic, with OLED screen and essential but professional features, and Command Touch (named 'C'), the ultimate in the LAUDA experience, with touch display, graphic displays and numerous functions. In either case, the control panel can be removed from the thermostat for maximum operational flexibility and a noticeable decrease in instrument height. All thermostats are equipped with an Ethernet, USB interface and a Pt100 connection as standard. Cooling thermostats are also available with natural refrigerants. In addition, as standard, they are equipped with a cooling system that allows a lowering of the thermostat temperature with water. Notable features - Removable control panel for remote control - Stainless steel bathtubs (insulated with handles and drain tap) - 8-stage LAUDA Vario internal pump - Ethernet interface, USB and Pt100 connection as standard - Drain cock on the front of the device Accessories included Tank covers, pipe fittings with screw caps for the cooling coil Graph of heating performance of PRO P LAUDA thermostats.

Heating thermostat from 35°C to 250°C for professional thermostats LAUDA PRO is a cutting-edge produ (more)ct line, designed to be the laboratory tools of the future. A significant innovation was the division between thermostats dedicated to internal applications and those dedicated to external applications. Then, the choice of offering products with tanks of a few liters allows the operator to quickly reach the desired temperature. New criteria have also been adopted for the design of the control panels. Two operational approaches are available, Basic, with OLED screen and essential but professional features, and Command Touch (named 'C'), the ultimate in the LAUDA experience, with touch display, graphic displays and numerous functions. In either case, the control panel can be removed from the thermostat for maximum operational flexibility and a noticeable decrease in instrument height. All thermostats are equipped with an Ethernet, USB interface and a Pt100 connection as standard. Cooling thermostats are also available with natural refrigerants. In addition, as standard, they are equipped with a cooling system that allows a lowering of the thermostat temperature with water. Notable features - Removable control panel for remote control - Stainless steel bathtubs (insulated with handles and drain tap) - 8-stage LAUDA Vario internal pump - Ethernet interface, USB and Pt100 connection as standard - Drain cock on the front of the device Accessories included Tank covers, pipe fittings with screw caps for the cooling coil Graph of heating performance of PRO P LAUDA thermostats.

Heating thermostat from 30°C to 250°C for professional thermostats LAUDA PRO is a cutting-edge produ (more)ct line, designed to be the laboratory tools of the future. A significant innovation was the division between thermostats dedicated to internal applications and those dedicated to external applications. Then, the choice of offering products with tanks of a few liters allows the operator to quickly reach the desired temperature. New criteria have also been adopted for the design of the control panels. Two operational approaches are available, Basic, with OLED screen and essential but professional features, and Command Touch (named 'C'), the ultimate in the LAUDA experience, with touch display, graphic displays and numerous functions. In either case, the control panel can be removed from the thermostat for maximum operational flexibility and a noticeable decrease in instrument height. All thermostats are equipped with an Ethernet, USB interface and a Pt100 connection as standard. Cooling thermostats are also available with natural refrigerants. In addition, as standard, they are equipped with a cooling system that allows a lowering of the thermostat temperature with water. Notable features - Removable control panel for remote control - Stainless steel bathtubs (insulated with handles and drain tap) - 8-stage LAUDA Vario internal pump - Ethernet interface, USB and Pt100 connection as standard - Drain cock on the front of the device Accessories included Tank covers, pipe fittings with screw caps for the cooling coil Graph of heating performance of PRO P LAUDA thermostats.

LAUDA Proline immersion thermostat The LAUDA Proline bridge thermostats with vario flex pump are exc (more)ellent for thermostating in any tank. The PB models have a pressure / suction pump and are used in tanks of 200 mm. While the PBDs are equipped with pumps with more powerful pressure and used in tanks of 320 mm deep. Also available are a telescopic rod for tubs with a width of 310 to 550 mm, an ergonomic handle and attachments for side pumps. The LAUDA Proline bridge thermostats are available with two different control panels. The Master version (PB, PBD) is designed for all applications where the parameters are not changed very often. Models with the removable Command operating unit (PB C; PBD C) offer a graphic LCD screen for high ease of use and optimum functionality. The 'D' versions, 'PBD' and 'PBD C' models, are equipped with a max 1.1 bar pressure pump only, with a max. (pressure) of 32 L/min. The 'PB' and 'PB C' models are equipped with pressure and suction pumps, mac 0.7 bar and 0.4 bar respectively, with a max. (pressure) of 25 L/min. Notable features - PowerAdapt system for optimal adaptation of the max. Heat output. without interfering with the mains power supply - Low level protection and adjustable overtemperature protection with audible alarm. Levels measured with float Accessories included Fittings for pump connection, telescopic rod Specific characteristics of the Proline PB model - For tanks of 200 mm deep - Master control panel; calibration point, timer, under / over temperature alarms, digital indicators - Tank volume max. 80 L - Water-cooled temperature range from 20°C to 300°C - Operating temperature range from -30°C to 300°C - Pump connectors M16 x 1 - Fitting 13 Ø

Heating thermostat Alpha: from 25 to 100°C LAUDA Alpha is the most affordable choice when it comes t (more)o high quality LAUDA thermostats. These reliable and easy-to-use thermostats, with features reduced to the essentials, can be operated with non-flammable liquids and are suitable for both indoor and outdoor temperature control tasks. The cooling system, the pump circulation set and the bath cover set are available as accessories for all thermostats. With the water cooling system, the thermostat can be used for operations from 20° to 100°C. Low-level and overtemperature protection for operation with non-flammable liquids. Qualitative characteristics - Simple and intuitive menu navigation with three-button operation via a large, clearly legible LED display - Integrated timer function to allow automatic shutdown of the device - Under / over temperature protection for operation with non-flammable liquids The back of the Alpha thermostat: clamp, power supply and reset button. Simple control with three buttons and three indicator lights: active heating, active cooling and alarm light. Can be used with any bath vessel up to 30 mm thick with the included screw clamp. Graph of pump characteristics in Alpha Lauda models. Graph of heating curves of Aplha Lauda models. TECHNICAL VISUALIZATION a - Control head with clamp b - Bath vessel c - Four mounting feet 1 - Temperature controller with four segment LED display 2 - Heater active (yellow LED is lit) Cooler active (blue LED is lit) Error signal (red LED is flashing) 3 - Menu functions, select and Enter keys 4 - Mains switch 5 - Screw clamp 6 - Tubular heater 7 - Temperature probe Pt100 8 - Pump outflow with pump outflow reducer 1 - Reset button (press only if the display shows SAFE ) 2 - Cooler cable 3 - Rating label 4 - Mains cable 5 - Screw clamp

Heating thermostat from 20 to 100°C, with TFT color display and complete programming functions LAUDA (more) ECO stands out for its range of features and ease of use. ECO thermostats are available in Silver (LCD display; simple programming) and Gold (TFT color display; complex programming) models, equipped with a mini USB interface as standard. A LAUDA innovation is the pressure flow controller located on the front of the head. This means that flow regulation between inside and outside is possible even during operation. - The circulation pump can be adjusted to six levels - Programmer with 150 temperature/time segments separable into 5 programs - Fully electronic continuous regulator with PID action - Additional key Tmax for overtemperature protection - The ECO heating thermostat line includes transparent baths up to 100°C and stainless steel up to 200°C - The most powerful units are equipped with the energy-saving LAUDA SmartCool system - Variants in 230V; the 50 Hz are also available with natural refrigerants - Temperature graphs on display - Convenient operation with softkey cursor - Safety class III for operation with flammable and non-flammable liquids. - mini-USB interface LAUDA tank thermostats are equipped as standard with a cooling coil. A drain cock on the rear side makes changing the heat transfer liquid easy and safe. . Graph of the heating performance of the Silver and Gold thermostats in the models with transparent polycarbonate tank. Performance graph of the pump pressing on the six levels.

Refrigeration thermostat KT 08-22 / -42 FRYKA Main features: - Electronic temperature control with L (more)ED display - Interchangeable circulation pump - Refrigeration unit: silent, fully hermetic, sealed, air cooled, low maintenance - Stainless steel tank - Easy to clean: Interior without frames, rounded corners - No electronic controls exposed to vapors - Ram protection ring - Four mounting clamps (M8 threads) at the corners of the tub for attaching support rods - Bathtubs in 18/10 stainless steel

Heating thermostat from 20 to 100°C, with TFT color display and complete programming functions LAUDA (more) ECO stands out for its range of features and ease of use. ECO thermostats are available in Silver (LCD display; simple programming) and Gold (TFT color display; complex programming) models, equipped with a mini USB interface as standard. A LAUDA innovation is the pressure flow controller located on the front of the head. This means that flow regulation between inside and outside is possible even during operation. - The circulation pump can be adjusted to six levels - Programmer with 150 temperature/time segments separable into 5 programs - Fully electronic continuous regulator with PID action - Additional key Tmax for overtemperature protection - The ECO heating thermostat line includes transparent baths up to 100°C and stainless steel up to 200°C - The most powerful units are equipped with the energy-saving LAUDA SmartCool system - Variants in 230V; the 50 Hz are also available with natural refrigerants - Temperature graphs on display - Convenient operation with softkey cursor - Safety class III for operation with flammable and non-flammable liquids. - mini-USB interface LAUDA tank thermostats are equipped as standard with a cooling coil. A drain cock on the rear side makes changing the heat transfer liquid easy and safe. . Graph of the heating performance of the Silver and Gold thermostats in the models with transparent polycarbonate tank. Performance graph of the pump pressing on the six levels.

Heating thermostat from 20 to 100°C, with TFT color display and complete programming functions LAUDA (more) ECO stands out for its range of features and ease of use. ECO thermostats are available in Silver (LCD display; simple programming) and Gold (TFT color display; complex programming) models, equipped with a mini USB interface as standard. A LAUDA innovation is the pressure flow controller located on the front of the head. This means that flow regulation between inside and outside is possible even during operation. - The circulation pump can be adjusted to six levels - Programmer with 150 temperature/time segments separable into 5 programs - Fully electronic continuous regulator with PID action - Additional key Tmax for overtemperature protection - The ECO heating thermostat line includes transparent baths up to 100°C and stainless steel up to 200°C - The most powerful units are equipped with the energy-saving LAUDA SmartCool system - Variants in 230V; the 50 Hz are also available with natural refrigerants - Temperature graphs on display - Convenient operation with softkey cursor - Safety class III for operation with flammable and non-flammable liquids. - mini-USB interface LAUDA tank thermostats are equipped as standard with a cooling coil. A drain cock on the rear side makes changing the heat transfer liquid easy and safe. . Graph of the heating performance of the Silver and Gold thermostats in the models with transparent polycarbonate tank. Performance graph of the pump pressing on the six levels.

LAUDA Proline immersion thermostat The LAUDA Proline bridge thermostats with vario flex pump are exc (more)ellent for thermostating in any tank. The PB models have a pressure / suction pump and are used in tanks of 200 mm. While the PBDs are equipped with pumps with more powerful pressure and used in tanks of 320 mm deep. Also available are a telescopic rod for tubs with a width of 310 to 550 mm, an ergonomic handle and attachments for side pumps. The LAUDA Proline bridge thermostats are available with two different control panels. The Master version (PB, PBD) is designed for all applications where the parameters are not changed very often. Models with the removable Command operating unit (PB C; PBD C) offer a graphic LCD screen for high ease of use and optimum functionality. Notable features - PowerAdapt system for optimal adaptation of the max. Heat output. without interfering with the mains power supply - Low level protection and adjustable overtemperature protection with audible alarm. Levels measured with float Accessories included Fittings for pump connection, telescopic rod Specific characteristics of the Proline PBD model - For tanks of 320 mm deep - Master control panel; calibration point, timer, under / over temperature alarms, digital indicators - Pump pressure mx. 1.1 bar - Tank volume max. 80 L - Water-cooled temperature range from 20°C to 300°C - Operating temperature range from -30°C to 300°C - Pump connectors M16 x 1 - Fitting 13 Ø

Heating thermostat from 35°C to 250°C for professional thermostats LAUDA PRO is a cutting-edge produ (more)ct line, designed to be the laboratory tools of the future. A significant innovation was the division between thermostats dedicated to internal applications and those dedicated to external applications. Then, the choice of offering products with tanks of a few liters allows the operator to quickly reach the desired temperature. New criteria have also been adopted for the design of the control panels. Two operational approaches are available, Basic, with OLED screen and essential but professional features, and Command Touch (named 'C'), the ultimate in the LAUDA experience, with touch display, graphic displays and numerous functions. In either case, the control panel can be removed from the thermostat for maximum operational flexibility and a noticeable decrease in instrument height. All thermostats are equipped with an Ethernet, USB interface and a Pt100 connection as standard. Cooling thermostats are also available with natural refrigerants. In addition, as standard, they are equipped with a cooling system that allows a lowering of the thermostat temperature with water. Notable features - Removable control panel for remote control - Stainless steel bathtubs (insulated with handles and drain tap) - 8-stage LAUDA Vario internal pump - Ethernet interface, USB and Pt100 connection as standard - Drain cock on the front of the device Accessories included Tank covers, pipe fittings with screw caps for the cooling coil Graph of heating performance of PRO P LAUDA thermostats.

Proline heating thermostat with tank Proline clear-view LAUDA thermostats have been designed for dir (more)ect observation of objects. They are ideal for use with LAUDA Scientific PVS or iVisc automatic viscometer, as the necessary temperature stability for precise viscosity determination is ensured over the entire temperature range. In addition, the two-chamber principle always guarantees a constant liquid level in the measuring chamber, regardless of the volume and temperature of the medium. PVL models with five layers of insulating glass are suitable for low temperature measurements down to -40° or -60°C when a low temperature chiller or thermostat is connected.These thermostats are available with two different control units. The Master version is designed for all applications where the parameters are not changed very often. The removable Command operating unit (PV C models) incorporates a graphic LCD screen for high operating convenience and a programmer. Notable features - LAUDA Vario Flex pump (pressure pump) with eight selectable power levels - Cooling coil fitted as standard with connection for additional cooler Accessories included Fittings for pump connection, cooling coil Specific features of the Proline PV 15 model - Tank volume min. 11 L - Tank volume max. 15 L - Tank opening 230 x 135 mm - Bowl depth 320 mm - Usable depth 285 mm - Upper height of the tank 390 mm - Master control panel; calibration point, timer, under / over temperature alarms, digital indicators - Pump pressure mx. 1.1 bar - Water-cooled temperature range from 20°C to 230°C - Operating temperature range from -30°C to 230°C - Pump connectors M16 x 1 - Fitting 13 Ø

LAUDA Proline immersion thermostat The LAUDA Proline bridge thermostats with vario flex pump are exc (more)ellent for thermostating in any tank. The PB models have a pressure / suction pump and are used in tanks of 200 mm. While the PBDs are equipped with pumps with more powerful pressure and used in tanks of 320 mm deep. Also available are a telescopic rod for tubs with a width of 310 to 550 mm, an ergonomic handle and attachments for side pumps. The LAUDA Proline bridge thermostats are available with two different control panels. The Master version (PB, PBD) is designed for all applications where the parameters are not changed very often. Models with the removable Command operating unit (PB C; PBD C) offer a graphic LCD screen for high ease of use and optimum functionality. Notable features - PowerAdapt system for optimal adaptation of the max. Heat output. without interfering with the mains power supply - Low level protection and adjustable overtemperature protection with audible alarm. Levels measured with float Accessories included Fittings for pump connection, telescopic rod Specific characteristics of the Proline PB C model - For tanks of 200 mm deep - State-of-the-art Command control panel, removable, for remote use; LCD display with the most advanced feature set in the LAUDA range - Tank volume max. 80 L - Water-cooled temperature range from 20°C to 300°C - Operating temperature range from -30°C to 300°C - Pump connectors M16 x 1 - Fitting 13 Ø

Heating thermostat Alpha: from 25 to 100°C LAUDA Alpha is the most affordable choice when it comes t (more)o high quality LAUDA thermostats. These reliable and easy-to-use thermostats, with features reduced to the essentials, can be operated with non-flammable liquids and are suitable for both indoor and outdoor temperature control tasks. The cooling system, the pump circulation set and the bath cover set are available as accessories for all thermostats. With the water cooling system, the thermostat can be used for operations from 20° to 100°C. Low-level and overtemperature protection for operation with non-flammable liquids. Qualitative characteristics - Simple and intuitive menu navigation with three-button operation via a large, clearly legible LED display - Integrated timer function to allow automatic shutdown of the device - Under / over temperature protection for operation with non-flammable liquids The back of the Alpha thermostat: clamp, power supply and reset button. Simple control with three buttons and three indicator lights: active heating, active cooling and alarm light. Can be used with any bath vessel up to 30 mm thick with the included screw clamp. Graph of pump characteristics in Alpha Lauda models. Graph of heating curves of Aplha Lauda models. TECHNICAL VISUALIZATION a - Control head with clamp b - Bath vessel c - Four mounting feet 1 - Temperature controller with four segment LED display 2 - Heater active (yellow LED is lit) Cooler active (blue LED is lit) Error signal (red LED is flashing) 3 - Menu functions, select and Enter keys 4 - Mains switch 5 - Screw clamp 6 - Tubular heater 7 - Temperature probe Pt100 8 - Pump outflow with pump outflow reducer 1 - Reset button (press only if the display shows SAFE ) 2 - Cooler cable 3 - Rating label 4 - Mains cable 5 - Screw clamp

Heating thermostat from 20 to 200°C, with TFT color display and complete programming functions LAUDA (more) ECO stands out for its range of features and ease of use. ECO thermostats are available in Silver (LCD display; simple programming) and Gold (TFT color display; complex programming) models, equipped with a mini USB interface as standard. A LAUDA innovation is the pressure flow controller located on the front of the head. This means that flow regulation between inside and outside is possible even during operation. - The circulation pump can be adjusted to six levels - Programmer with 150 temperature/time segments separable into 5 programs - Fully electronic continuous regulator with PID action - Additional key Tmax for overtemperature protection - The ECO heating thermostat line includes transparent baths up to 100°C and stainless steel up to 200°C - The most powerful units are equipped with the energy-saving LAUDA SmartCool system - Variants in 230V; the 50 Hz are also available with natural refrigerants - Temperature graphs on display - Convenient operation with softkey cursor - Safety class III for operation with flammable and non-flammable liquids. - mini-USB interface LAUDA tank thermostats are equipped as standard with a cooling coil. The E 4 model is also equipped with a lid for the bowl and connections for external applications. A drain cock on the rear side makes changing the heat transfer liquid easy and safe. Heating performance graph of Gold immersion thermostats with stainless steel tank. Performance graph of the pump pressing on the six levels.

Proline heating thermostat with tank Proline clear-view LAUDA thermostats have been designed for dir (more)ect observation of objects. They are ideal for use with LAUDA Scientific PVS or iVisc automatic viscometer, as the necessary temperature stability for precise viscosity determination is ensured over the entire temperature range. In addition, the two-chamber principle always guarantees a constant liquid level in the measuring chamber, regardless of the volume and temperature of the medium. PVL models with five layers of insulating glass are suitable for low temperature measurements down to -40° or -60°C when a low temperature chiller or thermostat is connected. These thermostats are available with two different control units. The Master version is designed for all applications where the parameters are not changed very often. The removable Command operating unit (PV C models) incorporates a graphic LCD screen for high operating convenience and a programmer. Notable features - LAUDA Vario Flex pump (pressure pump) with eight selectable power levels - Cooling coil fitted as standard with connection for additional cooler Accessories included Fittings for pump connection, cooling coil Specific features of the Proline PVL 15 C model - Tank volume min. 11 L - Tank volume max. 15 L - Tank opening 230 x 135 mm - Bowl depth 320 mm - Usable depth 285 mm - Upper height of the tank 390 mm - State-of-the-art Command control panel, removable, for remote use; LCD display with the most advanced feature set in the LAUDA range - Pump pressure mx. 1.1 bar - Water-cooled temperature range from 20°C to 100°C - Operating temperature range from -60°C to 100°C - Pump connectors M16 x 1 - Fitting 13 Ø

Heating thermostat from 20 to 100°C, with TFT color display and complete programming functions LAUDA (more) ECO stands out for its range of features and ease of use. ECO thermostats are available in Silver (LCD display; simple programming) and Gold (TFT color display; complex programming) models, equipped with a mini USB interface as standard. A LAUDA innovation is the pressure flow controller located on the front of the head. This means that flow regulation between inside and outside is possible even during operation. - The circulation pump can be adjusted to six levels - Programmer with 150 temperature/time segments separable into 5 programs - Fully electronic continuous regulator with PID action - Additional key Tmax for overtemperature protection - The ECO heating thermostat line includes transparent baths up to 100°C and stainless steel up to 200°C - The most powerful units are equipped with the energy-saving LAUDA SmartCool system - Variants in 230V; the 50 Hz are also available with natural refrigerants - Temperature graphs on display - Convenient operation with softkey cursor - Safety class III for operation with flammable and non-flammable liquids. - mini-USB interface LAUDA tank thermostats are equipped as standard with a cooling coil. A drain cock on the rear side makes changing the heat transfer liquid easy and safe. . Graph of the heating performance of the Silver and Gold thermostats in the models with transparent polycarbonate tank. Performance graph of the pump pressing on the six levels.

Heating thermostat from 30°C to 250°C for professional thermostats LAUDA PRO is a cutting-edge produ (more)ct line, designed to be the laboratory tools of the future. A significant innovation was the division between thermostats dedicated to internal applications and those dedicated to external applications. Then, the choice of offering products with tanks of a few liters allows the operator to quickly reach the desired temperature. New criteria have also been adopted for the design of the control panels. Two operational approaches are available, Basic, with OLED screen and essential but professional features, and Command Touch (named 'C'), the ultimate in the LAUDA experience, with touch display, graphic displays and numerous functions. In either case, the control panel can be removed from the thermostat for maximum operational flexibility and a noticeable decrease in instrument height. All thermostats are equipped with an Ethernet, USB interface and a Pt100 connection as standard. Cooling thermostats are also available with natural refrigerants. In addition, as standard, they are equipped with a cooling system that allows a lowering of the thermostat temperature with water. Notable features - Removable control panel for remote control - Stainless steel bathtubs (insulated with handles and drain tap) - 8-stage LAUDA Vario internal pump - Ethernet interface, USB and Pt100 connection as standard - Drain cock on the front of the device Accessories included Tank covers, pipe fittings with screw caps for the cooling coil Graph of heating performance of PRO P LAUDA thermostats.
