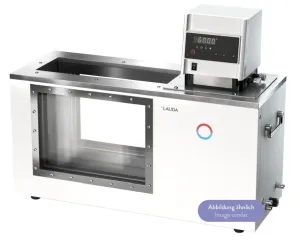

LAUDA Proline PV 15 heating thermostat

Jointlab srl€8,536.00
(€10,157.84 incl. VAT* )* - if applicable
item image

Description by the supplier

Sophisticated Proline Heating Thermostat with Integrated Tank


Featuring innovative design, the Proline transparent LAUDA thermostats offer a comprehensive solution for straightforward observation of specimen. Specifically designed to couple with LAUDA Scientific PVS or iVisc automatic viscometers, these thermostats secure temperature stability across the entire spectrum, ensuring accurate determinations of viscosity. Utilizing a dual-chambered system, the device maintains a constant measuring chamber liquid level independent of medium volume and temperature shifts. Proline PVL models are engineered with quintuple layered insulating glass, suitable for low-temperature measurements reaching -40° or -60°C when connected with a low-temperature chiller or thermostat.


Two distinct control units are available for these thermostats. The Master variant caters to operations that rarely require parameter adjustments, while the removable Command model (PV C models) includes a visually vibrant LCD panel providing superior user convenience and programming capabilities.


Highlighted Features:


- Integrated LAUDA Vario Flex pump (pressure pump) with eight variable power ranges

- Standard fitted cooling coil with additional cooler connection capability


Included Accessories:

- Pump connection fittings and cooling coil


Distinguishing Features of the Proline PV 15 Model:


- Tank capacity ranging from minimum 11 L to maximum 15 L

- Tank access dimensions of 230 x 135 mm

- Bowl depth of 320 mm with functional depth of 285 mm

- Tank upper elevation of 390 mm

- Master control panel consisting of a calibration point, timer, over/under temperature alert systems, and digital displays

- Maximum pump pressure of 1.1 bar

- Anticipated water-cooled temperature range from 20°C to 230°C

- Operational temperature span from -30°C to 230°C

- Pump connectors measurements, M16 x 1

- Fitting diameter of 13 Ø.

Product details
Temperature °C30...230
External dimensions mm L x P x A506x282x590
Pump pressure max. bar0.8 bar
Pump delivery max. l/min.32 L/min
Tank volume l15 L max.
Power W3.6 Kw
SeriesProline
Weight kg26
Supply230 V / 50-60 Hz
