LAUDA Proline Immersion Thermostat
The LAUDA Proline bridge thermostats, equipped with a flexible Vario Flex pump, deliver impeccable performance in thermostating tasks. The PB models, integrated with both pressure and suction pumps, are suitable for 200 mm deep tanks. Their counterparts, the PBD versions, stand apart with their high-pressure pumps, making them ideal for 320 mm deep tanks.

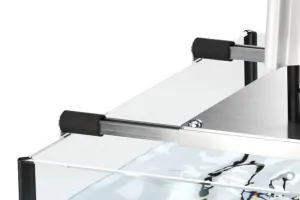

There is an assortment of supplementary features, including a telescopic rod suitable for tubs of width ranging from 310 mm to 550 mm, a comfortable handle design, and side pump attachments.

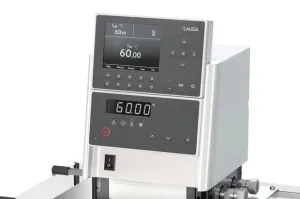

The LAUDA Proline bridge thermostats come with two distinct control panels for diverse applications. The Master version includes PB and PBD models engineered for settings where parameters are infrequently adjusted. In contrast, the models with the detachable Command operating unit (PB C, PBD C) sport a user-friendly graphic LCD screen that ensures unmatched ease of use and optimum functionality.
The 'PBD' and 'PBD C' versions feature a high-pressure pump with a maximum capacity of 1.1 bar and a maximum pressure rate of 32 L/min. Meanwhile, the 'PB' and 'PB C' models come with incorporated pressure and suction pumps, with 0.7 and 0.4 bar capacity respectively, reaching a maximum pressure level of 25 L/min.
Key Features
- PowerAdapt system to flawlessly adjust maximum heat output without interfering with the mains power supply
- Low level and adjustable over-temperature protection with a sound alert. The levels are measured using a float mechanism.
Included Accessories
Connections for the pump and a telescopic rod
Specific Features of the Proline PBD C model
- Designed for 320 mm deep tanks
- Comes with a state-of-the-art, detachable Command control panel, which can be used remotely
- Clear LCD display, showcasing the most advanced features within the LAUDA range
- Pump pressure reaches a maximum of 1.1 bar
- Maximum tank volume is 80 Litres
- Water-cooled temperature range varies between 20°C to 300°C
- Operating temperature range from -30°C to 300°C
- M16 x 1 sized pump connectors and 13 Ø fittings.
Temperature °C | 30...300 |
External dimensions mm L x P x A | 320x185x576 |
Pump pressure max. bar | 1.1 bar |
Pump delivery max. l/min. | 32 L/min |
Tank volume l | 80 L max. |
Power W | 3.6 Kw |
Series | Proline |
Weight kg | 8 |
Supply | 230 V / 50-60 Hz |
