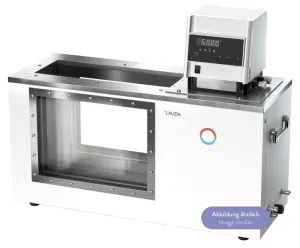

LAUDA Proline PVL 15 heating thermostat

Jointlab srl€11,088.00
(€13,194.72 incl. VAT* )* - if applicable
item image

Description by the supplier

Proline Heating Thermostat with Observational Tank


The Proline Thermostats with Clear-View LAUDA design allows for direct surveillance over objects. This synergizes optimally with LAUDA Scientific's PVS or iVisc viscometers, providing accurate viscosity measurements by maintaining unwavering temperature stability throughout all temperature ranges. Moreover, the innovative two-chamber approach ensures consistent liquid levels in the measuring chamber, irrespective of the medium's volume and temperature. Models with quintuple layers of insulating glass, such as the PVL models, accommodate low-temperature measurements as low as -40 or -60 degrees Celsius when paired with a low-temperature chiller or thermostat.


The thermostat comes equipped with two distinctive control units. The Master version is crafted to suit applications that do not require frequent parameter changes. The alternative Command operating unit in Proline PV C models includes a graphic LCD interface for optimal operational convenience and an integrated programmer.


Highlighted Features:


- LAUDA Vario Flex Pump with a selection of eight distinct power levels.

- Standard-fitted Cooling Coil with an additional cooler connection.


Accessories Supplied:

- Connection fittings for the pump and cooling coil.


Specific features of Proline's PVL 15 Model:


- Minimum allowable tank volume of 11 liters and a maximum allowable volume of 15 liters.

- Tank opening dimensions of 230 x 135 mm.

- A bowl depth of 320 mm and an effective depth of 285 mm.

- An upper tank height of 390 mm.

- Features a Master control panel, inclusive of calibration point, timers, under and over-temperature alarms, and digital indicators.

- A maximum pump pressure of 1.1 bar.

- Operational temperature range spans from -60°C to 100°C, with a water-cooled temperature range of 20°C to 100°C.

- M16 x 1 pump connectors.

- 13 Ø fitting.

Product details
Temperature °Cfrom 30°C to 100°C
External dimensions mm L x P x A506x282x590
Pump pressure max. bar0.8 bar
Pump delivery max. l/min.32 L/min
Tank volume l15 L max.
Power W3.6 Kw
SeriesProline
Weight kg28
Supply230 V / 50-60 Hz
