Vacuum pumps

Deliver precise vacuum and offer widely diverse control functions for a huge range of applications i (more)n the laboratory. The intuitive user guidance on the hand terminal ensures ease of operation; the process parameters can be entered over a touchscreen and a rotation knob. Ajustment capabilities: Units of measurement The operating language The operating mode Parameters, such as the setpoint pressure or suction capacity of the system direct over rotation knob. Depending on the selected operating mode, the graphic display of the hand terminal then indicates the respective process variables. The user can intervene in the ongoing process at any time with the hand terminal and its integrated touchscreen and rotating knob. The hand terminal can be located via vacuum pump system (paging); the hand terminal will answer with a signal tone. Four operating modes: Evacuate – The vacuum pump system evacuates a vacuum chamber with adjustable pump capacity. Pressure control – The vacuum pump system controls the system pressure to the set value (constant pressure). Automatic – The vacuum pump system automatically finds the vapour pressure of the sample and adjusts the process pressure accordingly. Individual pressure function – The vacuum pump system controls the process according to a user-defined pressure curve. The setpoint pressure and the opening and closing of the coolant valve (accessory) on the high-performance condenser can be easily entered for a range of set times. A repeat function allows successive repetitions of the programmed pressure curve.At any time during an active process, you can switch to manual process control. Functions for Evacuate and Pressure control will be available simultaneously. Flow rate (at atm. pressure): 1.26 m³/h Flow rate (at atm. pressure): 21 l/min Ultimate vacuum (< 5.0 with gas ballast valve in use): 2.0 mbar abs. Operating pressure (max.): 0.5 bar (rel.) Dimensions (WxHxD): 366 x 423 x 294 mm Weight: 15 kg

Capacity (max.): 5.5 l/min Final vacuum (max.): 160 mbar Operating pressure (max.): 2.4 bar Permissi (more)ble medium temperature: 5 – 40 °C Permissible ambient temperature: 5 – 40 °C Weight: 1.9kg

Max. pumping speed at 50 Hz: 1 m³/h Ultimate pressure: < 100 mbar Sound level: < 45 dB Dimensions (W (more)xDxH): 144 x 198 x 244 mm Weight: 2.7 kg

Max. vacuum: 99 mbar abs. Max. flow rate: 34 L/min Noise level: 52 dB Hose barb: ID8 Vacuum regulato (more)r: Yes Filter cartridge: Yes Overflow protection: Yes Thermal protection: Yes Dimension (LxWxH): 310 x 140 x 200 mm Weight: 5.2 kg

Chemically resistant, oil-free diaphragm vacuum pump used for a wide range of laboratory application (more)s. Especially suited for handling aggressive vapors, it features Aluminum alloy, PTFE-coated diaphragms and FFPM valves. 100% oil-free transfer – thereby pure transferring, evacuation and compression of gases High level of vapor and condensate compatibility Aluminum alloy pump head combined with PTFE-coated diaphragm Environmentally friendly High level of gas tightness Flow rate: 10 l/min.(at atm. pressure) Operating pressure: 1 bar Ultimate vacuum: 8,0 mbar Pump head: Aluminum alloy Diaphragm: PTFE-coated Valves: FFPM Dimensions (LxHxW): 281 x 187 x 140 mm Weight: 6.9 kg

Series N 811 diaphragm pumps are single-head, dry-running devices used in a wide range of laboratory (more) applications. They transfer, compress and pump down without contamination. The heart of these very compact pumps is a KNF structured diaphragm. This patented diaphragm was stress-optimized using the Finite Elements method. Delivery: 11.5 l/min Ultimate vacuum: 240 mbar Operating pressure: 2 bar Dimensions (LxHxW): 187 x 157 x 90 mm Weight: 2.5 kg

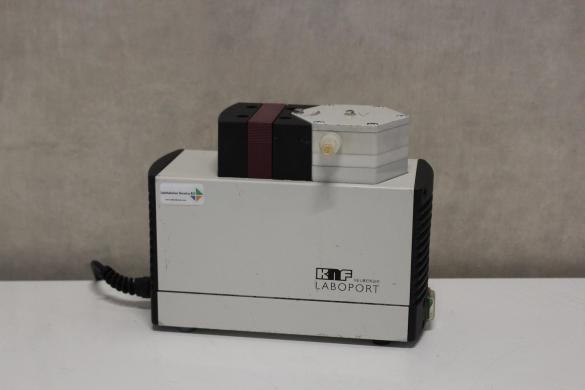

Chemically resistant, oil-free diaphragm vacuum pump used for a wide range of laboratory application (more)s. Especially suited for handling aggressive vapors, it features Aluminum alloy, PTFE-coated diaphragms and FFPM valves. 100% oil-free transfer – thereby pure transferring, evacuation and compression of gases High level of vapor and condensate compatibility Aluminum alloy pump head combined with PTFE-coated diaphragm Environmentally friendly High level of gas tightness Flow rate: 20 l/min.(at atm. pressure) Operating pressure: 1 bar Ultimate vacuum: 8,0 mbar Pump head: Aluminum alloy Diaphragm: PTFE-coated Valves: FFPM

Pumping speed: 1.7 m3/h Ultimate vacuum: 9 mbar Ultimate vacuum with gas ballast: 15 mbar Max permis (more)sible outlet pressure: 2 bar Max pressure difference inlet and outlet: 1.1 bar Permissible relative atmospheric moisture (no condensation): 30 to 85% Dimensions (DxWxH): 257 x 241 x 177 mm Weight: 10.9 kg
