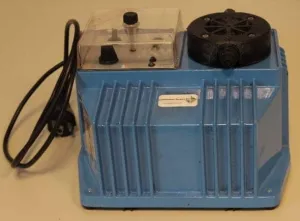

Etatron vacuum pump

Technical features Flow rate (max.) 5.5 l / min Final vacuum (max.) 160 mbar (abs.) Pressure (max.)  (more)2.4 bar (rel.) Permissible fluid temperature 5-40°C Valve material: FFPM Diaphragm material PTFE coated Pump head material: PPS Applications Filtration Aspiration of liquids Solid phase extraction Qualitative characteristics Clean operation, 100% oil-free Corrosion resistant Compact, silent and reliable Small footprint Maintenance free Download the data sheet for further information and accessories NOT SURE WHICH VACUUM PUMPS YOU NEED? Try following our guide to KNF pumps: VACUUM PUMPS FOR THE LABORATORY Or download the KNF guide: THE IDEAL DIAPHRAGM PUMP FOR EVERY APPLICATION

Labor port N 96 KNF Compact and portable diaphragm vacuum pump, resistant to chemicals and corrosive (more)s, oil-free. The pump capacity is manually adjustable with a simple knob. Laboport is equipped with gas ballast, PTFE/TFM heads, PTFE lined diaphragms and FFPM valves. It is suitable for a wide range of laboratory applications, including extremely aggressive/corrosive gases and vapours. Technical features - Flow rate (max.) 7 l / min - Final vacuum (max.) 130 mbar (abs.) - Pressure (max.) 2.5 bar (rel.) - Permissible fluid temperature 5-40 °C - Valve material: FKM - Diaphragm material: PTFE coated - Pump head material: PPS Applications - Filtration - Fluid suction - Solid phase extraction Qualitative characteristics - 100% oil-free transfer: transfer, evacuation and compression of gases in a clean and safe way - Extremely small footprint - The PTFE coated diaphragm is ideal for aggressive agents / gases and corrosive vapors - Integrated control of the rotation speed - Ecological Download the data sheet for further information and accessories. NOT SURE WHICH VACUUM PUMPS YOU NEED? Try following our guide to KNF pumps: VACUUM PUMPS FOR THE LABORATORY Or download the KNF guide: THE IDEAL DIAPHRAGM PUMP FOR EVERY APPLICATION Presentations of the Laboport line directly from the specialists who created it. English subtitles. Presentation of the new Laborports and SMART KNF control.

Yamato GLD202BB Rotary Vane Vacuum Pump with Rubber Hose, 115V Ultimate Pressure 6.7 x 10-3 mbar A (more)ctual Pumping Speed 200 L/min (50Hz) 240 L/min (60Hz) Weight 31 kg Features - High performance while maintaining low vibration and noise levels - Oil-back flow prevention mechanism - Large sized oil level gauge to ensure accuracy in monitoring vacuum processes - Multi voltage motor - Compatible with a variety of applications Introducing the GLD Series Rotary Vane Pump, a high-performance and low-noise vacuum pump designed to excel in various applications. This pump boasts an array of impressive features, including a gas ballast valve, oil-back-flow prevention mechanism, and a generously sized oil level gauge. With its multi-voltage motor and adherence to international standards, it ensures versatility and compatibility across different setups. Perfectly suited for applications in the fields of chemistry, scientific experimentation, analyzers, and laser systems, this pump also excels as a backing pump for electronic microscopes, semiconductor equipment, sputtering and vacuum evaporation equipment, as well as vacuum and freeze dryers. Plus, with a noise level of just 57 db(A) or less, it ensures a quiet and efficient operation. Experience superior performance and reliability with the GLD Series Rotary Vane Pump, your ideal choice for vacuum solutions.INCLUDED: The Yamato GLD202BB Rotary Vane Vacuum Pump with Rubber Hose, 115V includes: - Hose Clamp - NW25 Centering O-Ring - Rubber Hose ID 21mm / 1500mm - Oil Mist Trap - Power Cord - One Year Manufacturer's Warranty

Gilson MINIPULS 3 Peristaltic Pump Head, R4 Four Channel The Gilson MINIPULS 3 Peristaltic Pump Head (more), R4 Four Channel is a versatile pump head with a maximum flow rate of 40 ml/min and a minimum flow rate of 0.3 ul/min. Its durable construction and compatibility with the Gilson MINIPULS 3 Peristaltic Pump makes it ideal for precise fluid handling in various research and pharmaceutical applications. INCLUDED: The Gilson MINIPULS 3 Peristaltic Pump Head, R4 Four Channel includes: - Manufacturer's Documentation - 1 Year Manufacturer's Warranty

The offered instrument / system is fully functional tested and ready to use. FURTHER DETAILS TO FOLL (more)OW

The case has been designed for safe transportation of the MA X2, MAR moisture analyzer. It is equipp (more)ed with two handles for convenient carrying. The interior of the case has been adapted to fit all device components, with this it can be carried without the risk of damage. The case is made of 6 mm thick plywood. It features reinforced corners, aluminium trim, and hard dark foam filling. The case comes as an accessory.

MWMH series modules are not offered or distributed in the following countries: Germany, Switzerland, (more) Italy, Japan and the USA. Vast Max Capacity Range Magnetoelectric weighing modules MWMH are intended for mass measurement ranging from 1kg to 10kg. Minimum readability of 0.01g guarantees amazing accuracy for your measurement. Protection Against Challenging Conditions Hermetic versions of modules feature stainless steel housing with IP65 and IP69K. This allows operation even in the most challenging conditions. Mechanical design lacks sharp edges and gaps which ensures adherence to HACCP, GMP and FDA standards for safety and quality of operation. Fast and Precise Measurement High measurement accuracy with sd=1d* guarantees both readout of real weighing results and repeatability of indications. Cutting-edge design solutions provide fast measurement which is an asset allowing to install the module on automated production lines. Intended for fast and dynamic measuring processes the weighing module’s converter throughput is 3200 meas./s. Cooperation with terminals Connecting the module to a multifunctional weighing terminal expands communication interfaces range and increases usage in industrial applications. Mechanical design versions: MWMH xxx - 1 - model with Binder connectors (IP65), MWMH xxx - 2 - model with Binder connectors, (IP65), power supply and control of the transporter on a weighing pan, MWMH xxx - 3 - model with cable glands, (IP 69K), MWMH xxx - 4 - model with cable glands (IP69K), power supply and control of the transporter on a weighing pan MWMH xxx - TWD - model with cable glands (IP 69K).

The HX5.EX scale is a modern weighing instrument assuring fast and reliable measurement in hazardous (more) areas classified as zones 1/21 and 2/22. To ensure precision and excellent measurement repeatability, high quality electronic components are used. The weighing platforms offered in wide range of dimensions and maximum capacities, this combined with excellent metrological parameters enables easy selection of an instrument that meets the most demanding requirements. Standard version of the scale is equipped with 2 serial, intrinsically safe RS232 communication interfaces, and with one RS485 interface. They facilitate cooperation with equipment intended for operation in hazardous areas. Possibility to add digital inputs/outputs extends the range of instruments compatible with the indicator by automatic elements compliant with ATEX directive. More demanding customers can use the IM01.EX module, installed in the safe area, which extends the available connectors by Ethernet, USB, 4-20mA/0- 10V analog outputs, Profibus DP and additional digital inputs/outputs. This enables cooperation with external devices: barcode scanners, printers, external displays, control buttons, light signalling towers, other controlling/signalling devices, systems for automatic process control and superior IT systems. Scale operation requires use of a dedicated PM01.EX power supply, which is not a standard scale component. To operate the scale, order a selected type of the dedicated intrinsically safe power supply. Power supply types: PM01.EX-1 - power supply for operation in ATEX area. Used when it is required to connect the power supply to voltage source placed in hazardous area. PM01.EX-2 - power supply for operation outside ATEX area. Used when power supply connection to voltage source is carried out outside hazardous area. Complex software enables carrying out many tasks connected with mass measurement, e.g. parts counting, checkweighing and statistics. The scales feature user-friendly graphic interface, which can be customized using widgets. This and the large colour display of high resolution guarantee easy and clear transmission of data on current process. Colour bar graph significantly influences performance by signalling whether the weighing result is within declared thresholds or not.

Edwards E2M0.7 Vacuum Pump Ultimate Vacuum 3.0 x 10-3 mbar Inlet Connection NW25 Displacement 38.9 m (more)3h-1 / 22.3 ft 3min-1 Features - High ultimate vacuum and rapid pumping speed make it the industry standard for laboratory and light industrial applications - Quiet operation ensures a comfortable working environment, with noise levels as low as 36 dB(A) with an acoustic enclosure - Freestanding design with a flexible coupling driven by either a single-phase or three-phase (four pole) motor for versatile use - Equipped with an NW10 flange inlet connection and a removable 11 mm nozzle outlet for flexible system integration - Capable of a maximum water vapor pumping rate of 8 g/h, ensuring efficient vapor handling - Nominal rotation speeds of 1400 rpm (50 Hz) and 1700 rpm (60 Hz) offer high performance - Operates within a temperature range of 12 - 40 °C, accommodating various environments The EM range of oil‑sealed rotary pumps – renowned for their high ultimate vacuum, rapid pumping speed, quiet operation and ability to handle vapour – have become the industry standard for laboratory and light industrial applications. The pump is a freestanding unit with the drive provided through a flexible coupling by either a single‑phase or three‑phase (four pole) motor. Click Here to View Product Video INCLUDED: The Edwards E2M0.7 Vacuum Pump includes: - Edwards Ultragrade Performance 15 Oil - Power Cord - Manufacturer's Documentation - Operator's Manual - 1 Year Manufacturer's Warranty
