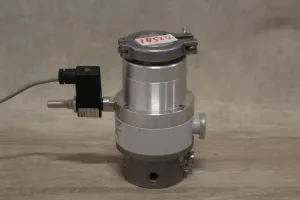

Pfeiffer Vacuum TPH062 Turbo Vacuum Pump

LabMakelaar Benelux B.V.
item image

Description by the supplier

The Pfeiffer Vacuum TPH062 has a wear free permanent magnetic bearing at the high vacuum side and an oil lubricated ceramic bearing at the backing side.


Applications:


Freeze drying – packaging industry


Degassing, casting, dry vacuum smelting (super-pure metals)


Incandescent lamp manufacturing


Electronic tubes


Thin film deposition


Space simulation


Cryogenic research


Electron microscopy


Nuclear physics, Plasma physics, High energy physics


Particle accelerators – Storage rings


Inlet Flange: DN 63 ISO-KF


Outlet Flange: DN 16 ISO-KF


Final pressure: < 1 x 10-11 mbar


Flow Rate (N2): 56 l/s


Weight: 3.5 kg
