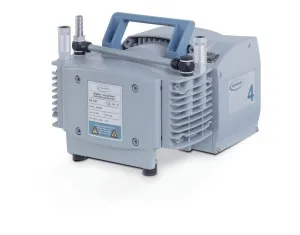

VACUUBRAND ME 4 NT Diaphragm Pump

Marshall Scientific$2,565.00 (ex VAT)
item image

Description by the supplier

VACUUBRAND ME 4 NT Diaphragm Pump



Ultimate Vacuum

70 mbar (52 Torr)

Maximum Pumping Speed

2.6 CFM at 60Hz

Number of Heads/Stages

2/1



Features

- Contamination-free pumping and evacuation

- High flow rate even near ultimate vacuum

- Whisper quiet

- ME 4 NT with low vibration and higher pumping speed

- Exceptionally long diaphragm life and maintenance-free drive system for low lifetime costs






Diaphragm pumps are an excellent solution for continuous, oil-free evacuation and pumping of gases. All parts in contact with pumped media are made of aluminum and selected plastics, allowing a wide range of applications for non-corrosive gases. The one-stage construction provides the advantageous combination of high pumping speed and an ultimate vacuum down to 70 mbar. The highly flexible fabric-reinforced double diaphragm made of FKM is ideal for extended operating life. The NT-series features further improved performance data. One-stage diaphragm pumps are an excellent choice for continuous, oil-free pumping at modest vacuum requirements. In contrast to water jet pumps, they do not consume water and therefore do not produce any contaminated waste water. Typical applications are vacuum ovens, aqueous filtrations and pumping and evacuation of non-aggressive gases in general. The ME 4 NT offers shorter evacuation times and higher gas throughput.INCLUDED:

The VACUUBRAND ME 4 NT Diaphragm Pump includes:

- Power Cord

- Operator's Manual

- Manufacturer's Documentation

- 2 Year Manufacturer's Warranty

Product details
Max. pumping speed 50 Hz4 m3/h
Max. pumping speed 60 Hz2.6 cfm
Ultimate vacuum70 mbar / 52 torr
Number of heads2
Number of stages1
Lower ambient temperature (operation)10 °C
Upper ambient temperature (operation)40 °C
Lower ambient temperature (storage)-10 °C
Upper ambient temperature (storage)60 °C
Max. back pressure (abs.)2 bar
Inlet connectionHose nozzle DN 8-10 mm
Outlet connection2 x G1/4"
Rated motor power0.18 kW
Rated motor speed at 50/60 Hz1500/1800 min-1
Protection class IEC 60529IP 40
Dimension L in mm245 mm
Dimension B in mm239 mm
Dimension H in mm198 mm
Weight11.0 kg
Noise (sound pressure level) in dBA at 50 Hz or 1500 rpm/62% (VARIO)/1500 rpm (VARIO-SP)/12500 Upm (VACUU·PURE®)45 dBA
NRTL certificationYes
Items suppliedPump completely mounted, ready for use, silencer, hose nozzle, with manual.
Rated mains voltage range 1100-115 V
Rated mains voltage range 2120 V
Mains frequency 150-60 Hz
Mains frequency 260 Hz
