Laboratory pumps

Technical features Flow rate: 0.03-20ml / min Programmable dosage: from 0-999 ml Suction height (max (more).): 2 mWg Operating pressure (max.): 6 bar (rel.) Weight 0.9 kg Permitted fluid temperature: 5-80°C Permitted ambient temperature: 5-40°C Valve material: Kalrez® FFKM Membrane material: PTFE coating, FFKM Pump head material: PTFE, PP, Stainless steel, PVDF Applications Liquid dosing / measuring Qualitative characteristics Small footprint Simple and intuitive use Manual and analog control and RS232 interface Self-priming, it can run dry Constant and reliable flow rate Available with different material configurations for chemical resistance Simple calibration Pump head materials: PP, PVDF, PTFE Membrane materials PTFE coating, FFKM Valve material: FFKM Kalrez Download the data sheet for further information and accessories. NOT SURE WHICH VACUUM PUMPS YOU NEED? Try following our guide to KNF pumps: VACUUM PUMPS FOR THE LABORATORY Or download the KNF guide: THE IDEAL DIAPHRAGM PUMP FOR EVERY APPLICATION

Technical features Flow rate 0.2-1.3 l / min Suction (max.) 3 mWg Operating pressure (max.) 4 bar (r (more)el.) Permitted fluid temperature 5-80°C Maximum permissible viscosity 150 cSt FFKM valve material Membrane material PTFE coating Pump head material PTFE, PP, PVDF Applications Transfer of liquids Qualitative characteristics Small footprint Simple and intuitive use Manual control Self-priming, it can run dry Splash-proof with IP65 protection rating Available with different material configurations for chemical resistance Maintenance free Pump head materials: PP, PVDF, PTFE Membrane material: PTFE coating Valve material: FFKM Simriz® VERSIONS S (standard): the flow rate can only be set manually, using the knob on the upper side, as shown in the photo. RC (remote control): the range can be controlled remotely, such as from a PC, including a fault alarm; a connection cable will be supplied. Supplied with fittings for 8 mm internal diameter tube. NOT SURE WHICH VACUUM PUMP YOU NEED? Try following our guide to KNF pumps: VACUUM PUMPS FOR THE LABORATORY Or download the KNF guide: THE IDEAL DIAPHRAGM PUMP FOR EVERY APPLICATION

Laboport SD N 860.3 FT.40.18 is a two-stage pump with an integrated “self-drying” system for automat (more)ic condensate drain. The “SD” series is widely used in laboratories, especially when the vapors are humid and a clean and ecological vacuum is required. Typical applications are: vacuum ovens (for drying chemicals, drying biological samples, heat treatments), autoclaves for sterilizing instruments, containers, filters and textiles. Thanks to the use of anti-corrosion materials, it is possible to vacuum even corrosive products. The heart of the pump is the diaphragm with differentiated structure in PTFE, optimized to guarantee high performance with reduced dimensions and at the same time, long life even in heavy applications. When the humid gases are sucked in, it can happen that condensation forms in the pump head: consequently the performance decreases, considerably increasing the emptying time. To eliminate condensation, the 'drying system' then opens a solenoid valve that allows ambient air to enter the heads. Once the condensation has been eliminated, the solenoid valve closes and the pump sucks from the stove in full capacity. Over time, condensation could form again and then the cycle is repeated. The time interval between one cycle and the next can be adjusted as desired, as well as the duration of the air injection. Technical features Flow rate (max.) 60 l / min Final vacuum (max.) 4 mbar (abs.) Pressure (max.) 1 bar (rel.) Fluid temperature allowed at 5-40°C FFPM valve material PTFE coated diaphragm material Pump head material PTFE Applications Rotary evaporation Centrifugal concentration Distillation Vacuum oven Qualitative characteristics Clean operation, 100% oil-free Corrosion resistant PTFE / FFPM flow path Ideal for extremely aggressive / corrosive gases and vapors Compact, silent and reliable The self-drying system removes condensation without altering the vacuum level Maintenance free Download the data sheet for further information and accessories. NOT SURE WHICH VACUUM PUMP YOU NEED? Try following our guide to KNF pumps: VACUUM PUMPS FOR THE LABORATORY Or download the KNF guide: THE IDEAL DIAPHRAGM PUMP FOR EVERY APPLICATION

Technical features Flow rate 0.5–3.0 l/min Suction (max.) 3 mWg Operating pressure (max.) 1 bar (rel (more).) Permitted fluid temperature 5-80°C Maximum permissible viscosity 150 cSt FFKM valve material Membrane material PTFE coating Pump head material PTFE, PP, PVDF Applications Transfer of liquids Qualitative characteristics Small footprint Simple and intuitive use Manual control Self-priming, it can run dry Splash-proof with IP65 protection rating Available with different material configurations for chemical resistance Maintenance free Pump head materials: PP, PVDF, PTFE Membrane material: PTFE coating Valve material: FFKM Simriz® VERSIONS S (standard): the flow rate can only be set manually, using the knob on the upper side, as shown in the photo. RC (remote control): the range can be controlled remotely, such as from a PC, including a fault alarm; a connection cable will be supplied. Supplied with fittings for 12 mm internal diameter tube. Download the data sheet for further information and accessories. NOT SURE WHICH VACUUM PUMP YOU NEED? Try following our guide to KNF pumps: VACUUM PUMPS FOR THE LABORATORY Or download the KNF guide: THE IDEAL DIAPHRAGM PUMP FOR EVERY APPLICATION

Technical features Flow rate 0.5–3.0 l / min Suction (max.) 3 mWg Operating pressure (max.) 4 bar (r (more)el.) Permitted fluid temperature 5-80°C Maximum permissible viscosity 150 cSt FFKM valve material Membrane material PTFE coating Pump head material PTFE, PP, PVDF Applications Transfer of liquids Qualitative characteristics Small footprint Simple and intuitive use Manual control Self-priming, it can run dry Splash-proof with IP65 protection rating Available with different material configurations for chemical resistance Maintenance free Pump head materials: PP, PVDF, PTFE Membrane material: PTFE coating Valve material: FFKM Simriz® VERSIONS S (standard): the flow rate can only be set manually, using the knob on the upper side, as shown in the photo. RC (remote control): the range can be controlled remotely, such as from a PC, including a fault alarm; a connection cable will be supplied. Supplied with fittings for 12 mm internal diameter tube. Download the data sheet for further information and accessories. NOT SURE WHICH VACUUM PUMP YOU NEED? Try following our guide to KNF pumps: VACUUM PUMPS FOR THE LABORATORY Or download the KNF guide: THE IDEAL DIAPHRAGM PUMP FOR EVERY APPLICATION

Technical features Flow rate: 0.2-1.3 l / min Suction (max.): 3 mWg Operating pressure (max.): 1 bar (more) (rel.) Permitted fluid temperature: 5-80°C Maximum permissible viscosity: 150 cSt Valve material: FFKM Membrane material: PTFE coating Pump head material: PTFE, PP, PVDF Applications Transfer of liquids Qualitative characteristics Small footprint Simple and intuitive use Manual control Self-priming, it can run dry Splash-proof with IP65 protection rating Available with different material configurations for chemical resistance Maintenance free Pump head materials: PP, PVDF, PTFE Membrane material: PTFE coating Valve material: FFKM Simriz® VERSIONS S (standard): the flow rate can only be set manually, using the knob on the upper side, as shown in the photo. RC (remote control): the range can be controlled remotely, such as from a PC, including a fault alarm; a connection cable will be supplied. Supplied with fittings for 8 mm internal diameter tube. Download the data sheet for further information and accessories. NOT SURE WHICH VACUUM PUMPS YOU NEED? Try following our guide to KNF pumps: VACUUM PUMPS FOR THE LABORATORY Or download the KNF guide: THE IDEAL DIAPHRAGM PUMP FOR EVERY APPLICATION

Technical features Flow rate (max.) 21 l / min Ultimate vacuum (max.) 2 mbar (abs.) Operating pressu (more)re (max.) 0.5 bar (rel.) Permitted fluid temperature 5-40°C FFPM valve material Membrane material PTFE coating PPS pump head material Applications Rotary evaporators Distillation Centrifugal concentrators Aspiration of fluids Qualitative characteristics Clean operation, 100% oil free High suction speed, especially in the low vacuum range Adjustable speed control Exceptionally quiet Corrosion resistant Maintenance free INCLUDED: The KNF N920KT.29.18G diaphragm pump includes: - Power cord - Operator's guide - Manufacturer's documentation - 1 year manufacturer's warranty Download the data sheet for further information and accessories. NOT SURE WHICH VACUUM PUMP YOU NEED? Try following our guide to KNF pumps: VACUUM PUMPS FOR THE LABORATORY Or download the KNF guide: THE IDEAL DIAPHRAGM PUMP FOR EVERY APPLICATION

Technical features Flow rate (max.) 5.5 l / min Final vacuum (max.) 160 mbar (abs.) Pressure (max.)  (more)2.4 bar (rel.) Permissible fluid temperature 5-40°C Valve material: FFPM Diaphragm material PTFE coated Pump head material: PPS Applications Filtration Aspiration of liquids Solid phase extraction Qualitative characteristics Clean operation, 100% oil-free Corrosion resistant Compact, silent and reliable Small footprint Maintenance free Download the data sheet for further information and accessories NOT SURE WHICH VACUUM PUMPS YOU NEED? Try following our guide to KNF pumps: VACUUM PUMPS FOR THE LABORATORY Or download the KNF guide: THE IDEAL DIAPHRAGM PUMP FOR EVERY APPLICATION

Technical features Flow rate (max.) 34 l / min Final vacuum (max.) 2 mbar (abs.) Pressure (max.) 1 b (more)ar (rel.) Permissible fluid temperature 5-40°C Valve material: FFPM Diaphragm material PTFE coated Pump head material: PTFE Applications Drying Rotary evaporation Centrifugal concentration Distillation Vacuum oven Qualitative characteristics Clean operation, 100% oil-free Chemically resistant PTFE / FFPM flow path Ideal for extremely aggressive / corrosive gases and vapors Compact, silent and reliable Maintenance free Download the data sheet for further information and accessories. NOT SURE WHICH VACUUM PUMP YOU NEED? Try following our guide to KNF pumps: VACUUM PUMPS FOR THE LABORATORY Or download the KNF guide: THE IDEAL DIAPHRAGM PUMP FOR EVERY APPLICATION

Labor port N 840 G KNF Diaphragm vacuum pump resistant to chemical and corrosive liquids, compact an (more)d oil-free. The pump capacity is manually adjustable with a simple knob. Laboport is equipped with gas ballast, PTFE/TFM heads, PTFE lined diaphragms and FFPM valves. It is suitable for a wide range of laboratory applications, including extremely aggressive/corrosive gases and vapours. - Flow rate (max.): 34 l/min - Final vacuum (max.): 6 mbar (abs.) - Adjustable speed control - ATEX compliant only for internal atmosphere (Ex) II 2/-G IIB+H2 T3 - Ideal for extremely aggressive/corrosive gases and vapours - Clean operation, 100% oil-free Technical features - Flow rate (max.): 34 l/min - Final vacuum (max.): 6 mbar (abs.) - Pressure (max.): 0.1 bar (rel.) - Permissible fluid temperature between 5 and 40°C - Valve material: FFPM - Diaphragm material: PTFE coated - Pump head material: PTFE Applications - Centrifugal concentration - Degassing - Drying - Distillation - Drying of the gel - Rotary evaporation - Solid phase extraction Qualitative characteristics - Adjustable speed control - ATEX compliant only for internal atmosphere (Ex) II 2 / -G IIB + H2 T3 - Ideal for extremely aggressive / corrosive gases and vapors - Chemically resistant PTFE / FFPM flow path - Clean operation, 100% oil-free - Compact, silent and reliable - Maintenance free - Small footprint to optimize workspace Download the data sheet for further information and accessories. NOT SURE WHICH VACUUM PUMPS YOU NEED? Try following our guide to KNF pumps: VACUUM PUMPS FOR THE LABORATORY Or download the KNF guide: THE IDEAL DIAPHRAGM PUMP FOR EVERY APPLICATION Presentations of the Laboport line directly from the specialists who created it. English subtitles. Presentation of the new Laborports and SMART KNF control.

Technical features Flow rate (max.) 30 l / min Ultimate vacuum (max.) 160 mbar (abs.) Operating pres (more)sure (max.) 0.5 bar (rel.) Permitted fluid temperature 5-40°C FFPM valve material Membrane material PTFE coating PPS pump head material Applications Filtration Degassing Drying Aspiration of fluids Solid phase extraction Qualitative characteristics Clean operation, 100% oil free Corrosion resistant Compact, silent and reliable Small footprint It can handle humid vapors without damage Maintenance free Download the data sheet for further information and accessories. NOT SURE WHICH VACUUM PUMP YOU NEED? Try following our guide to KNF pumps: VACUUM PUMPS FOR THE LABORATORY Or download the KNF guide: THE IDEAL DIAPHRAGM PUMP FOR EVERY APPLICATION

Technical features Flow rate (max.) 34 l / min Final vacuum (max.) 8 mbar (abs.) Pressure (max.) 1 b (more)ar (rel.) Permissible fluid temperature 5-40°C Valve material: FFPM Diaphragm material PTFE coated Pump head material: PTFE Applications Rotary evaporation Degassing Drying of the gel Vacuum oven Qualitative characteristics Clean operation, 100% oil-free Chemically resistant PTFE / FFPM flow path Ideal for extremely aggressive / corrosive gases and vapors Compact, silent and reliable Maintenance free ATEX compliant only for internal atmosphere (Ex) II 2 / -G IIB + H2 T3 Download the data sheet for further information and accessories NOT SURE WHICH VACUUM PUMP YOU NEED? Try following our guide to KNF pumps: VACUUM PUMPS FOR THE LABORATORY Or download the KNF guide: THE IDEAL DIAPHRAGM PUMP FOR EVERY APPLICATION

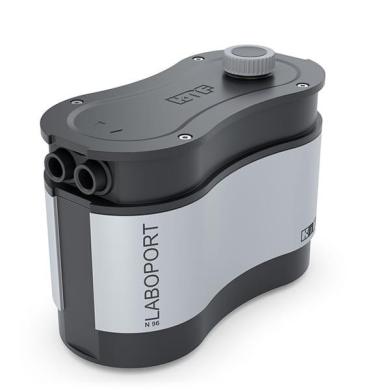

Labor port N 96 KNF Compact and portable diaphragm vacuum pump, resistant to chemicals and corrosive (more)s, oil-free. The pump capacity is manually adjustable with a simple knob. Laboport is equipped with gas ballast, PTFE/TFM heads, PTFE lined diaphragms and FFPM valves. It is suitable for a wide range of laboratory applications, including extremely aggressive/corrosive gases and vapours. Technical features - Flow rate (max.) 7 l / min - Final vacuum (max.) 130 mbar (abs.) - Pressure (max.) 2.5 bar (rel.) - Permissible fluid temperature 5-40 °C - Valve material: FKM - Diaphragm material: PTFE coated - Pump head material: PPS Applications - Filtration - Fluid suction - Solid phase extraction Qualitative characteristics - 100% oil-free transfer: transfer, evacuation and compression of gases in a clean and safe way - Extremely small footprint - The PTFE coated diaphragm is ideal for aggressive agents / gases and corrosive vapors - Integrated control of the rotation speed - Ecological Download the data sheet for further information and accessories. NOT SURE WHICH VACUUM PUMPS YOU NEED? Try following our guide to KNF pumps: VACUUM PUMPS FOR THE LABORATORY Or download the KNF guide: THE IDEAL DIAPHRAGM PUMP FOR EVERY APPLICATION Presentations of the Laboport line directly from the specialists who created it. English subtitles. Presentation of the new Laborports and SMART KNF control.

Technical features Flow rate (max.) 6 l / min Final vacuum (max.) 100 mbar (abs.) Pressure (max.) 2. (more)4 bar (rel.) Permissible fluid temperature 5-40 ° C Valve material: FFPM Diaphragm material PTFE coated Pump head material: PPS Applications Filtration Aspiration of liquids Solid phase extraction Qualitative characteristics Clean operation, 100% oil-free Corrosion resistant Compact, silent and reliable Ecological Maintenance free Download the data sheet for further information and accessories NOT SURE WHICH VACUUM PUMP YOU NEED? Try following our guide to KNF pumps: VACUUM PUMPS FOR THE LABORATORY Or download the KNF guide: THE IDEAL DIAPHRAGM PUMP FOR EVERY APPLICATION

The N 840.3 FT.40.18 is a two-stage pump with an integrated “self-drying” system for automatic conde (more)nsate drain. The “SD” series is widely used in laboratories, especially when the vapors are humid and a clean and ecological vacuum is required. Typical applications are: vacuum ovens (for drying chemicals, drying biological samples, heat treatments), autoclaves for sterilizing instruments, containers, filters and textiles. Thanks to the use of anti-corrosion materials, it is possible to vacuum even corrosive products. The heart of the pump is the diaphragm with differentiated structure in PTFE, optimized to guarantee high performance with reduced dimensions and at the same time, long life even in heavy applications. When the humid gases are sucked in, it can happen that condensation forms in the pump head: consequently the performance decreases, considerably increasing the emptying time. To eliminate condensation, the 'drying system' then opens a solenoid valve that allows ambient air to enter the heads. Once the condensation has been eliminated, the solenoid valve closes and the pump sucks from the stove in full capacity. Over time, condensation could form again and then the cycle is repeated. The time interval between one cycle and the next can be adjusted as desired, as well as the duration of the air injection. Technical features Flow Rate (max.) 34 l / min Ultimate Vacuum (max.) 10 mbar (abs.) Pressure (max.) 1 bar (rel.) Permissible Medium Temperature 5-40°C Valve Material FFPM Diaphragm Material PTFE coated Pump Head Material PTFE Applications Rotary evaporation Vacuum oven Qualitative characteristics Clean operation, 100% oil-free Corrosion resistant PTFE / FFPM flow path Ideal for extremely aggressive / corrosive gases and vapors Compact, silent and reliable The self-drying system removes condensation without altering the vacuum level Maintenance free Download the data sheet for further information and accessories. NOT SURE WHICH VACUUM PUMPS YOU NEED? Try following our guide to KNF pumps: VACUUM PUMPS FOR THE LABORATORY Or download the KNF guide: THE IDEAL DIAPHRAGM PUMP FOR EVERY APPLICATION
