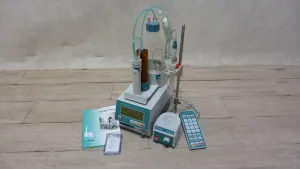

Metrohm 785 DMP Titrino Titrator

Modes:

DET; Dynamic Equivalence Point Titration

MET; Monotonic Equivalence Point Titration

SET; Set End point Titration

MEAS; Measurement

CAL; pH calibration

TIP; Links commands to titration procedure

Measuring inputs:

2 high-impedance measuring inputs for pH, redox and ISE electrodes.

1 reference input for a separate reference electrode. May also be used as a differential amplifier.

1 measuring input for polarized electrodes.

1 measuring input for temperature sensor Pt100 or Pt1000.

Measuring range:

pH value; 0 – 20.00, resolution 0.01

Voltage; 0 – 2000 mV, resolution 1 mV, error limit 0.1 % fullscale

Current; 0 – 200 mA, resolution 1 mA

Temperature; -150.0 – 450.0°C, resolution 1 °C

Polarizer; Ipol 0 – 127 mA, resolution 1 mA / Upol; 0 – 1270 mV, in steps of 10 mV

Measuring amplifier:

Input resistance; >10¹³ W

Offset current; <3x 10⁻¹³ A

Deviation of offset voltage; 15 µV/K

Dosification:

Volume of buret cylinder; 10 ml

Resolution; 10 000 steps per buret cylinder

Dimensions (WxHxD): 150 x 450 x 275 mm

Weight: 3.6 kg
