Shakers

Motion: orbital Rotation speed range: 30 – 500 rpm Operating Mode: Timer function / continuous opera (more)tion Orbit / Stroke: 10 mm Timer: Yes (max. 99 h 99 min 99 s) Platform size: 285 x 285 mm Max. Load: 5 kg

The Mini-Beadbeater-96 is a high-energy, high-throughput cell disrupter.  It can process one 2 ml de (more)ep well microplate (capacity 96 sample capacity), two 1 ml deep well microplates (192 sample capacity). The MiniBeadbeater-96 is powered with a huge 1 hp induction motor.  No other beadbeater on the market offers higher shaking energies for cell disruption. Sample Capacity: Holds one 2 ml deep-well microplate or two 1 ml deep-well microplates. Vial displacement distance or Throw: 32 mm Shaking Speed: 1400 rpm 3-D shaking pattern: Vial contents shake from the top to bottom of the vial or plate in a compressed figure-8 pattern.  Vials and microplates are held in a near-horizontal orientation rather than the less efficient vertical position. This shaking pattern assures complete cell disruption in the shortest possible time.  No reorientation of plates in mid-cycle is required. Timer: 0 – 5 minutes. Recycle delay time: No motor cool-down time is required during or between sample runs. Dimensions (WxDxH): 406 x 610 x 457 mm Weight: 55 kg

General purpose shaker with microprocessor control, ideal for basic mixing applications, staining te (more)chniques, staining and bleaching. Variable speed control provides a consistent, uniform shaking action. The speed is adjustable via a knob with 1 to 10 rotary knobs and the ramping function slowly increases the speed to the set point for added safety. Suitable for continuous use To be used at 0 to +40 °C (maximum 80% relative humidity, non-condensing), in an incubator, CO₂ incubator or cold store. Speed: 40 – 300 rpm Shaking motion: Circular motion Amplitude: 15 mm Platform (WxD): 222 x 299 mm Maximum load: 3.6 kg Dimensions (W×D×H): 280 x 430 x 102 mm Weight: 10 kg

Motion: reciprocating (horizontal) Shaking platform: 400 x 300 mm Max. load: 15 kg Shaking speed: 30 (more) – 420 rpm, in steps of 5 Stroke: 17 mm Runtime: programmable / continuous Dimensions (WxDxH): 510 x 490 x 150 mm Weight: 19 kg

Microplate shaker with microprocessor control that can accommodate two or four microplates, deep wel (more)l plates or two microtube racks. Variable speed over a wide range can be adjusted to suit the application; a low speed ensures that the contents of the well are not ejected, more vigorous stirring provides effective aeration over the small surface area of each of the wells. Ideal for use in immunology, biotechnology, microbiology and pharmacology applications. Two independent LED displays show speed and time Integrated timer, 1 s to 160 hours, shows elapsed time or counts down, automatic switch-off and acoustic alarm when program is completed Can be used at −10 to +60 °C (80% relative humidity, non-condensing), in an incubator, CO₂ incubator or cold room Speed: 100 – 1200 rpm Speed accuracy: ±2% Circular movement: 3.0mm Number of places for microplates: 4 Dimensions (WxDxH): 280 x 430 x 100 mm Weight: 10 kg

WAVE Bioreactor is the ideal device for cell culture. Culture medium and cells contact only a preste (more)rile, disposable chamber called a Cellbag that is placed on a special rocking platform. The rocking motion of this platform induces waves in the culture fluid. These waves provide mixing and oxygen transfer, resulting in a perfect environment for cell growth that can easily support 10 x 10-6 cells / ml. The bioreactor requires no cleaning or sterilization, providing the ultimate ease in operation and protection against cross-contamination.

Motion: reciprocating Rotation speed range: 30 – 250 rpm Operating Mode: timer or continuous Orbit / (more) Stroke: 32 mm Timer: yes (max. 999 min) Platform size: 290 x 258 mm Max. Load: 5 kg

Shaking frequency: 20 – 300 rpm Shaking amplitude: 30 mm Shaking motion: orbital Timer: up to 60 min (more)utes, or continuous operation Max load: 15 kg Platform: 450 x 450 mm Dimensions (WxDxH): 510 x 625 x 142 mm Weight: 18 kg

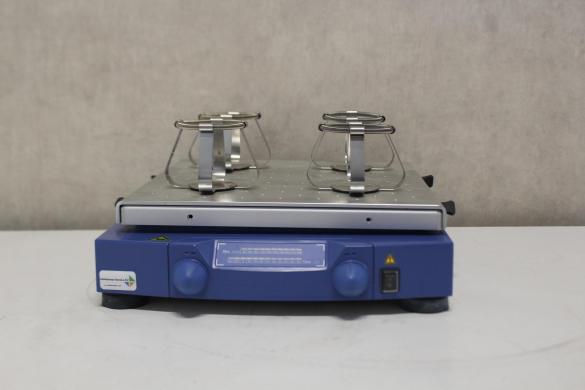

Type of movement: orbital Shaking stroke: 10 mm Permissible shaking weight (incl. attachment): 7.5 k (more)g Permissible ON time: 100 % Speed range: 0 – 500 rpm Speed display: LED line Timer: yes Time setting range: 5 – 50 min Operating mode: timer and continuous operation Dimensions (WxHxD): 360 x 98 x 420 mm Weight: 8.5 kg

Low profile laboratory orbital shaker with large mounting surface and load capacity of up to 15 kg.  (more)Infinitely variable speed control from 0 – 300 rpm Digital display Orbital diameter 30 mm Ideal for vessels with a volume of more than 250 ml, e.g. round flasks, Erlenmeyer flasks, culture flasks and bottles Ideal for biological and microbiological growth tests and for production of stock solutions Continuous operation (endless) even under extreme loads Timer function Type of movement: orbital Shaking stroke: 30 mm Permissible shaking weight (incl. attachment): 15 kg Permissible ON time: 100 % Speed range: 0 – 300 rpm Speed display: 7 segment LED Timer: yes Timer display: scale Time setting range: 1 – 55 min Operating mode: timer and continuous operation Dimensions (WxHxD): 505 x 120 x 585 mm Weight: 26 kg Equipped with a AS 501.1 Universal attachment

Heavy duty large footprint Orbital-Genie provides a flat platform with adhering rubber mat perfect f (more)or use with open containers and T-flasks. Patented material is naturally adhering. Programmable ramping feature ensures a smooth ramp-up to desired speed avoiding potential spills. Speed: 10 – 300 RPM Timer: 1 min – 99 hours w/Alarm or Continuous Orbit: 35mm Selectable Ramp Rates: 10 – 100 rpm/sec Product Weight: 21 kg Dimensions platform: 460 x 460 mm

Low profile laboratory orbital shaker with large mounting surface and load capacity of up to 15 kg.  (more)Infinitely variable speed control from 0 – 300 rpm Digital display Orbital diameter 30 mm Ideal for vessels with a volume of more than 250 ml, e.g. round flasks, Erlenmeyer flasks, culture flasks and bottles Ideal for biological and microbiological growth tests and for production of stock solutions Continuous operation (endless) even under extreme loads Timer function Type of movement: orbital Shaking stroke: 30 mm Permissible shaking weight (incl. attachment): 15 kg Permissible ON time: 100 % Speed range: 0 – 300 rpm Speed display: 7 segment LED Timer: yes Timer display: scale Time setting range: 1 – 55 min Operating mode: timer and continuous operation Dimensions (WxHxD): 505 x 120 x 585 mm Weight: 26 kg

4-place microplate clamps on aluminum platform Speed Range: 150 – 1000 rpm Speed Accuracy: ±1 rpm Lo (more)ad Bearing Capacity: 5 kg Timer: 0 min to 99 hrs. 59 min Orbit: 2.5 mm Dimensions (DxWxH): 415 x 293 x 143 mm Platform Dimensions (DxW): 320 x 260 mm
