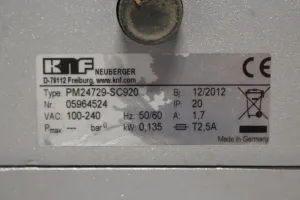

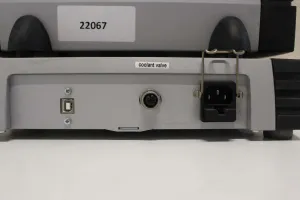

KNF SC 920 Vacuum Pump System

€3,499.00 (ex VAT)
item image

Description from the supplier

The KNF SC 920 Vacuum Pump System is a pre-owned, highly versatile piece of laboratory equipment that delivers precise vacuum control and offers a wide array of control functionalities suitable for a broad spectrum of laboratory applications. Its intuitive hand terminal interface facilitates seamless operation, allowing users to input process parameters through both a touchscreen and a rotary knob.

Adjustment Capabilities:

  • Units of measurement
  • Operating language
  • Operating mode
  • Process parameters, such as setpoint pressure or suction capacity, adjustable directly via the rotary knob

Depending on the selected operating mode, the hand terminal's graphical display presents the relevant process variables, giving users the flexibility to intervene in the ongoing process at any time through its integrated touchscreen and rotary knob. The hand terminal can be easily located via the vacuum pump system, emitting a signal tone in response.

Four Operating Modes:

1. Evacuate: Engages the vacuum pump system to evacuate a vacuum chamber with adjustable pump capacity.

2. Pressure Control: Maintains system pressure at a constant set value.

3. Automatic: Detects the sample's vapor pressure and adjusts the process pressure accordingly.

4. Individual Pressure Function: Controls the process based on a user-defined pressure curve, with the capability to set and repeat specific pressure profiles. Parameters like setpoint pressure and coolant valve operation (when used with the high-performance condenser accessory) can be programmed for various time intervals. Users have the option to switch to manual control at any stage in the process, with 'Evacuate' and 'Pressure Control' functions available for simultaneous use.

Specifications:

  • Flow Rate: 1.26 m³/h or 21 l/min at atmospheric pressure
  • Ultimate Vacuum: Less than 2.0 mbar absolute (with gas ballast valve in use)
  • Maximum Operating Pressure: 0.5 bar (relative)
  • Dimensions: 366 x 423 x 294 mm
  • Weight: 15 kg

This vacuum pump system is engineered for reliability and ease of use, making it a valuable addition to any laboratory setting.
