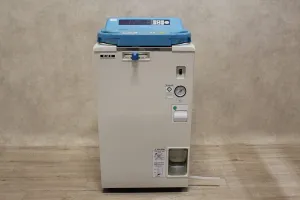

Hirayama HV-50L Autoclave

Electro-mechanical lid lock system Dual interlock mechanism Air removal time setting

Effective capacity: 50 L Chamber size (Ø x H): 300 x 710 mm Operation mode: 4 modes (LIQUID with warming, LIQUID without warming, SOLID, DISSOLUTION), one memory for each mode Temperature setting range sterilization: 105°C – 126°C (Variable) Temperature setting range dissolution: 60°C – 100°C (Variable) Temperature setting range warming: 45°C – 60°C (Variable) Time setting range sterilization: 1 min – 250 min, Remaining time is displayed Time setting range dissolution: 1 min – 60 min, Remaining time is displayed Time setting range warming: 20 h (fixed) Time setting range auto-start timer: Program autoclave to start 1 min to 1 week later Exhaust setting: 4 levels from 0 to 3 (Variable), In SOLID mode, it is fixed to level 3 (forced cooling) Exhaust setting: 0% – 100%, Valve opening degree setting for LIQUID mode Maximum working pressure: 0.26 MPa Thermometer: 5°C – 137°C Pressure gauge: 0 MPa – 0.4 MPa Alarms, error display: Low water heating, Temperature sensor wire disconnection, Over-temperature, Over-cool, Over-pressure, Abnormality in lid opening / closing lever lock Dimensions (WxDxH): 547 x 532 x 1045 mm Weight: 57 kg
