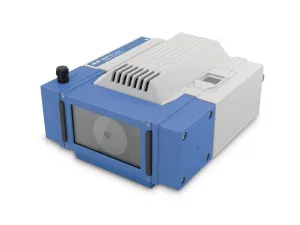

IKA MVP 10 Basic Vacuum Pump
Pump Rate Max.
1.7 m³/h (28.3 l/min)
Ultimate Vacuum
7 mbar
Protection Class
IP 54
Features
- Designed for dry, oil-free applications with a diaphragm pump made of PTFE or PTFE compounds for chemical resistance.
- Slimline, compact design ensures space-saving installation and long service life.
- Simple maintenance and straightforward servicing for ease of use.
- Operates quietly at 65 dB(A), suitable for laboratory environments.
- Includes a gas ballast valve for handling condensable vapors and preventing pump oil contamination.
The IKA MVP 10 Basic Vacuum Pump is an essential tool designed for dry, oil-free applications in laboratory settings. Featuring a robust diaphragm pump constructed from PTFE and PTFE compounds, it ensures exceptional chemical resistance and reliability. Its compact, space-saving design and quiet operation at 65 dB(A) make it ideal for environments where noise levels are a concern. Simple maintenance procedures and a gas ballast valve for managing condensable vapors further enhance its usability, making the MVP 10 a dependable choice for various vacuum applications.
INCLUDED:
The IKA MVP 10 Basic Vacuum Pump includes:
- MVP 10 basic vacuum pump
- Vacuum hose
- Silencer
- Y hose connector 8 mm
- Power Cord
- Operator's Guide
- Manufacturer's Documentation
- 2 Year Manufacturer Warranty ( + Additional Free 1 Year Warranty Extension with IKA Registration)
IKA MVP 10 Basic Vacuum Pump SpecificationsPump rate max. (50/60Hz)1.7 m³/hPump rate max. (50/60Hz)28.3 l/minFinal pressure without gas ballast7 mbarFinal pressure with gas ballast15 mbarSuction levels2Cylinder2Connection diameter suction side10 mmConnection diameter pressure side10 mmGas ballast valve yes Input pressure 7 - 1050 mbarSpeed (50Hz)1380 rpmSpeed (60Hz)1680 rpmNoise at low. pressure65 dB(A)Mode automaticyesMode manualyesMode pump %yesMode programyesDimensions (W x H x D)245 x 155 x 320 mmWeight11.5 kgPermissible ambient temperature10 - 40 °CPermissible relative humidity80 %Protection class according to DIN EN 60529IP 54Voltage230 / 115 / 100 VFrequency50/60 HzPower input180 W
Pump rate max. (50/60Hz) | 1.7 m³/h |
Pump rate max. (50/60Hz) | 28.3 l/min |
Final pressure without gas ballast | 7 mbar |
Final pressure with gas ballast | 15 mbar |
Suction levels | 2 |
Cylinder | 2 |
Connection diameter suction side | 10 mm |
Connection diameter pressure side | 10 mm |
Gas ballast valve | yes |
Input pressure | 7 - 1050 mbar |
Speed (50Hz) | 1380 rpm |
Speed (60Hz) | 1680 rpm |
Noise at low. pressure | 65 dB(A) |
Mode automatic | yes |
Mode manual | yes |
Mode pump % | yes |
Mode program | yes |
Dimensions (W x H x D) | 245 x 155 x 320 mm |
Weight | 11.5 kg |
Permissible ambient temperature | 10 - 40 °C |
Permissible relative humidity | 80 % |
Protection class according to DIN EN 60529 | IP 54 |
Voltage | 230 / 115 / 100 V |
Frequency | 50/60 Hz |
Power input | 180 W |
