Edwards E2M28 Rotary Vane Vacuum Pump, 230V, Cat. #: A37324930

$5,995.00 (ex VAT)
item image

Description from the supplier

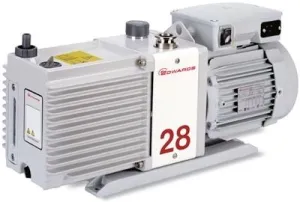

Edwards E2M28 Rotary Vane Vacuum Pump, 230V, Cat. #: A37324930


Ultimate Vacuum
1 x 10-4 mbar
Maximum Pumping Speed
33.0 m3h-1
Displacement
38.9 m3h-1

  • Quiet operation ensures a more comfortable working environment, ideal for spaces where noise reduction is crucial.
  • Features a compact, freestanding design for flexible use across various settings without requiring additional support.
  • Proven reliable performance in a wide range of laboratory and industrial applications, showcasing its versatility and dependability.
  • Incorporates a gas ballast valve, essential for effectively pumping vapor without condensation inside the vacuum pump.
  • Built-in motor protection systems include cooling by an external fan and thermal overload protection that automatically resets.
  • Maintenance is simplified with an O-ring sealed sight glass for easy monitoring of oil levels and conditions at a glance.
  • Designed for effortless oil changes, featuring an oil drain port at the end of the oil box for convenient oil removal.
  • Facilitates easy oil top-ups through a large filling port and a recessed top, minimizing spills and maintenance time.


The EM range of oil‑sealed rotary pumps – renowned for their high ultimate vacuum, rapid pumping speed, quiet operation and ability to handle vapour – have become the industry standard for laboratory and light industrial applications. The pump is a freestanding unit with the drive provided through a flexible coupling by either a single‑phase or three‑phase (four pole) motor.Click Here to View Product Video

  • Edwards Ultragrade 19 Oil
  • Power Cord
  • Operator's Manual
  • Manufacturer's Documentation
  • 1 Year Manufacturer's Warranty

Product details

50 Hz32.2 m3h-1
60 Hz38.9 m3h-1
50 Hz27.5 m3h-1
60 Hz33.0 m3h-1
50 Hz1440 r min-1
60 Hz1720 r min-1
without gas ballast (partial pressure)1 x 10-4 mbar
without gas ballast (total pressure)1 x 10-3 mbar
with full gas ballast (partial pressure)2 x 10-1 mbar
Maximum Water Vapor Inlet Pressure:30 mbar
Maximum Water Vapor Pumping Rate0.7 kg h-1
Oil Capacity1.32 L
Recommended Oil TypeUltragrade 19
Weight44 kg / 97 lbs
Electrical Requirements230V (220-264V), 50/60Hz
