Edwards E2M18 Vacuum Pump

Marshall Scientific$5,449.00 (ex VAT)
item image

Description by the supplier

Ultimate Vacuum

1x10-3 mbar

Inlet Connection

NW25

Displacement

25.0 m3h-1 / 14.7 ft3min-1



Features

- High ultimate vacuum and rapid pumping speed ensure efficient operation across a wide range of laboratory and industrial applications

- Quiet operation provides a comfortable working environment, reducing noise in sensitive areas

- Freestanding design driven by a flexible coupling with either a single-phase or three-phase (four pole) motor

- Achieves excellent vacuum levels, including 1 x 10⁻³ mbar without gas purge and 1.5 x 10⁻¹ mbar with gas purge

- Equipped with NW25 inlet connection and a removable 15 mm nozzle outlet, allowing flexible integration into existing systems

- Operates efficiently within a temperature range of 13-40°C, accommodating different environmental conditions

- Facilitates easy oil changes with a maximum oil capacity of 1.05 liters and a minimum capacity of 0.75 liters

- Ideal for use with analytical instruments, leak detectors, helium research, and for backing turbomolecular pumps, showcasing its versatility

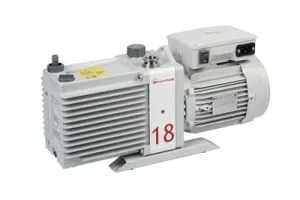

Edwards E2M18 Vacuum Pump

The EM range of oil‑sealed rotary pumps – renowned for their high ultimate vacuum, rapid pumping speed, quiet operation and ability to handle vapour – have become the industry standard for laboratory and light industrial applications. The pump is a freestanding unit with the drive provided through a flexible coupling by either a single‑phase or three‑phase (four pole) motor.Click Here to View Product Video


INCLUDED:

The Edwards E2M18 Vacuum Pump includes:

- 1 Liter of Edwards Ultragrade 19 Oil

- Power Cord

- Manufacturer's Documentation

- Operator's Manual

- 1 Year Manufacturer's Warranty

Product details
Displacement (50Hz)20.5 m3h-1 /
Displacement (60Hz)25.0 m3h-1 /
Speed (Pneurop 6602) 50 Hz17.0 m3h-1 /
Speed (Pneurop 6602) 60Hz20.4 m3h-1 /
Ultimate vacuum (total pressure)
without gas purge1 x 10-3 mbar /
with gas purge1.5 x 10-1 mbar /
with Fomblin®1 x 10-2 mbar /
Inlet connectionNW25
Outlet connection**Nozzle 15 mm external Ø removable from 3/4 in BSP tapped hole
Max permitted pressure at outlet0.5 bar gauge /
7 psig
Max inlet pressure20 mbar /
for water vapour15 Torr
Max water vapour pumping rate0.3 kg h-1
Operating temp range13-40°C
Nominal Rotation speed 50/60Hz1440/1720 rpm
Power connector 1-ph*IEC EN60320 C19
Motor power 50 Hz0.55 kW
Motor power 60 Hz0.75 kW
Weight39 kg / 86 lbs
Noise @ 50Hz57 dB(A)
Oil capacity - max1.05 litre
Oil capacity - min0.75 litre
Recommended oil
