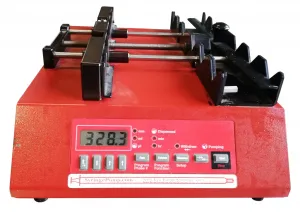

NE-1600 Six-Syringe Pump

New Era Pump Systems NE-1600 Six-Syringe Pump

Model: NE-1600
Syringe sizes: NE-1600 Up to 140ml in 4 channels or 60mL in 6 channels
Number of Syringes: Six
Voltage: 220 Volts with Included 12VDC Power Adapter
Maximum Speed: 3.4917 cm/min
Maximum pumping rate: 1163 mL/hr with a B-D 60 cc syringe
Dimensions: 10 1/4” x 15” x 5” High

Syringe Size Maximum Rate Minimum Rate
0.5 µL 17.45 µL/hr 0.001 µL/hr
1 mL 36.19 mL/hr 0.452 µL/hr
3 mL 153.2 mL/hr 1.914 µL/hr
5 mL 255 mL/hr 3.185 µL/hr
10 mL 415.9 mL/hr 5.195 µL/hr
20 mL 661.4 mL/hr 8.26 µL/hr
30 mL 862.8 mL/hr 10.78 µL/hr
60 mL 1451 mL/hr 18.1 µL/hr
140 mL 2376 mL/hr 29.7 µL/hr
