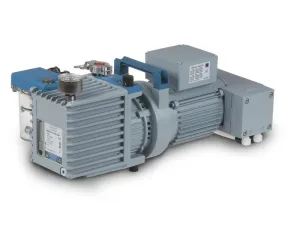

VACUUBRAND RC 6 Chemistry-HYBRID Pump
VACUUBRAND RC 6 Chemistry-HYBRID Pump
Ultimate Vacuum
0.002 mbar (0.0015 Torr)
Maximum Pumping Speed
4.1 CFM at 60Hz
Number of Heads/Stages
2/2+2
Features
- Reduced internal corrosion, even when working with corrosive vapors
- Oil changes typically reduced 90% or more compared with rotary vane pumps alone
- Most economical solution: In practical operation a cold trap is often no longer necessary
- Ease of maintenance due to telescopic design
The RC 6 chemistry-HYBRID pump is a combination of a two-stage rotary vane pump and a two-stage chemistry diaphragm pump for optimized corrosion resistance. The diaphragm pump maintains the oil reservoir under vacuum to keep the partial pressures of solvent vapors at levels below their condensation points and to reduce largely the concentration of oxygen and corrosive gases. Therefore, the RC 6 chemistry-HYBRID pump has a much higher solvent vapor pumping capability and resistance to aggressive gases than conventional rotary vane pumps.
INCLUDED:
The VACUUBRAND RC 6 Chemistry-HYBRID Pump includes:
- Power Cord
- Operator's Manual
- Manufacturer's Documentation
- 2 Year Manufacturer's Warranty
| Max. pumping speed 50 Hz | 5.9 m 3/h |
| Max. pumping speed 60 Hz | 4.1 cfm |
| Ultimate partial vacuum (abs.) without gas ballast | 4 x 10 -4 mbar |
| Ultimate vacuum | 2 x 10 -3 mbar / 1.5 x 10-3 torr |
| Ultimate vacuum with gas ballast | 1 x 10 -2 mbar / 0.75 x 10-2 torr |
| Number of heads | 2 |
| Number of stages | 2 + 2 |
| Water vapor tolerance with gas ballast | >> 40 mbar |
| Lower ambient temperature (operation) | 12 °C |
| Upper ambient temperature (operation) | 40 °C |
| Lower ambient temperature (storage) | -10 °C |
| Upper ambient temperature (storage) | 60 °C |
| Max. back pressure (abs.) | 1.1 bar |
| Oil capacity (B-Oil) min. | 0.34 l |
| Oil capacity (B-Oil) max. | 0.50 l |
| Inlet connection | Small flange KF DN 16 / hose nozzle DN 10 mm |
| Outlet connection | Hose nozzle DN 8-10 mm |
| Rated motor power | 0.3 kW |
| Rated motor speed at 50/60 Hz | 1500/1800 min -1 |
| Protection class IEC 60529 | IP 40 |
| Dimension L in mm | 526 mm |
| Dimension B in mm | 302 mm |
| Dimension H in mm | 226 mm |
| Weight | 25 kg |
| Noise (sound pressure level) in dBA at 50 Hz or 1500 rpm/62% (VARIO)/1500 rpm (VARIO-SP)/12500 Upm (VACUU·PURE®) | 50 dBA |
| NRTL certification | No |
| Items supplied | Pump completely mounted, ready for use after oil filling (bottle 0.5 l enclosed), with manual. |
| Rated mains voltage range 1 | 100-120 V |
| Mains frequency 1 | 50-60 Hz |
