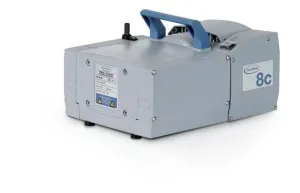

VACUUBRAND ME 8C NT Chemistry Diaphragm Pump

$5,913.00 (ex VAT)
item image

Description from the supplier

VACUUBRAND ME 8C NT Chemistry Diaphragm Pump


Ultimate Vacuum
70 mbar
Max. pumping speed at 60 Hz
4.6 cfm
Number of Heads/Stages
4/1

  • Outstanding chemical resistance and superior vapor tolerance
  • Exceptionally high performance even at low vacuum
  • Compact design
  • Whisper quiet and very low vibration
  • Long diaphragm life, maintenance-free drive system
  • Power Cord
  • Operator's Manual
  • Manufacturer's Documentation
  • 2 Year Manufacturer's Warranty

Product details

Max. pumping speed 50 Hz7.1 m 3/h
Max. pumping speed 60 Hz4.6 cfm
Ultimate vacuum70 mbar / 52 torr
Number of heads4
Number of stages1
Lower ambient temperature (operation)10 °C
Upper ambient temperature (operation)40 °C
Lower ambient temperature (storage)-10 °C
Upper ambient temperature (storage)60 °C
Max. back pressure (abs.)1.1 bar
Inlet connectionHose nozzle DN 8-10 mm
Outlet connectionHose nozzle DN 8-10 mm
Rated motor power0.25 kW
Rated motor speed at 50/60 Hz1800 min -1
Protection class IEC 60529IP 40
Dimension L in mm328 mm
Dimension B in mm243 mm
Dimension H in mm198 mm
Weight14.3 kg
Noise (sound pressure level) in dBA at 50 Hz or 1500 rpm/62% (VARIO)/1500 rpm (VARIO-SP)/12500 Upm (VACUU·PURE®)45 dBA
NRTL certificationYes
Items suppliedPump completely mounted, ready for use, with manual.
Rated mains voltage range 1120 V
Mains frequency 160 Hz
