KNF UN840.3FTP IP44 Diaphragm Pump

Marshall Scientific$2,993.00 (ex VAT)
item image

Description by the supplier

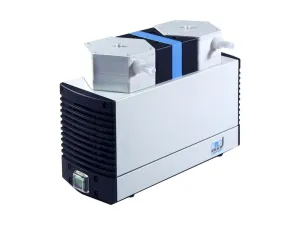

KNF UN840.3FTP IP44 Diaphragm Pump



Ultimate Vacuum

8 mbar (abs.)

Maximum Flow Rate

34L/min (2.04 m3/h)

Protection Class

IP44



Features

- Pure transfer, evacuation and compression

- Highly compatible with vapors and condensation

- Chemically resistant flowpath

- Suitable for highly aggressive or corrosive gases and vapors

- Environmentally friendly

- Maintenance-free





TheKNF UN840.3FTP IP44 Diaphragm Pump is dry-running device used in a wide range of laboratoryapplications. They transfer, compress and pump down without contamination. Theheart of these very compact pumps is a KNF structured diaphragm. This patenteddiaphragm was stress-optimized using the Finite Elements method. As a result,KNF was able to make the pump smaller while increasing the service life of thediaphragm. This pump is 115V. INCLUDED:

The KNF UN840.3FTP IP44 Diaphragm Pump includes:

- Power Cord

- Operator's Guide

- Manufacturer's Documentation

- 1 Year Manufacturer's Warranty

Product details
Maximum Flow Rate34L/min (2.04 m 3/h)
Ultimate Vacuum8 mbar (abs.)
Operating Pressure1 bar (rel.)
Pump Head MaterialPTFE
Diaphragm MaterialPTFE coated
Valve MaterialFFPM
Hose ConnectionsID 10
Protection ClassIP 44
Permissible Ambient Temperature5°C to 40°C
Dimensions (L x H x W)13.42 x 8.89 x 6.54 in. (34.1 x 22.6 x 16.6 cm)
Weight27.78 lb. (12.6 kg)
Electrical Requirements100-230V, 50/60Hz, 280W
