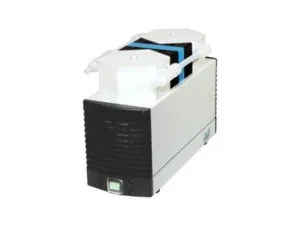

KNF UN840.1.2FTP IP44 Diaphragm Pump
Ultimate Vacuum
90 mbar (abs.)
Maximum Flow Rate
65L/min (3.9 m3/h)
Protection Class
IP44
Features
- Pure transfer, evacuation and compression
- Highly compatible with vapors and condensation
- Chemically resistant flowpath
- Suitable for highly aggressive or corrosive gases and vapors
- Environmentally friendly
- Maintenance-free
Thechemically-resistant UN840.1.2FTP diaphragm pump is a oil-free deviceused in a wide range of laboratory applications. These pumps transfer and pumpdown without contamination.The heart ofthis very compact pump is a KNF structured diaphragm. This patented diaphragmwas stress-optimized using the Finite Elements method. As a result, we wereable to make the pump smaller while increasing the service life of thediaphragm and improving performance. This pump is 115V. INCLUDED:
The KNF UN840.1.2FTP IP44 Diaphragm Pump includes:
- Power Cord
- Operator's Guide
- Manufacturer's Documentation
- 1 Year Manufacturer's Warranty
Maximum Flow Rate | 65L/min (3.9 m 3/h) |
Ultimate Vacuum | 90 mbar (abs.) |
Operating Pressure | 1 bar (rel.) |
Pump Head Material | PTFE |
Diaphragm Material | PTFE coated |
Valve Material | FFPM |
Hose Connections | ID 10 |
Protection Class | IP 44 |
Permissible Ambient Temperature | 5°C to 40°C |
Dimensions (L x H x W) | 13.42 x 8.89 x 6.29 in. (34.1 x 22.6 x 16.0 cm) |
Weight | 27.78 lb. (12.6 kg) |
Electrical Requirements | 100-230V, 50/60Hz, 280W |
