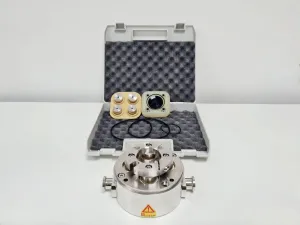

3/4" QuattroFlow QF12IES Pump Head Chamber for QF1200 & QuattroFlow Service Kit

Technical features Flow rate (max.) 6 l / min Final vacuum (max.) 100 mbar (abs.) Pressure (max.) 2. (more)4 bar (rel.) Permissible fluid temperature 5-40 ° C Valve material: FFPM Diaphragm material PTFE coated Pump head material: PPS Applications Filtration Aspiration of liquids Solid phase extraction Qualitative characteristics Clean operation, 100% oil-free Corrosion resistant Compact, silent and reliable Ecological Maintenance free Download the data sheet for further information and accessories NOT SURE WHICH VACUUM PUMP YOU NEED? Try following our guide to KNF pumps: VACUUM PUMPS FOR THE LABORATORY Or download the KNF guide: THE IDEAL DIAPHRAGM PUMP FOR EVERY APPLICATION

The offered instrument / system is fully functional tested and ready to use. FURTHER DETAILS TO FOLL (more)OW

The Watson Marlow 405 Pump provides users with digital control over a two-channel precision pump. Th (more)is high flow laboratory pump has a speed range up to 200 rpm with a flow rate up to 370ml/min per channel. This microprocessor controlled, dual channel peristaltic pump is easy to control from the upfront digital keypad, allowing users to start, stop, reverse direction, control speed level, and initiate rapid priming. This digital lab pump is built for use with 1.6 mm tubing in sizes 12, 13, 14, & 16 (0.5 – 64.8 mm bore) and spring-loaded track to maximize tube life and flow precision against pressures up to 2 bar. The pump comes with pumphead designed with twin four roller rotors, spring loaded track, and adjustable occlusion lever allowing two individual channels of flow.

VACUUBRAND PC 201 NT Chemistry Pumping Unit Ultimate Vacuum 1.5 mbar Max. pumping speed at 60 Hz 2 (more).2 cfm Number of Heads/Stages 4/3 Features - Outstanding chemical resistance and superior vapor tolerance - Exceptionally high performance even at low vacuum - Excellent ultimate vacuum even with gas ballast - Manual vacuum control, analog vacuum display - Excellent environmental friendliness due to efficient solvent recovery This chemistry pumping unit has a wide range of applications like evacuation, evaporation and pumping of gases and vapors in chemical, biological and pharmaceutical laboratories. Typical applications are rotary evaporators, vacuum concentrators and vacuum drying ovens with high boiling solvents. The manual flow control valve regulates the effective pumping speed at the vacuum connection; the vacuum manometer offers an analog vacuum display. The separator at the inlet (AK), made of glass with a protective coating, retains particles and liquid droplets. The exhaust waste vapor condenser enables near-100-percent solvent recovery.INCLUDED: The VACUUBRAND PC 201 NT Chemistry Pumping Unit includes: - Power Cord - Operator's Manual - Manufacturer's Documentation - 2 Year Manufacturer's Warranty

KNF IP65 FEM 1.02 TT.18S Liquid Pump KNF SIMDOS diaphragm pumps offer a variety of options to suit m (more)ost laboratory liquid metering and dosing needs. The FEM 1.02 TT.18S version has a liquid transfer flow rate of 0.03 – 200 mL/min and discreet dosing volumes of 0.03 – 999 mL. It is constructed with the following chemically-resistant flow path materials: PVDF head, PTFE covered diaphragm, and FFKM valves. The easy-to-read display combined with a touch control knob makes programming and access of all functions very intuitive. All SIMDOS pumps are simple and intuitive to operate, compact, and quiet, making them a welcome addition to any business or academic lab. They are effective against pressures of up to 85 psig and transfer viscous media up to 500 centistokes (reduced flow rate above 150 cSt). The integrated software permits the transfer parameters to be modified for a range of different viscosities at the touch of a button. With a durable and IP65 splash-proof design, these pumps are maintenance free, and provide trouble-free ±2% accuracy and ±1% repeatability performance. SIMDOS 02 pumps are self-priming up to 6.6 feet of water, and can run dry indefinitely without damage. Also, unlike peristaltic pumps, there are no troublesome tubing to break or fatigue.INCLUDED: The KNF IP65 FEM 1.02 TT.18S Liquid Pump includes: - Power Cord - Operator's Guide - Manufacturer's Documentation - 1 Year Manufacturer's Warranty
