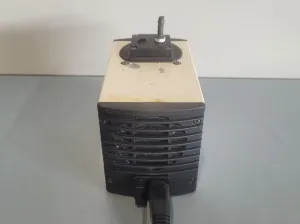

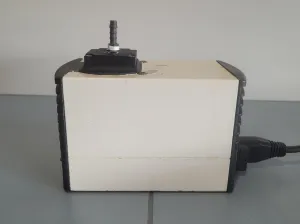

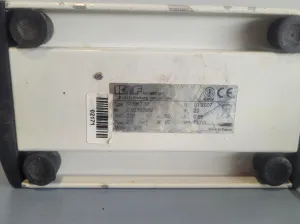

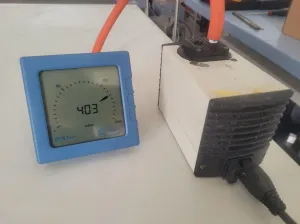

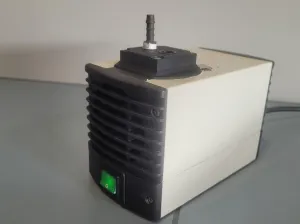

KNF Mini diaphragm vacuum pump LABOPORT N 86 KT.18

Edwards nEXT240D - ISO100 160W Turbomolecular Pump Ultimate Vacuum <6×10⁻⁸ mbar Inlet Connection  (more)DN100ISO-K Peak Pumping Speed (H2) 165 l/s Features - Reaches an ultimate pressure of 6.000 × 10⁻⁸ mbar for precise vacuum applications - Features built-in electronics compatible with TAG and TIC controllers for easy system integration - Allows for in-field servicing with minimal tooling, reducing maintenance time and cost - Upper magnetic bearing ensures clean vacuum conditions, low power consumption, and reduced vibration - Incorporates a molecular drag stage for improved pumping speed and compression ratios - Designed for long-lasting performance and low cost of ownership, enhancing value - Comes with a standard inlet screen to protect the pump and ensure optimal functionality - Offers a high level of modularity for maximum flexibility and customization nEXT turbomolecular pumps are hybrid bearing pumps with integrated controllers for pumping speeds from 47 to 1250 ls-1.The nEXT is a hybrid bearing compound turbomolecular pump. nEXT pumps combine our proven bearing technology (oil lubricated ceramic lower bearing with dry permanent magnetic upper bearing), an improved rotor design with a new molecular drag stage to deliver improved pumping speed and compression ratios, and user serviceability. They feature 24 V to 48 V DC sensorless motors with a built-in drive that is fully compatible with our range of TAG and TIC controllers.INCLUDED: The Edwards nEXT240D - ISO100 160W Turbomolecular Pump includes: - One Year Manufacturer's Warranty

Chemical resistant vacuum pump consisting of N 840 G diaphragm vacuum pump, support base, a separato (more)r on the suction side, a high-performance condenser on the pressure side and the Wifi device for remote vacuum control. Thanks to the high compatibility of steam and condensate, the system is perfectly suited for extremely aggressive / corrosive gases and vapors. Technical features Flow rate (max.): 34 l / min Final vacuum (max.): 6 mbar (abs.) Pressure (max.): 0.1 bar (rel.) Flow rate (m³/h) at atm. pressure: 2,04 Permissible fluid temperature between 5 and 40°C Valve material: FFPM Diaphragm material: PTFE coated Pump head material: TFM ™ PTFE Applications Vacuum oven Distillation Rotary evaporation Multi-user vacuum systems Qualitative characteristics Automatic and accurate recognition and monitoring of the boiling point via the integrated ramp function High recovery rates even with low boiling point solvents Wifi control device for safe operation from the outside of closed fume hoods Vacuum system comprising chemically resistant diaphragm vacuum pump, base plate, separator on suction side and high performance condenser on pressure side Modular expandable 100% oil-free transfer Thereby pure transferring, evacuation and compression of gases High level of vapor and condensate compatibility Ideal for extremely aggressive / corrosive gases and vapors Integrated gas ballast valve 3-color status display for in operation / stand-by / error Integrated rotational speed control Environmentally friendly Start against ultimate vacuum of the pump Download the data sheet for further information and accessories. NOT SURE WHICH VACUUM PUMP YOU NEED? Try following our guide to KNF pumps: VACUUM PUMPS FOR THE LABORATORY Or download the KNF guide: THE IDEAL DIAPHRAGM PUMP FOR EVERY APPLICATION

The offered instrument / system is fully functional tested and ready to use. FURTHER DETAILS TO FOLL (more)OW

The offered instrument / system is fully functional tested and ready to use. FURTHER DETAILS TO FOLL (more)OW

ECO Silver Lauda - Cooling Thermostat LAUDA ECO with reliable technology and modern design for tempe (more)rature ranges from -50°C to 200°C depending of the models. Microprocessor management and integrated cooling system. Silver (monochromatic LCD graphic display), both equipped with mini USB interface. They are distinguished by their range of functions, ease of use and clarity of the display, allowing maximum comfort of use for the operator. These models offer the highest performance conveyed by the LAUDA SmartCool intelligent system, for maximum energy savings. The circulation pump can be adjusted to six levels and the comprehensive range of ECO devices offers cooling capacities from 180 to 700 watts. Refrigerated thermostats comes standard with tank lid, pump connections and are available with air and water cooling. A drain cock on the back of the device makes changing the liquid in the tank easy and safe.Thermostatic bath/circulator with latest microprocessor technology and integrated cooling system MAIN FEATURE • Monochrome grafic LCD display for simultaneous indication of actual and set value • User friendly menu navigation in plain language • Easy input via cursor and soft keys. Additional Tmax key for overtemperature protection • Fully electronic continuous controller with PID action • Safety class III for operation with flammable and non-flammable liquids. Overtemperature cut-out adjustable via menu • Vario pump with six adjustable performance levels • Easy control of the flow rate between internal and external circulation during operation without contact with the bath • USB interface as standard • Upgradeable with an interface module (analogue module, contact module, RS 232/485 module, Profibus, Ethernet-USB module) • Upgradeable with Pt 100/LiBus module for external control and remote control via Command console • Integrated programmer, 1 programme with max. 20 segments • Pump connectors with plastic nipples 13 mm as standard • Bath vessel made from stainless steel with drain valve • Condenser cooling Air • Utilizes natural refrigerants Graph of cooling performance of ECO Silver LAUDA cryostats. Performance graph of the pump pressing on the six levels. TECHNICAL VISUALIZATION Display 1 - Status display 2 - Display of the internal or external temperature value (T-int or T-ext) 3 - Soft-key bar Control panel 4 - Soft keys, left and right 5 - Enter key 6 - Cursor keys for Up, Down, Left and Right. 7 - T max key: display and adjustment of the overtemperature switch-off point 1 - USB interface 2 - Upper module receptacle approx. 51 mm x 27 mm for analog, RS 232/485 module, Profibus module and contact module 3 - Lower module receptacle approx. 51 mm x 17 mm for Pt100/LiBus module 4 - Connection socket 75S for control cable of cooling underpart for RE 1050 S 5 - Rating label 6 - Connection socket 51H for power supply between the control head and cooling underpart 7 - Mains connecting lead 1 - Pump connection: Outflow and return with fittings 13 mm diameter (plastic) 2 - Bath cover 3 - Front grip recess 4 - Ventilation grill (both sides) 5 - Front panel (removable without tools) 6 - Four feet 1 - Rating label 2 - Control cable of cooling underpart (only with RE 1050 S) 3 - Rear grip recess 4 - Connecting lead between the control head and cooling underpart 5 - Bath draining tap 6 - Bath drain point 7 - Ventilation grill

Reactor system for melts in a frame, with the following components: Oil bath (Lauda PJ12) Jacketed S (more)tainless steel flow reactor (314 ml, 200°C, 150 bar) Heated 2 L storage vessel Heat tracing + control unit Bischoff pump HPD multitherm 3351 + special pump head + heating + control unit Pump from instrument solutions to pump supercritical fluids

Single-channel peristaltic pump combines reproducible flow rates with simple operation, either as a  (more)standalone unit, or interfaced with programmable fraction collectors. Flow rate: 0.6 – 500 ml/h Work temperature: 0 – 40°C Maximum backpressure: 2 bar Weight: 1.6 kg

CY10 scale’s multi functions The CY10 series multifuncional scale is designed for fast, accura (more)te and repeatable weight determination. It comes with an advanced PUE CY10 terminal, and that means working comfort with a 10-inch high-resolution display with a smooth and intuitive interface. Software for special tasks Thanks to the terminal advanced software, the CY10 multifuncional scale: Cooperates with up to 2 weighing platforms Continuously updates all statistical data after the next measurement is entered into the balance’s memory – either globally (regardless of the weighed commodity) or separately for each weighed commodity selected from the database Has a Tare mode expanded to include End-product issue mode capability Works with RFID tags* (accessing personal data as well as marking specific goods or recipe ingredients in the database). Multifunctional scale, including labelling scale If you need a labeling scale, the CY10 is the perfect solution. With a terminal that: Cooperates with the computer program Label Editor R02 Is compatible with ZEBRA label printers Supports single labels, bulk labels and bulk from bulk labels Allows import/ export of label designs using a pendrive Enables you to assign labels to goods or customers and print a global label The CY10 series multifuncional scale can operate as a labeling scale. Light or dark? Which color theme will you set on your CY10 balance? Both are user-friendly and clear, but we are curious which one you like more. Modbus TCP/IP is one of the most popular communication protocols in industrial automation. Implementing it in the 5Y balances and CY10 scales makes the devices of this series friendly to automation integrators. A balance or scale in a Modbus system is a slave device and performs tasks specified by the master device which is most often a PLC. Protocol Modbus TCP/IP in the 5Y balances and C10 scales enables, among other things, the realization of mass readout, zeroing and tare functions of the device, as well as tare settings and MIN and MAX thresholds. * RFID ISO/IEC 14443 Type A, 13,56 MHz

IKA ICC 150 Lite Compact Immersion Circulator Working Temperature Room Temp. to 150°C Temperature St (more)ability DIN 12876 ±0.05 K Bath Depth Min. (0 Bar Back Pressure) 5.9 in. (15.0 cm) Features - High-quality compact immersion circulator for efficient operation - PID temperature control ensures precise and reliable performance - LED displays for working and safety temperature readings - Approved for use with flammable liquids in accordance with DIN 12876, safety class III - Integrated pressure/suction pump for internal and external applications - Optical and acoustic warning functions enhance operational safety - Adjustable safety circuit with a range of 0 to 160°C - Integrated stand simplifies cleaning and protects key components - Durable, low-maintenance design with a coated stainless steel housing - USB and RS232 interfaces for monitoring, control, and documentation The IKA ICC 150 Lite Compact Immersion Circulator is a versatile and high-performance solution for precise temperature control in laboratory applications. Designed with advanced PID technology, it provides reliable temperature stability to ±0.05 K across a working range up to 150°C. LED displays offer clear and real-time readings for both working and safety temperatures, while optical and acoustic warning functions enhance operational safety. Its integrated pressure/suction pump supports both internal and external applications, delivering exceptional flexibility in a compact design. Safety and durability are key features of the ICC 150 Lite. Approved for use with flammable liquids in accordance with DIN 12876, safety class III, it includes an adjustable safety circuit (0 to 160°C) and overflow detection to ensure secure operation. The integrated stand simplifies cleaning and protects critical components, while the coated stainless steel housing ensures durability and low maintenance. With USB and RS232 interfaces for seamless monitoring and control, this immersion circulator is an essential tool for efficient and reliable temperature management in any laboratory. INCLUDED: The IKA ICC 100 Lite Compact Immersion Circulator includes: - ICC 150 Lite Compact Immersion Circulator - Power Cord - Operators Manual - Manufacturer's Documentation - Two Year Manufacturer's Warranty
