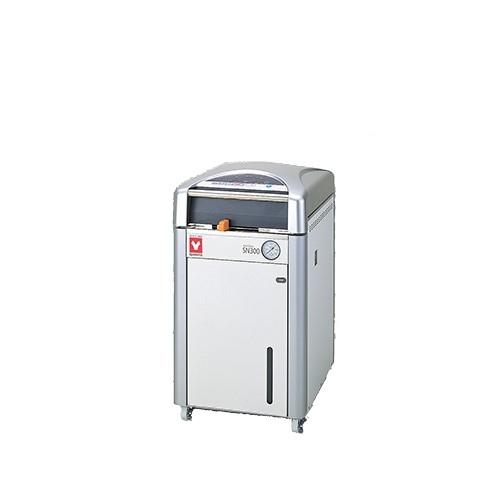

Yamato SN-300C Standard Sterilizer Without Dryer 32L (100-120V)
Product Description
Yamato SN-300C Standard Sterilizer (without dryer) with a 32L chamber volume, designed for efficient steam sterilization in laboratory settings.
-
Operation and Functions:
- Maximum sterilizing temperature: 135°C suitable for protein modification
- Supports ordinary sterilization, culture medium sterilization, liquid sterilization, and melting of culture mediums
- Customizable and savable programs for repeated protocols
- Timer start, pre-heating function, and cooling fan for reduced cycle and cool-down times
- Mobile design equipped with wheels for ease of movement
-
Safety Features:
- Lid interlock mechanism
- Drain bottle unset alarm
- Memory malfunction detection
- Automatic shutdown on malfunction
- Self-diagnostic functions
-
Technical Specifications:
- Model code: SN300
- System: Automatic high-pressure steam sterilization
- Operating temperature range: 45–135℃, with defined temperature ranges for preheating, heat-retention, solution, and sterilization processes
- Maximum working pressure: 0.255 MPa
- Ambient temperature range: 5–35℃
- Manual lid opening with interlock for safety
- Heater: Two 800W units at 100V
- Exhaust system: One exhaust valve and one slow release valve
- Connection ports (3 total): sample temperature sensor port (1/4"), chamber temperature sensor port (1/4"), pressure sensor port branching from solenoid valve tubing
- Cooling fan: Axial fan motor type
- Temperature control: PID microprocessor control with digital display and setting via ▲/▼ keys
- Timer: Range from 0 or 1 minute to 99 hours 59 minutes, with 1-minute resolution
- Operation modes include instrument sterilization, liquid sterilization, sterilization and keep warm, melting and keep warm, and custom program courses
- Additional functions: key locking, presetting, saving, forced cooling, sample temp sensor option, pattern locking, error log saving (up to 20), accumulated and present time display, ON/OFF beeping settings
-
Safety Devices:
- Sensor failure detection
- SSR (solid state relay) short-circuit protection
- Broken heater wire detection
- Idle heating prevention (liquid expansion type)
- Alarm for absent drain bottle
- Lid lock failure detection
- Memory error detection
- Pressure relief valve rated at 0.255 MPa
-
Accessories Included:
- 2 stainless steel mesh baskets (Dia. 262 × D 204 mm)
- OSM-70 vapor cup ×1
- Drain bottle ×1
- Drain board ×1
- Chemical indicator set (30 pieces)
- Filter ×1
-
Dimensions and Weight:
- Internal chamber dimensions (W × H): 300 × 445 mm
- External dimensions (W × D × H): 460 × 590 × 848 mm
- Internal capacity: 32 liters
- Weight: 75 kg
-
Power Source:
- AC 200–240 V, single phase (12.5–15 A, 50/60 Hz)
Item Stats
Product details
| Item Code | 241006 |
| Model | SN300 |
| System | Automatic high-pressure steam sterilization |
| Operating temperature range | 45～135℃ 45～80℃（Preheating temperature）/45～60℃（Heat-retention process）/65～100℃（Solution process）/105～135℃（Sterilization） |
| Max. working pressure | 0.255MPa |
| Ambient temperature | 5～35℃ |
| Lid | Manual upward opening with an interlock for safety |
| Heater | 100V, 800W×2 units |
| Exhaust valve | One exhaust valve and one slow release valve |
| Connection ports for optional accessories | Total 3 ports. Female thread for sample temp. sensor (1/4" ), Female thread for chamber temp. sensor (1/4" ), Female thread pressure sensor (Branching from the solenoid valve tubing) |
| Cooling fan | Axial fan motor |
| Temp. controller | PID control by microprocessor |
| Temp. display / setting | Digital display / digital setting by ▲/▼ keys |
| Timer / Timer resolution | 0 or 1 min. to 99 hrs 59 min. / 1 min. |
| Operation mode | Instrument sterilization course, Liquid sterilization course, Sterilization and keep warm course, Melting and keep warm course, Customer-programmed course |
| Other function | Key locking, Presetting, Saving, Preheating, Forced cooling, Sample temperature sensor (option), Pattern locking, Up to 20 error log saving, Display of accumulated working time / Present time, ON-OFF beeping setting |
| Safety device | Sensor failure detection, SSR short-circuit, Broken heater wire, Prevention of idle heating (Liquid expansion type), Alarm against the absence of a drain bottle, Failure in locking the lid, Memory error detection, Pressure relief valve (0.255 MPa) |
| Accessories | 2 pcs. stainless steel mesh basket (Dia.262×D204mm), OSM-70/Vapor cup×1, Drain bottle×1, Drain board×1, Chemical indicator 1 set (30 pieces), Filter×1 |
| Internal dimensions（W×H mm） | 300×445mm |
| External dimensions（W×D×H mm） | 460×590×848mm |
| Remarks(dimensions) | Internal capacity 32L |
| Power Source | AC200～240V Single phase |
| Weight | 75kg |
