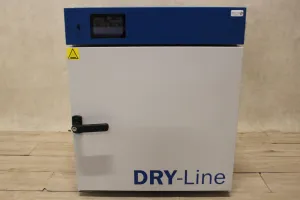

VWR DRY-Line 56 Prime Oven

The DRY-Line drying ovens are designed for all standard drying and tempering work and for sterilizing glassware. They have a temperature range between 50 and 300°C and are intended for use in biological, chemical, medical, pharmaceutical and physical laboratories.

Multifunctional microprocessor control with 4.3″ color touchscreen

memory for 5 user programs

Five-segment temperature-time profile, rapid change of set temperature and set time during a running program

Scheduled program start (setting date and time) and run function up to 255 times or endlessly

Adjustable ability to stop at a certain set point for temperature, from 1 min to 366 days or continuous operation

Adjustable ramp times (days/hours/minutes)

Overheating protection class 3.1

Automatic air damper control (0% – closed, 100% – open, adjustable in 1% increments)

These ovens with natural convection have an inner chamber made of stainless steel (DIN 1.4301) and an exterior made of powder-coated plate with a lockable solid door. All models have a 30 mm Ø access port, a real-time clock, a USB interface (in the front panel) for downloading data to a USB stick and a LAN interface. The internal memory can store up to 10000 data records (maximum 6 months). The series features an auto-diagnosis function, a power failure monitoring system, a temperature sensor failure alarm, a door open alarm and audible and visual temperature alarms.

Temperature range: 50°C to 300°C

Temperature fluctuation (time/at 150°C): ±0.4°C

Temperature change (spatial/at 150°C): ±3.3°C

Contents: 56 L

Convection type: Natural convection

Supplied shelves (max.): 2 (5)

Maximum load capacity per shelf: 25 kg

Maximum chamber capacity: 50 kg

Internal dimensions (WxDxH): 400 x 360 x 390 mm

Dimensions (WxDxH): 590 x 600 x 700 mm

Weight: 52 kg
