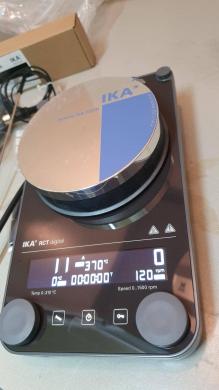

IKA RCT Digital Hot Plate with Magnetic Stirrer

The IKA Plate (RCT digital) has a round top made of aluminum alloy. It stirs volumes of up to 20l (H2O) and runs at speeds ranging from 50-1500 rpm. Strongly standing by its product and technology, unparalleled in the industry; scientists can focus on their experiments with a reliable stir plate.

Some of the features are:

IKA emphasizes ease-of-use by design simplicity

Reduced forms and operating elements meet the modernity of smartphones

Using Alnico magnetic technology, the IKA Plate (RCT digital) achieves excellent temperature stability and high residual induction. It also provides for maximum vortex. The integrated timer and counter function supports the control of kinetics and sensitive reactions; the IKA SmartTemp function protects users intelligently and predictably. PT 1000.60 temperature sensor included in the scope of delivery.

Number of stirring positions 1

Stirring quantity max. per stirring position (H2O) 20 l

Motor rating output 9 W

Direction of rotation right / left

Speed display set-value LCD

Speed display actual-value LCD

Speed control Turning knob

Speed range 50 – 1500 rpm

Setting accuracy speed 10 rpm

Stirring bar length 30 – 80 mm

Self-heating of the set-up plate by max. stirring (RT:22°C/duration:1h) 13 +K

Heat output 600 W

Temperature display set-value LCD

Temperature display actual-value LCD

Temperature unit °C / °F

Heating temperature range Room temp. + device self heating – 310 °C

Heat control Turning knob

Temperature setting range 0 – 310 °C

Temperature setting resolution of heating plate 1 K

Connection for ext. temperature sensor PT1000, ETS-D5, ETS-D6

Temperature setting resolution of medium 1 K

Adjustable safety circuit 50 – 370 °C

Set-up plate material Aluminium alloy

Set-up plate dimensions Ø 135 mm

Automatic reverse rotation yes

Intermittend mode yes

Viscosity trend measurement yes

Timer yes

Sensor in medium detection (Error 5) yes

Speed deviation (no load,nominal voltage, at 1500rpm + 25 °C) 2 ±%

Heating rate (1l H2O in h2500) 6.5 K/min

Heat control accuracy of heating plate (at 100°C) 5 ±K

Heat control accuracy with ext. PT1000 (500ml H2O in 600ml beaker,40mm stirring bar,600rpm,50°C) 0.5 ±K

Heat control accuracy with ETS-D5 (500ml H2O in 600ml beaker,40mm stirring bar,600rpm,50°C) 0.5 ±K

Heat control accuracy with ETS-D6 (500ml H2O in 600ml beaker,40mm stirring bar,600rpm,50°C) 0.2 ±K

Dimensions (W x H x D) 160 x 85 x 270 mm

Weight 2.4 kg

Permissible ambient temperature 5 – 40 °C

Permissible relative humidity 80 %

Protection class according to DIN EN 60529 IP 42

RS 232 interface yes

USB interface yes

Voltage 220 – 230 / 115 / 100 V

Frequency 50/60 Hz

Power input 650 W

Power input standby 1.6 W
