Concentrators

The Concentrator plus has three main operation modes: Concentrate, centrifuge and desiccator – to co (more)ver all your application needs. Processing times are reduced by up to 20% thanks to the ability to choose between three application modes that correspond to sample solvent (aqueous, alcohol or high vapor pressure). The choice of four heating levels (ambient, 30°C, 45°C, 60°C) enables safe and efficient concentration of various samples. When working with delicate samples you also have the option to turn off the brake function. equipped with: 1x Eppendorf F45-8-17 rotor for 8 x 15 mL falcon tubes. 1x Eppendorf F45-48-11 rotor 48 x 1.5/2 mL microtubes. Vacuum: 20 mbar Fixed speed: 1400 rpm Dimensions (WxDxH): 330 x 370 x 230 mm Weight: 16,5 kg

Including 2 fixed angle rotors: 36×1.5 ml (F40-36-12) and 24x6ml (F45-24-12) 1400 rpm (approx. 250 x (more) g) Operational features: -Choice of 3 operation modes (vacufuge, centrifuge, and desiccator) for a variety of application needs -Choice of 4 heating levels (room temperature, 30°C, 45°C, 60°C) allows safe and efficient concentration of various samples -Choice of 3 application modes (aqueous, alcohol or high vapor pressure) to correspond with sample solvent – Reduction of processing time up to 20% -Brake function can optionally be turned off for use with delicate samples -Simple operation and intuitive control panel Excl vacuumpump

The Stuart sample concentrator, when used in conjunction with a Stuart block heater, uses the princi (more)ple of solvent evaporation to concentrate samples. When heat, applied to the samples by the block heater, is combined with a stream of inert (usually nitrogen) directoed onto the surface of the solution, vapour is rapidily driven off and the sample is quickly concentrated. A large number of samples can be processed in a matter of minutes. Temperature Range: Ambient +8°C to 200°C Temperature Stability at 37°C: ± 0.1°C Uniformity Within Block at 37°C: ± 0.1°C Uniformity Within Block at 130°C: ± 1°C Display Resolution: 0.1°C Dimensions (w x d x h): 310mm x 280mm x 115mm Net Weight (no blocks): 3.2 kg Equipped with 3 SHT1/16 blocks Capacity 12 holes with 16 mm tube diameter

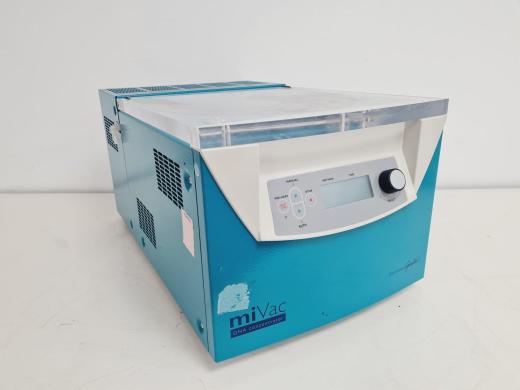

miVac is a range of centrifugal concentrators capable of removing water and organic solvents from a  (more)variety of sample formats including tubes, microplates and vials. miVac systems are suitable for use with a wide range of solvents, from volatile organic types through to water and many medium boiling point solvents. The system is very simple to use, allowing samples to be safely concentrated or taken to complete dryness. The large clear display enables easy monitoring of time and temperature. The intuitive controls allow inexperienced users to get first-class results, while allowing more sophisticated programming for experienced workers. The simple, robust design ensures years of reliable service even when used intensively, such as in teaching or multi-user laboratories. To improve performance there are built-in special modes for working with water and alcohols. Performance is further enhanced through the use of the miVac SpeedTrap refrigerated condenser. Simplified operation with optimized programs for water, alcohol and other solvents Precise temperature control with timer and digital display up to a max of 60°C Various heating functions (preheating and heating of the interior) Plastic coated aluminum chamber and acrylic glass cover for better chemical resistance The rotors are easily interchangeable Compact systems are quiet when in use and up to 40% faster than comparable machines
