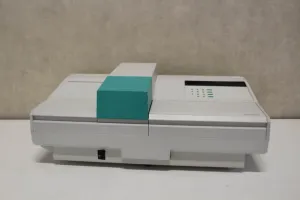

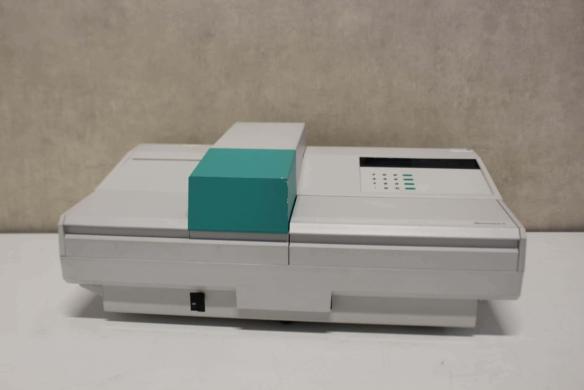

OY Growth Curves Bioscreen C FP-1100-C Growth Curve Analysis System
Description from the supplier
The OY Growth Curves Bioscreen C FP-1100-C Growth Curve Analysis System is a comprehensive solution for monitoring the growth of micro-organisms with exceptional precision. This pre-owned system integrates a sophisticated incubator equipped with a liquid circulation heat exchanger, ensuring consistent temperature maintenance across all wells. Its linear shaker guarantees optimal mixing within each well, enhancing experimental reliability. The system’s reader is highly sensitive, utilizing advanced turbidity measurement techniques that surpass traditional spectrophotometric methods.
This device is capable of analyzing 200 samples simultaneously through its dual honeycomb plates, each accommodating 100 wells. For wavelength-specific measurements, the system is equipped with eight filters, covering multiple wavelengths to suit various experimental needs, including 405, 420, 450, 492, 540, 580, and 600 nm, in addition to a wide band filter spanning 420 – 580 nm.
- **Linear Range:** 0.0 – 2.0 A (with maximum deviation <2%)
- **Noise Level:** Maximum 0.002 A at 0.0 A
- **Drift:** Maximum 0.003 A
- **Resolution:** 0.001 A
- **Warm-up Time:** Approximately 30 minutes
- **Light Source:** Quartz-Halogen lamp, 8V/50W
- **Filters Half Bandwidth:** 3 – 10 nm
- **Detector:** Silicon photocell
- **Microplate Type:** Honeycomb 2 microplate
- **Maximum Well Volume:** 400 µL
- **Incubating Temperature Range:** 1.0 – 60.0°C, adjustable in 0.1°C increments, adapting to ambient conditions by operating 6°C below or up to 30°C above ambient to a maximum of 60°C
- **Temperature Uniformity:** ± 0.1°C with heating from 20°C to 30°C achieved in 30 minutes
- **Heat Transfer Fluid:** Requires a 1:1 mixture of ethylene glycol and water
Dimensions are 620 x 380 x 230 mm, and it weighs 22 kg. The system represents a robust and precise tool for research professionals seeking to conduct high-throughput growth analysis under meticulously controlled conditions.
