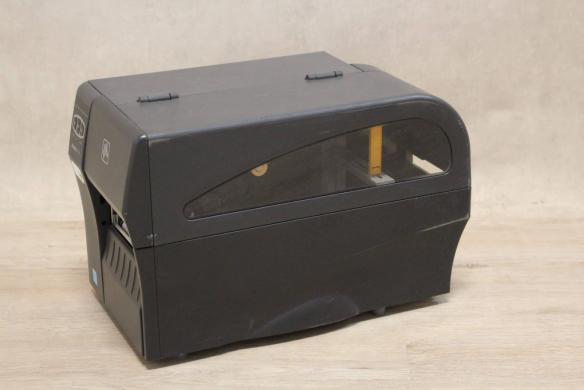

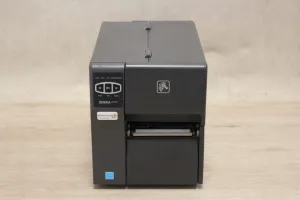

Zebra ZT220 Thermal Label Printer

The Zebra ZT220 Thermal Label Printer offers flexible print resolutions of 203 dots/inch (8 dots/mm) or 300 dots/inch (12 dots/mm) with dot sizes maintained at 0.110 x 0.132 mm. The maximum print widths are 108 mm for 203 dpi and 105.7 mm for 300 dpi, supporting a broad range of bar code modulus from 5 mil to 50 mil and 3.3 mil to 33 mil, respectively. This printer features programmable print speeds set at 51, 76, 102, 127, and 152 mm/s.

Media labels can vary in length from a minimum of 17.8 mm (tear off) and 12.7 mm (peel off) to a maximum of 991 mm, with widths ranging between 19 mm and 114 mm. The total media thickness can span from 0.076 mm to 0.25 mm, with maximum roll diameters of 203 mm (76 mm core) or 152 mm (25 mm core).

Additional customizable parameters include media inter label gap (2-4 mm), ticket/tag notch size (6 x 3 mm), hole diameter (3.18 mm), notch or hole position (3.8 to 57 mm from the inner edge), and black mark density (> 1.0 ODU) with a max density of ≤ 0.5 ODU. The ribbon accommodates widths from 51 mm to 110 mm with standard lengths up to 300 m (2:1 media to ribbon roll ratio) and a core inside diameter of 25 mm.

This printer has dimensions of 277 x 242 x 432 mm and weighs approximately 9.1 kg, making it an efficient and versatile tool for high-quality label production in various laboratory settings.
