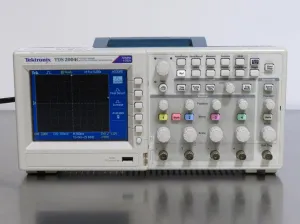

The Tektronix TDS 2004C is a precision four-channel digital storage oscilloscope optimized for detailed signal analysis and waveform capture essential in biotechnology and molecular diagnostics workflows. Key technical specifications include:
This oscilloscope is highly suitable for applications in biotechnology research, gene editing instrumentation, and synthetic biology experiments requiring precise waveform capture and signal analysis. Its advanced sampling capabilities and broad input configurations make it critical in fields like molecular diagnostics, bioprocessing, and biopharmaceutical production pipelines. The device’s combination of accuracy, flexibility, and connectivity supports complex data acquisition tasks in biomedical engineering and live-cell imaging laboratories, making it a vital tool widely adopted among molecular biology researchers and clinical diagnostics professionals.
| Bandwidth | 70 MHz for 5 mV/div 20 MHz for < 5 mV/div |
| Number of Channels | 4 |
| Sample Rate on Each Channel | 1.0 GS/s |
| Sensitivity Range | 2 mV/div to 5 V/div |
| Vertical Resolution | 8 bits except at 2 mV/div |
| Record Length | 2,500 samples / record |
| Seconds/Division Range | 5 ns/div to 50 s/div in 1–2.5–5 sequence |
| Time Base Accuracy | ± 50 ppm over any ≥ 1 ms interval |
| Position Range | 2 mV/div to 200 mV/div: ± 1.8V > 200 mV/div to 5 V/div: ± 45V |
| Bandwidth Limit | 20 MHz |
| Input Coupling | DC, AC, or GND |
| Input Impendance | 1 MΩ ± 2% in parallel with 20 pF ± 3 pF |
| Maximum Input Voltage | 300 VRMS, Installation Category II; derate at 20 dB/decade above 100 kHz to 13 V peak AC at 3 MHz and above |
| I/O Interface | USB host port on front panel supports USB flash drives USB device port on back of instrument supports connection to PC and all PictBridge-compatible printers |
| Dimensions (W x D x H) | 12.9 x 4.9 x 6.2 in. (32.6 x 12.4 x 15.8 cm) |
| Weight | 4.4 lb. (2 kg) |
| Electrical Requirements | 100 to 240 VAC, RMS ± 10% |
