Hirayama HICLAVE HV-50II Floor-Standing Touchscreen Autoclave, 50L, 120V
Product Description

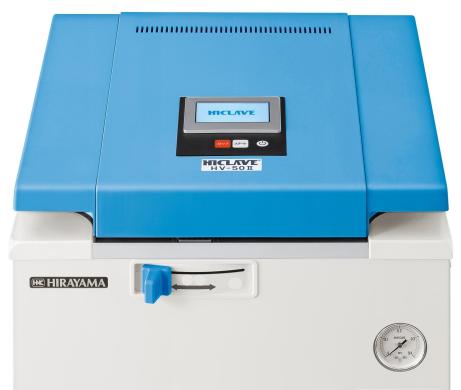

Hirayama HICLAVE HV-50II Floor-Standing Touchscreen Autoclave, 50L, 120V
Chamber Volume
50L
Sterilization Temperature Range
105°C to 135°C
Chamber Dimensions (Dia. x H)
11.8 x 28 in (30 x 71 cm)
- Space-saving design with upward lid opening
- Five operation modes with up to 8 memory settings per mode

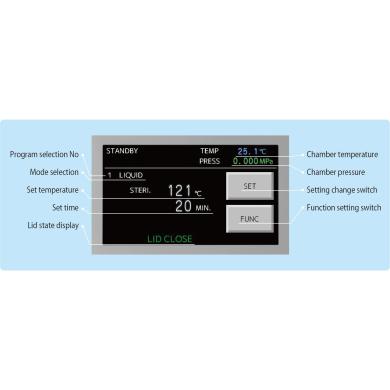

- Color touch panel for intuitive operation
- Electro-mechanical lid lock system with one-touch lever
- Dual interlock mechanism for enhanced lid safety
- Programmable auto-start function, up to 1 week in advance
- Digital and analog displays for temperature and pressure monitoring
- Air removal system with dual detection for consistent sterilization
- 11 alarms, including low water heating and over-temperature, with alarm history display
- Memory backup system retains settings during power failures
The Hirayama HICLAVE HV-50II Floor-Standing Touchscreen Autoclave, 50L, 120V, is a versatile and reliable solution for advanced sterilization needs. It offers five operation modes—LIQUID, SOLID, WASTE, AGAR, and DISSOLUTION—each with customizable memory settings for up to 40 cycles. Its space-saving design features an upward lid opening and an intuitive color touch panel that simplifies operation. The electro-mechanical lid lock with a one-touch lever ensures secure and hassle-free use, while the dual interlock mechanism provides additional safety by locking the lid based on both chamber pressure and temperature. The dual air removal system guarantees consistent sterilization, even for difficult loads, and the optional forced cooling unit accelerates cycle completion for faster turnaround times.
- Bottom Plate
- Drainage Hose
- Exhaust Hose
- Exhaust Bottle
- Drain Bottle
- 2 x Caster Stopper
- 2 x Round Wire Mesh Basket
- Power Cord
- Operator's Guide
- Manufacturer's Documentaiton
- 1 Year Manufacturer's Warranty
Product details
| Chamber Capacity | 50L |
| Chamber Dimensions (Dia.ｘ Ｈ) | 11.8 x 28 in (30 x 71 cm) |
| Operation Modes | 5 modes (LIQUID, SOLID, WASTE, AGAR, DISSOLUTION) Settings can be registered in 8 memories. |
| Temperature Setting Range Sterilization | 105°C to 135°C Variable |
| Temperature Setting Range Dissolution | 60°C to 100°C |
| Temperature Setting Range Warming | 45°C to 60°C |
| Temperature Setting Range Agar Dissolution | Heating at 60°C to 100°C for up to 1 hour Followed by 45°C to 60°C |
| Lid Lock | LIQUID, AGAR, DISSOL modes: 60°C to 95°C Variable SOLID, WASTE modes: 60°C to 97°C Variable |
| Time Setting Range | Sterilization: 1 to 250 minutes, Remaining time is displayed Dissolution: 1 to 60 minutes, Remaining time is displayed Warming: 20 Hours, Fixed Air Removal: 3 to 9 min variable |
| Auto-Start | Program autoclave to start 1 min to 1 week later |
| Exhaust Setting | 3 levels (Without Exhaust, Fine Exhaust, Small Amount of Exhaust) |
| Maximum Working Pressure | 27 PSI (0.186MPa) |
| Thermometer | Digital display 5.0°C to 137.9°C |
| Pressure Gauge | Digital display 0MPa - 0.3MPa / Analog display 0MPa - 0.4MPa |
| Safety Devices | Pressure safety valve, Over-current and earth leakage breaker, Low water cut off device |
| Alarms, Error Display | Low water heating, Temperature sensor wire disconnection, Over temperature, Over cool, Over pressure, Lid abnormality, Abnormality in lid opening / closing lever |
| Pressure Vessel Category | Small sized pressure vessel |
| Chamber Material | Stainless steel (SUS304) |
| Power Connection | Ring terminal |
| Outside Dimensions (W x D x H) | 21.6 x 21 x 41 in. (54.7 x 53.2 x 104.6 cm) |
| Weight (Approx.) | 132.3 lbs (60 kg) |
| Required Power Supply Facility | 2.0kW |
| Electrical Requirements | 120V 50/60 Hz, 2000W |
