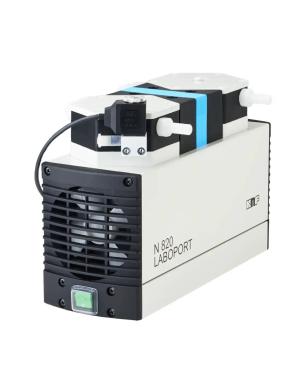

Wet gas vacuum pump Laboport SD N 820.3 FT.40.18 KNF

Jointlab srl€1,990.00
(€2,368.10 incl. VAT* )* - if applicable
item image

Description by the supplier

The N 820.3 FT.40.18 is a dual-stage pump equipped with a built-in self-drying system that automates the drainage of condensation. This pump from our "SD" range is the popular choice among laboratory professionals, particularly when dealing with humid vapors and needing a clean, environmentally-friendly vacuum. Ideal uses include vacuum ovens (utilized for the drying of chemical substances, biological specimens, and heat treatments), and autoclaves for the sterilization of instruments, containers, filters, and fabric. The use of corrosion-resistant materials permits the pump to accommodate even corrosive products.


At the core of the pump resides a diaphragm structured in PTFE, engineered to provide substantial performance whilst keeping a compact size, and delivering extended lifespan even under rigorous use.


When the pump receives humid gases, there may be a formation of condensation in the pump head which could eventually decrease the performance, subsequently extending the time taken to empty. The self-drying system addresses this by activating a solenoid valve that invites atmospheric air into the heads. Following condensation removal, the solenoid valve will disable, enabling the pump to vacuum at its full capacity.


Key Technical Specifications

Maximum Flow Rate: 20 l/min

Final Vacuum: 10 mbar (abs.)

Maximum Pressure: 1 bar (rel.)

Permissible Fluid Temperature: 5-40°C

Valve Material: FFPM

Diaphragm Material: Coated in PTFE

Pump Head Material: PTFE


Key Applications

Rotary Evaporation

Vacuum Oven


Key Features

Clean and oil-free operation

Corrosion-resistant due to PTFE/FFPM flow path

Perfectly suited to handle aggressive/corrosive gases and vapors

Compact, quiet, and reliable

Self-drying system removes condensation without affecting the vacuum level

No maintenance required


For more explicit details and a list of accessories, please download the data sheet.


NEED ASSISTANCE IN SELECTING THE RIGHT VACUUM PUMPS?

Feel free to consult our KNF pumps guide: VACUUM PUMPS FOR THE LABORATORY

Or download our informative KNF guide: THE RIGHT DIAPHRAGM PUMP FOR EVERY USE CASE.


Product details
External dimensions mm L x P x A177 x 312 x 220
VariousIP 44
Absorption120 W
Weight kg9,6
Supply230V; 50Hz
