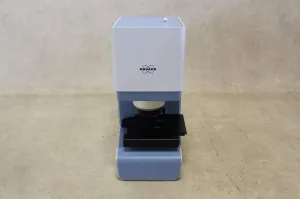

Bruker LUMOS FTIR Microscope

The Bruker LUMOS is an advanced FTIR microscope featuring full automation and stand-alone functionality. Equipped with an 8x objective, it supports versatile measurement modes: transmission, reflection, and ATR. It compiles results including visible images, spectral data, and sample information in a single file. The integrated software offers powerful Chemical Imaging capabilities for data evaluation and visualization.

The LUMOS houses an integrated FT-IR spectrometer within its optical setup, with all components motorized and electronically coded. Its innovative motorized ATR crystal allows seamless switching between modes for fully automated sample and background spectra measurement. Central to its design is the RockSolid interferometer, renowned for its alignment stability and resistance to environmental disturbances.

• 8x objective for automated measurements, expandable to 32x through digital zoom.
• High-resolution digital CCD camera for image capture.
• Motorized Ge ATR crystal with internal pressure control.
• Automated sample stage and z-drive.
• Robust ZnSe IR-transparent windows and IR beam splitter.
• High sensitivity MCT detector.
• Includes a PC with intuitive software for comprehensive functionality.
