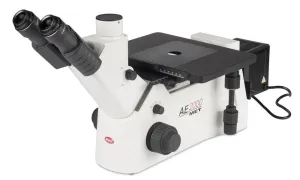

Motic AE2000MET Trinocular Inverted Industrial Microscope, 50W Illumination

Marshall Scientific$4,125.00 (ex VAT)
item image

Description by the supplier

Motic AE2000MET Trinocular Inverted Industrial Microscope, 50W Illumination



Objectives

Optional

Optical System

Colour Corrected Infinity Optical System (CCIS)

Illumination

Kohler Quartz Halogen 12V/50W



Features

- Robust manufacturing quality for a long lifetime

- New BF/DF objectives for metallurgy (sold separately)

- Sufficient power resources

- A flexible upgrade for digital results





The Motic AE2000MET Trinocular Inverted Industrial Microscope, 50W Illumination is an Inverted Metallurgical microscope designed to inspect polished cross-sections as well as larger, bulky samples within industries such as automotive, machinery, and metal fabrication. Large metal or die cast parts, too large to view under a conventional upright microscope, can easily be examined for failure analysis, material research or quality control.


INCLUDED:

The Motic AE2000MET Trinocular Inverted Industrial Microscope, 50W Illumination includes:

- Widefield N-WF10X/20mm Eyepieces

- Dust Cover

- Allen Key

- Blue Filter

- Power Cord

- Operator's Manual

- Manufacturer's Documentation

- 5 Year Manufacturer's Warranty

Product details
Observation tubeTrinocular head, Siedentopf type, 360° swiveling
Optical systemColour Corrected Infinity Optical System (CCIS®)
Inclination45° inclined
Trinocular light split100:0/20:80
Interpupillary distance48-75mm
Diopter adjustmentOn both eyepieces, +/- 5 diopter
EyepiecesWidefield N-WF10X/20mm with diopter adjustment
NosepieceSide facing quintuple
Objective classification-
Objectives-
Objective mounting threadM32
Stand typeInverted
StageMechanical stage, hard coated with built-in low position coaxial stage control with round and oval stage inserts
Stage size280x192mm
Travel range X&Y50x50mm
Focus mechanismCoaxial coarse and fine focusing system with tension adjustment
Fine focus precision2µm
Focusing stroke10mm
Transmitted illuminationKohler Quartz halogen 12V/50W
Illumination featuresSleeping mode
TransformerExternal
Power supply100-240V (CE)
Accessories includedDust cover, power cord, Allen key, blue filter
Dimensions LxWxH673x280x345mm
Weight Net13kg
Standard contrast techniqueBrightfield
PolarizationOptional sliders
DarkfieldOptional objectives
