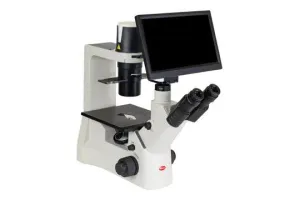

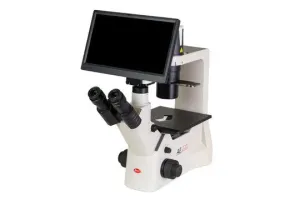

Motic AE2000 Trinocular Microscope with MOTICAM BMH4000 Digital Camera Bundle
Product Description
- Optical system: Colour Corrected Infinity Optical System (CCIS®)
- Observation tube: Trinocular head, Siedentopf type, 360° swiveling
- Objectives: CCIS® Plan Achromatic, DIN, RMS thread; 4X/0.10, PH10X/0.25 included; optional LWD 20X/0.30 and 40X/0.50
- Phase contrast: Slider for phase ring Ph1
- Illumination: Quartz halogen 6V/30W or LED 3W, auto on/off, intensity control
- Condenser: ELWD condenser N.A. 0.30, working distance 72mm, with filter holder
- Eyepieces: Widefield N-WF10X/20mm with ±5 diopter adjustment
- Focus mechanism: Coaxial coarse and fine focus; 2µm fine precision; 8mm stroke; tension adjustable
- Stage: Plain stage 200x239mm with metal and glass inserts
- Stand: Inverted type, 45° inclined observation tube, interpupillary distance 48-75mm
- Power supply: 100-240V CE compliant, external transformer
- Accessories included: Dust cover, power cord, blue/green/neutral density filters, phase ring Ph1, centering telescope, centering keys
- Dimensions: 556 x 218 x 496 mm (LxWxH)
- Weight: 12.2 kg
- Additional: Compatible C-mount adapter for MOTICAM BMH4000 digital camera integration
This bundle is suited for routine laboratory, clinical, pharmaceutical research, and university applications requiring brightfield and phase contrast microscopy with digital imaging capabilities.
Item Stats
Product details
| Model | AE2000 Trinocular |
| Observation tube | Trinocular head, Siedentopf type, 360° swiveling |
| Optical system | Colour Corrected Infinity Optical System (CCIS®) |
| Condenser | ELWD condenser N.A. 0.30 (WD = 72mm) with filter holder |
| Diaphragm | Iris diaphragm |
| Diopter adjustment | On both eyepieces, +/- 5 diopter |
| Eyepieces | Widefield N-WF10X/20mm with diopter adjustment |
| Fine focus precision | 2µm |
| Focus mechanism | Coaxial coarse and fine focusing system with tension adjustment |
| Focusing stroke | 8mm |
| Free working distance | Working distance without condenser 184mm |
| Illumination features | Auto on/off |
| Illumination interchangeability | Quartz halogen 6V/30W or LED 3W |
| Inclination | 45° inclined |
| Interpupillary distance | 48-75mm |
| Nosepiece | Left side facing quadruple |
| Objective classification | CCIS® Plan Achromatic, DIN |
| Objective mounting thread | W 4/5"x1/36" (RMS standard) |
| Objectives | 4X/0.10 (WD 12.6mm), PH10X/0.25 (WD 4.1mm), [Optional] LWD PH20X/0.30 (WD 4.7mm), [Optional] LWD 40X/0.50 (WD 3.0mm) |
| Phase contrast | Slider |
| Stage | Plain stage with metal and glass stage inserts |
| Stage size | 200x239mm |
| Stand type | Inverted |
| Standard contrast technique | Brightfield, phase contrast |
| Transmitted illumination | Quartz Halogen 6V/30W with intensity control |
| Transformer | External |
| Power supply | 100-240V (CE) |
| Accessories included | Dust cover, power cord, blue, green and neutral density filters, phase ring Ph1, centering telescope, centering keys |
| Dimensions LxWxH | 556x218x496mm |
| Weight Net | 12.2kg |
