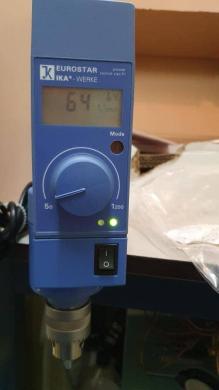

IKA Eurostar power control-visc p1 Overhead stirrer

Powerful, digital laboratory stirrer for tasks up to the high viscosity range.

Max. torque at chuck: 100 Ncm

Constant speed by microprocessor control

Infinitely adjustable without gear shifting

Slim casing

Quiet operation

Safety circuit

Non-locking, overload capabilities

Push-through agitator shafts

Enhanced safety as a result of smooth start

Digital display presents rated- and actual- speed

Integrated torque trend display for viscosity control

Analog interface for recording speed and torque

RS 232 interface

Stirring quantity max. (H2O) 60 l

Motor rating input 153 W

Motor rating output 134 W

Speed display LCD Speed range 50 – 1200 1/min

Viscosity max. 70000 mPas

Output max. at stirring shaft 126 W

Permissible ON time 100 %

Torque max. at stirring shaft 100 Ncm

Torque max. at stirring shaft at 60 1/min (overload) 100 Ncm

Torque max. at stirring shaft at 100 1/min 100 Ncm

Torque max. at stirring shaft at 1.000 1/min 100 Ncm

Speed control stepless

Stirring element fastening chuck

Extension arm diameter 16 mm

Extension arm length 200 mm

Torque display yes

Nominal torque 1 Nm

Torque measurement trend

Dimensions (W x H x D) 80 x 253 x 190 mm Weight 4 kg

Permissible ambient temperature 5 – 40 °C

Permissible relative moisture 80 %

Protection class according to DIN EN 60529 IP 42

RS 232 interface yes

Analog output yes

Voltage 230 V

Frequency 50/60 Hz

Power input 153 W
