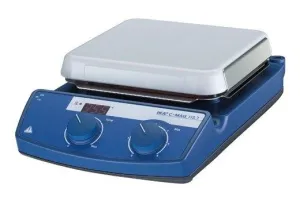

IKA C-Mag HS 7 Magnetic Hotplate Stirrer
Speed Range
100 to 1,500 RPM
Heating Temp. Range
50 to 500°C
Stirring Quantity Max.
10 l
Features
- Powerful motor for stirring quantities of up to 10 l (H2O)
- Fixed safety circuit of 550 °C
- Hot Top indicator >hot surface warning to prevent burns!
- Exact temperature setting via digital display (LED)
- Bushing according to DIN 12878 for connecting a contact thermometer, e.g. ETS-D5, enables precise temperature control
- Digital error code display
- Elevated control panel for protection against leaking liquids
The IKA C-Mag HS 7 Magnetic Hotplate Stirrer features one stirring position with a maximum stirring quantity of 10 liters (H2O). It is equipped with a powerful motor with an output of 1.5 W and a speed range of 100 - 1500 rpm. The heat output is 1000 W, and it offers a heating temperature range from 50 to 500 °C. The set-up plate, made of chemical-resistant ceramic, measures 180 x 180 mm. The stirrer includes an LED temperature display for both set and actual values, a turning knob for heat control, and a fixed safety circuit of 550 °C. Additionally, it has a Hot Top indicator for safety and a bushing for connecting an external temperature sensor (ETS-D5). The dimensions are 220 x 105 x 335 mm, and it weighs 5 kg.
Number of stirring positions | 1 |
Stirring quantity max. per stirring position (H2O) | 10 l |
Motor rating output | 1.5 W |
Direction of rotation | left |
Speed control | scale 0 - 6 |
Speed range | 100 - 1500 rpm |
Stirring bar length max. | 80 mm |
Self-heating of the set-up plate by max. stirring (RT:22°C/duration:1h) | 1 +K |
Heat output | 1000 W |
Temperature display set-value | LED |
Temperature display actual-value | LED |
Heating temperature range | 50 - 500 °C |
Heat control | Turning knob |
Heating rate heating plate | 5 K/min |
Temperature setting resolution of heating plate | 5 K |
Connection for ext. temperature sensor | ETS-D5 |
Fixed safety circuit | 550 °C |
Set-up plate material | ceramic |
Set-up plate dimensions | 180 x 180 mm |
Dimensions (W x H x D) | 220 x 105 x 335 mm |
Weight | 5 kg |
Permissible ambient temperature | 5 - 40 °C |
Permissible relative humidity | 80 % |
Protection class according to DIN EN 60529 | IP 21 |
Voltage | 230 / 120 / 100 V |
Frequency | 50/60 Hz |
Power input | 1020 W |
