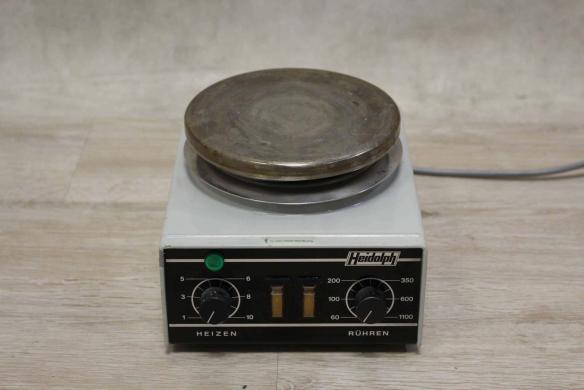

Heidolph MR 82 Hotplate with Magnetic Stirrer

IKA Eurostar 20 High Speed Control Overhead Stirrer Stirring quantity max. per stirring position ( (more)H2O) 20 l Deviation of speed measurement n 300rpm 1 ±% Temperature Measuring Range -10 - +350 °C Features - Multilingual TFT display - Programmable functions - Integrated temperature measurement - Interval operation - Timer function - Adjustable safety circuit - Locked function - Infinitely adjustable speed - Push-through agitator shafts - Overload protection - Short-term overload operation - Slim casing - Quiet operation - Error code display - H 67.60 temperature sensor and WH 11 WiCo holder included in delivery High speed laboratory stirrer designed with a removable wireless controller and a digital TFT display. It automatically adjusts the speed through microprocessor controlled technology within the speed range of 0/150 - 6000 rpm. The stirrer comes equipped with a RS 232 and a USB interface to control and document all parameters, and an update of the current firmware. An integrated torque trend display is provided for the measurement of viscosity changes. The included precision stirrer shaft is 280 mm long and has a maximum immersion depth of 220 mm. INCLUDED: The IKA Eurostar 20 High Speed Control Overhead Stirrer includes: - EUROSTAR 20 high speed control - R 6000 precision shaft - Open-end wrench - Hook spanner - H 67.60 Temperature sensor, stainless steel - WH11 - OS 1.0 WiCo power supply unit - USB Cable - USB A to Micro-B, 2 m - USB cable micro A – micro B 2.0 - Screw driver - Protective cover for WiCo contact - Power Cord - Operator's Guide - Manufacturer's Documentation - 2 Year Manufacturer Warranty ( + Additional Free 1 Year Warranty Extension with IKA Registration) IKA Eurostar 20 High Speed Control Overhead Stirrer Specifications Stirring quantity max. per stirring position (H2O)20 lMotor rating input176 WMotor rating output125 WMotor principleBrushless DCSpeed displayTFTSpeed range0/150 - 6000 rpmIntermittent operationyes Viscosity max.10000 mPas Output max. at stirring shaft125 W Permissible ON time100 %Torque max. at stirring shaft20 NcmSpeed controlsteplessSetting accuracy speed1 ±rpmDeviation of speed measurement n 300rpm1 ±%Deviation of speed measurement n < 300rpm3 ±rpmStirring element fasteningspecial output shaftConnection for ext. temperature sensorPT1000Temperature displayyesFastening on standextension armExtension arm diameter16 mmExtension arm length220 mmTorque displayyesNominal torque0.2 NmTorque measurementtrendDeviation of torque measurement I6 ±NcmTimeryesTimer displayTFTTime setting range1 - 6000 minTemperature measuring range-10 - +350 °CTemperature measurement resolution0.1 KAccuracy of temperature measurement±0.5 + tolerance PT1000 (DIN EN 60751 Class A) KLimit deviation temperature sensor≤ ± (0.15 + 0.002xITI) KHousing materialalu-cast coating / thermoplastic polymerCommunication distance (depend onbuilding) max.150 mDimensions (W x H x D)86 x 325 x 230 mmWeight5.242 kgPermissible ambient temperature5 - 40 °CPermissible relative humidity80 %Protection class according to DIN EN 60529IP 40RS 232 interfaceyesUSB interfaceyesVoltage230 / 115 / 100 VFrequency50/60 HzPower input176 WComparison of IKA Eurostar Control Overhead StirrersSpecsEurostar 20Eurostar 60Eurostar 100Eurostar 200Eurostar 400Stirring quantity max. per stirring position (H2O)20 l40 l100 l100 l150 lSpeed range0/150 - 6000 rpm0/30 - 2000 rpm0/30 - 1300 rpm0/6 - 2000 rpm0/6 - 2000 rpmViscosity max.10000 mPas50000 mPas70000 mPas100000 mPas100000 mPasTorque max. at stirring shaft20 Ncm60 Ncm100 Ncm200 Ncm400 NcmPower input176 W176 W186 W130 W226 WSetting accuracy speed1 ±rpm1 ±rpm1 ±rpm1 ±rpm1 ±rpm.comparison-table tr td:nth-child(2) { background-color: #fffacd;}

IKA Ministar 80 Digital Overhead Stirrer Stirring Quantity Max 50 Liters Speed Range 0/50 - 500 rp (more)m Viscosity Max. 60000 mPas Features - The IKA Ministar 80 Digital Overhead Stirrer boasts a compact design, ensuring space efficiency without compromising performance. - With constant torque across its rpm range, the IKA MICROSTAR and MINISTAR series offer reliable stirring for various lab needs. - Operating the stirrers is a breeze, thanks to a stable rotary knob and a clear display showing the rotational speed. - Rapid and simple software updates are facilitated through the USB interface, ensuring the devices stay up-to-date effortlessly. - The IKA MICROSTAR and MINISTAR stirrers prioritize essential features, making them dependable companions in the lab. - Available in six versions with rpm up to 2,000 and torque up to 80 Ncm, these stirrers excel in both performance and compactness. The space-saving high performers from IKA MICROSTAR and MINISTAR series have been complemented by additional models. The new and easy-to-use stirrers convince with perfect basic functionalities, as well as with a compact design. Combining high performance with particular excellence, they require minimum space and come with a lifetime guarantee. See for yourself:Compact design - The reduced design and the focus on the most essential aspects make the new IKA MICROSTAR and MINISTAR stirrers reliable laboratory companions. Constant torque - All models of the IKA MICROSTAR and MINISTAR series guarantee a constant torque over the entire rpm range. The new devices are available in six different versions with rpms of up to 2,000 rpm and a torque of up to 80 Ncm. Ease of operation - Operation takes place using a stable rotary knob. The display clearly shows the rotational speed. Rapid updates - Regular software updates can be undertaken rapidly and simply via the USB interface. Click Here to View Product Video INCLUDED: The IKA Ministar 80 Digital Overhead Stirrer includes: - MINISTAR 80 digital - R 300 shaft protector - Fasten screws for R 300 (2x) - chuck key - USB Cable - USB A to Micro-B, 2 m - Power Cord - Operator's Guide - Manufacturer's Documentation - 2 Year Manufacturer Warranty (+ Additional Free 8 Year Warranty Extension with IKA Registration) IKA Ministar 80 Digital Overhead Stirrer Specifications Stirring quantity max. per stirring position (H2O)50 lMotor rating input60 WMotor rating output46 WMotor principleBrushless DCSpeed displayLEDSpeed range0/50 - 500 rpmViscosity max.60000 mPasOutput max. at stirring shaft42 WPermissible ON time100 %Torque max. at stirring shaft80 NcmSpeed controlTurning knob Setting accuracy speed1 ±rpm Deviation of speed measurement n 300rpm1 ±%Deviation of speed measurement n < 300rpm3 ±rpmStirring element fasteningchuckChuck range diameter0.5 - 8.2 mmHollow shaft, inner diameter8.5 mmHollow shaft (push-through - when stopped)yesFastening on standextension armExtension arm diameter13 mmExtension arm length160 mmNominal torque0.8 NmTimer displaynoneHousing materialalu-cast coating / thermoplastic polymerDimensions (W x H x D)70 x 193 x 147 mmWeight1.72 kgPermissible ambient temperature5 - 40 °CPermissible relative humidity80 %Protection class according to DIN EN 60529IP 54USB interfaceyesVoltage100 - 240 VFrequency50/60 HzPower input69 WPower input standby0.5 WDC Voltage24 VCurrent consumption2900 mAComparison of ModelsSpecificationsMinistar 20 ControlMinistar 20 DigitalMinistar 40 ControlMinistar 40 DigitalMinistar 80 ControlMinistar 80 DigitalStirring Quantity Max. (H2O)15 l15 l25 l25 l50 l50 lMotor Rating Input60 W60 W60 W60 W60 W60 WSpeed DisplayLCDLEDLCDLEDLCDLEDSpeed Range0/50 - 2000 rpm0/50 - 2000 rpm0/30 - 1000 rpm0/50 - 1000 rpm0/30 - 500 rpm0/50 - 500 rpmViscosity Max.10000 mPas10000 mPas30000 mPas30000 mPas60000 mPas60000 mPasTimer DisplayLCDNoneLCDNoneLCDNoneTemperature DisplayYesNoYesNoYesNoDimensions (W x H x D)70 x 193 x 154 mm70 x 193 x 147 mm70 x 193 x 154 mm70 x 193 x 147 mm70 x 193 x 154 mm70 x 193 x 147 mmUSB InterfaceYesYesYesYesYesYesVoltage100 - 240 V100 - 240 V100 - 240 V100 - 240 V100 - 240 V100 - 240 V.comparison-table tr td:nth-child(7) { background-color: #fffacd; } Request a Formal Quote

IKA R 1401 Propeller The R 1401 propeller head is designed for the use with the overhead stirrers E (more)UROSTAR 20 high speed digital / control. It is ideally suited for applications which work with low to medium mixing viscosities that require axial flow pattern at high speed with minimal temperature increase.Working range: 1 - 30 lRotor diameter: 55 mmNote: R 1401 needs to be attached to the precision shaft R 6000 in order to operate. The shaft is not included in the scope of delivery of R 1401. INCLUDED: The IKA R 1401 Propeller includes: - Operator's Guide - Manufacturer's Documentation - 30 Day Full Parts and Labor Warranty Request a Formal Quote

MARSHALL Select MS-OT20LE Overhead Stirrer, 20L Maximum Stirring Quantity 20L Speed Range 50 to 2,2 (more)00 RPM Maximum Viscosity 100,000 mPas Features - High torque of 40 Ncm suitable for viscous medium stirring - Brushless DC motor ensures long life, maintenance-free operation, and safety in explosive environments - LED display for precise monitoring of actual speed - Over torque protection and safety circuits provide safe stop functions in anti-stall or overload conditions - Large chuck diameter supports many shaft types, increasing versatility - Through-shaft design allows for easy adjustment of the impeller position - Automatic resumption of stirring at preset speed after power loss - IP21 protection class offers basic protection against solid objects and dripping water - Analog speed controls displayed on the LED for easy adjustments and monitoring - Designed to accept pass-through stirrer rods for flexible setup options - Visual alarm alerts for immediate notification of system issues or malfunctions - Explosion-proof motor enhances safety in volatile environments The MARSHALL Select MS-OT20LE Overhead Stirrer stands out for its high reliability and superior performance, engineered to manage stirring tasks up to 20L. It features a versatile speed range from 50 to 2,200 RPM, suited for a wide variety of laboratory needs. This stirrer is equipped with a brushless DC motor, renowned for its long life, maintenance-free operation, and explosion-proof qualities. The MS-OT20LE includes an LED screen that displays the actual speed, ensuring precise control over your mixing processes. It's capable of handling high viscosities up to 100,000 mPas with a maximum torque of 40 Ncm, making it ideal for stirring viscous mediums. The large chuck diameter supports many shaft types, enhancing its adaptability. Safety is a paramount feature of this device, with integrated circuits that provide a safe stop function in conditions of anti-stall or overload, where over torque protection automatically stops the motor. Additionally, the through-shaft design allows for easy adjustment of the impeller position to suit varying laboratory needs. In the event of a power outage, the stirrer automatically resumes operation at the preset speed once power is restored, ensuring continuity and efficiency. The IP21 protection class provides basic protection against solid objects and dripping water, further securing the unit in active laboratory environments. INCLUDED: The MARSHALL Select MS-OT20LE Overhead Stirrer, 20L includes: - Key of Drill Chuck - Power Cord - Operator's Manual - Manufacturer's Documentation - 1 Year Manufacturer's Warranty

The VELP stirring rod with turbo propeller is ideal for medium / high viscosity ranges and medium /  (more)high speeds. Compatible with Velp Scientific ES, LS, DLS, LH, DLH, PW, OHS rod stirrers. The stirring rod generates an axial flow with suction of substances from top to bottom and low shear forces.

A motor control console designed for controlling agitation systems in Applikon bioreactors. Designe (more)d for use with Applikon P100 drive motors Knob adjustment of motor speed with three digit LCD readout Interchangeable local or remote control via rear RS232 port Speed Range: Approx 0 to 230 RPM 230V / 50-60Hz

Eppendorf 1 x 120ml Adapters, Cat. # 022637720 Eppendorf 1 x 120ml Adapters, Cat. # 022637720 for  (more)the A-4-44 rotor. This is a 2 piece set, and the adapters are new in the packaging. The Eppendorf 1 x 120ml Adapters, Cat. # 022637720 are designed to be used with an Eppendorf 5804/R or 5810/R Centrifuge. INCLUDED: The Eppendorf 1 x 120ml Adapters, Cat. # 022637720 includes: - Full 6 Month Parts and Labor Warranty

Gilson MINIPULS 3 Peristaltic Pump Head, R2 Two Channel The Gilson MINIPULS 3 Peristaltic Pump Head, (more) R2 Two Channel is a versatile pump head with a maximum flow rate of 40 ml/min and a minimum flow rate of 0.3 ul/min. Its durable construction and compatibility with the Gilson MINIPULS 3 Peristaltic Pump makes it ideal for precise fluid handling in various research and pharmaceutical applications. INCLUDED: The Gilson MINIPULS 3 Peristaltic Pump Head, R2 Two Channel includes: - Manufacturer's Documentation - 1 Year Manufacturer's Warranty

The HX5.EX scale is a modern weighing instrument assuring fast and reliable measurement in hazardous (more) areas classified as zones 1/21 and 2/22. To ensure precision and excellent measurement repeatability, high quality electronic components are used. The weighing platforms offered in wide range of dimensions and maximum capacities, this combined with excellent metrological parameters enables easy selection of an instrument that meets the most demanding requirements. Standard version of the scale is equipped with 2 serial, intrinsically safe RS232 communication interfaces, and with one RS485 interface. They facilitate cooperation with equipment intended for operation in hazardous areas. Possibility to add digital inputs/outputs extends the range of instruments compatible with the indicator by automatic elements compliant with ATEX directive. More demanding customers can use the IM01.EX module, installed in the safe area, which extends the available connectors by Ethernet, USB, 4-20mA/0- 10V analog outputs, Profibus DP and additional digital inputs/outputs. This enables cooperation with external devices: barcode scanners, printers, external displays, control buttons, light signalling towers, other controlling/signalling devices, systems for automatic process control and superior IT systems. Scale operation requires use of a dedicated PM01.EX power supply, which is not a standard scale component. To operate the scale, order a selected type of the dedicated intrinsically safe power supply. Power supply types: PM01.EX-1 - power supply for operation in ATEX area. Used when it is required to connect the power supply to voltage source placed in hazardous area. PM01.EX-2 - power supply for operation outside ATEX area. Used when power supply connection to voltage source is carried out outside hazardous area. Complex software enables carrying out many tasks connected with mass measurement, e.g. parts counting, checkweighing and statistics. The scales feature user-friendly graphic interface, which can be customized using widgets. This and the large colour display of high resolution guarantee easy and clear transmission of data on current process. Colour bar graph significantly influences performance by signalling whether the weighing result is within declared thresholds or not.

RS 232 cable: scale (PUE C/41H, PUE HY10, PUE 5 terminal) - ZEBRA printer. Standard cable length: 2  (more)m Customized cable length (extra charge): 5m, 10m Compatible with: Scales operated via PUE C41H terminal Scales operated via PUE 5.15 (5.19) terminal Scales operated via PUE HY10 terminal PUE C41H terminal PUE 5.15 (5.19) terminal PUE HY10 terminal
