Heidolph 036110230 Hei-PLATE Mix 'n' Heat Expert Hotplate Stirrer, 145mm Plate
Description from the supplier

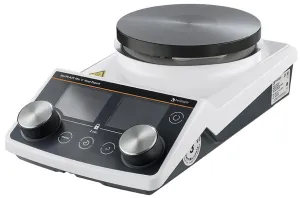

Heidolph 036110230 Hei-PLATE Mix 'n' Heat Expert Hotplate Stirrer, 145mm Plate
The Heidolph 036110230 Hei-PLATE Mix 'n' Heat Expert Hotplate Stirrer, 145mm Plate convinces with its intuitive handling: Thanks to respectively one display per main function (stirring and heating), you have an easily legible eye on all values and settings at any time. The handling is made via two push-and-rotary controls with LED-rings for an easy identification of the active functions. Separate timers for heating and stirring functions create flexibility and let you control your experiments better. The user-friendly menu navigation makes working with this device particularly easy. For controlling the temperature, you can choose between three heating modes: FAST for a particularly quick heating, as well as PRECISE and PRECISE+ for a particularly exact control of your target temperature without overshoot - this is how sensitive samples are optimally protected. Therefore, the device is compatible with the temperature sensor Pt1000 as well as the double sensor Pt1000 that allows the measurement in your sample and in the bath liquid simultaneously.
For the stirring speed, there is a three-stage setting (start-up behavior). Furthermore, you can set the rotational direction of the magnetic stirring bar and benefit from the automatic stir bar detector. As a result, your sample is optimally stirred at any time, even when there are irregularities while stirring. This magnetic stirrer is equipped with the most important safety features. The large safety distance between the heating plate and the control panel, as well as the visual residual heat indicator at temperatures 50°C, protect against burns. The patented Kera-Disk® plate made of anodized aluminum is chemical-resistant, scratch-resistant and has a diameter of 145 mm (also available with 135 mm on request). This makes it suitable for use with many accessories and samples on a small footprint. Moreover, the material used allows the fastest heating times.
Click Here to View Product Video
- Power Cord
- Operator's Manual
- Manufacturer's Documentation
- 10 Year Manufacturer's Warranty
Product details
| Speed Range | 100 to 1,400 RPM |
| Speed Accuracy | ± 1 RPM |
| Temperature Range | 20 to 350°C |
| Temperature Accuracy | ± 1 K |
| Heating Power | 600W at 115V or 800W at 230V |
| Maximum Stir Capacity | 20L |
| Maximum Load | 55.1 lb. (25 kg) |
| Timer | 1 minute to 99 hours and 59 minutes; or continuous |
| Drive | EC motor, counter clockwise/clockwise rotating |
| Residual Heat Indicator | Yes |
| Display | 2 TFT displays |
| Plate Material | Kera-Disk (Silumin with ceramic coating) |
| Plate Diameter | 5.7 in. (14.5 cm) |
| Overall Dimensions (W x H x D) | 6.61 x 3.97 x 11.77 in. (16.8 x 10.1 x 29.9 cm) |
| Weight | 6.61 lb. (3 kg) |
| Electrical Requirements | 115 or 230V, 50/60Hz |
