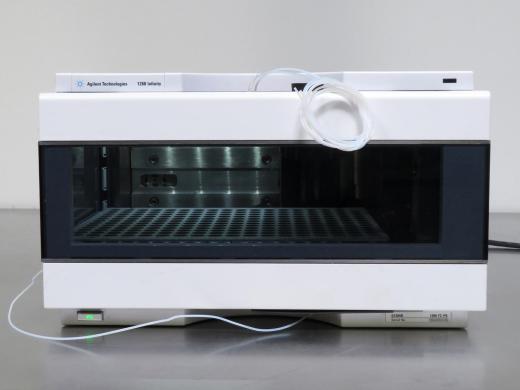

Agilent 1260 Infinity I G1364B Preparative-Scale Fraction Collector
Product Description
The Agilent 1260 Infinity I G1364B Preparative-Scale Fraction Collector is engineered for semipreparative purification of milligram to gram quantities.
- Maximum system flow rate: 100 mL/min
- Delay volume inlet to diverter valve: Approximately 500 µL (tube length dependent)
- Collector capacity: Up to 3 fraction collectors in parallel via 12-position, 13-port selector valve
- Diverter valve: 3/2 valve with 15 µL internal volume, switching time < 100 ms for precise flow redirection
- Trigger compatibility: Supports UV, ELSD, MS detectors with trigger modes including time slices, peak threshold/slope, timetable, and manual triggers
- Cooling option: Available through external G1330B module to maintain fraction integrity
- Tube tray capacity: Holds 215 test tubes (12 mm outer diameter, max height 100 mm, approx. 7 mL volume per tube)
- Delay calibration sensor: Single wavelength absorbance at 654 nm for accurate fraction timing
This fraction collector supports discrete fraction and continuous flow modes, enhancing flexibility in preparative chromatography workflows.
Item Stats
Product details
| Delay Volume (in ul) | Fraction collector inlet to diverter valve: ~500 (typical, depends on length of the tubing) Diverter valve: ~15 Diverter valve to needle: ~110 Needle: ~5 |
| Maximum System Flow | 100 mL/min |
| Maximum Capacity | 3 fraction collectors in parallel plus one recovery fraction collector connected via 12-position, 13-port selector valve (PN G1160A) |
| Cooling | Optional (with additional G1330B), performance depending on ambient conditions and the volume of collected fractions |
| Trigger Modes | Time slices Peak (threshold, up- / downslope) Timetable (combination of time intervals and peak) Manual trigger (supported only with Agilent Instant Pilot G4208A) |
| Trigger Sources | G1315C/D, G4212B, G1365C/D, G1321A, G1946C/D, G1956A/B |
| Operating Modes | Discrete fractions: default mode for all vessels. The flow is diverted to waste, while moving from one vessel position to the next vessel position Continuous flow: optional, available only when using well plates. It is possible to move from one well plate position to the next one without diverting the flow into the well plate to waste |
| Diverter Valve | 3/2 valve with low internal volume (15 ul), switching time < 100 ms, maximum operating presure 6 bar |
| Included Tray | Full tray with 215 test tubes (12 mm OD, max. height 100 mm, ~7 ml / tube) |
| Delay Calibration Sensor | Single wavelength absorbance detector working at 654 nm, consisting of a LED and photo diode |
| Dimensions (H x W x D) | 8 x 13.5 x 17 in. (20 x 34.5 x 44 cm) |
| Weight | 29.8 lb. (13.5 kg) |
| Electrical Requirements | 100-240V, 50/60Hz |
