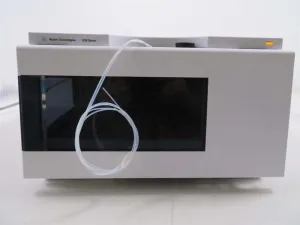

Agilent 1200 HPLC G1364C Automated Fraction Collector
Product Description
Agilent 1200 HPLC G1364C Fraction Collector
- Maximum tube volume: approximately 45 ml
- Flow rate: 100 ml/min
- Test tube/plate sizes: minimum 48 mm, maximum 75 mm diameter
Features:
- Customizable trigger modes: time slices, peak detection, manual trigger
- Operating modes: discrete fraction collection and continuous flow
- Single wavelength absorbance detector for delay calibration
- Low-volume 3/2 diverter valve: fast switching, maximum pressure 6 bar
- Supports up to three parallel fraction collectors plus one recovery collector for high throughput
- Interfaces: CAN, LAN, RS232C, remote signals for device integration
- Safety features: leak detection, error handling, exhaust fan for hazardous vapors
The device is optimized for fraction collection in HPLC workflows, accommodating different sample amounts, flow rates, and container types. Supplied fully tested to factory specifications.
Item Stats
Product details
| Trigger Modes | Time slices, Peak (threshold, up- /downslope), Timetable (combination of time intervals and peak) and Manual trigger (supported only with G1323BControl Module) |
| Operating Modes | Discrete fractions: default mode for all vessels. The flow is diverted to waste, while moving from one vessel position to the next vessel position Continuous flow: optional, available only when using well plates. It is possible to move from one well plate position to the next one without diverting the flow into the well plate to waste |
| Test Tube/Plate Sizes | Minimum 48 mm to 75 mm maximum |
| Maximum Tube Volume | ca. 45 ml |
| Maximum Flow Rate | 100 ml / min (depending on viscosity and generated back pressure, max. 6 bar at the diverter valve) |
| Delay Volumes [μl] | Fraction collector inlet to diverter valve: -500 (typical, depends on length of the tubing) Diverter valve: ~15 Diverter valve to needle: ~110 Needle: ~5 |
| Delay Calibration Sensor | Single wavelength absorbance detector working at 654 nm, consisting of a LED and a photo diode |
| Diverter Valve | 3/2 Diverter valve with low internal volume (15 μl), switching time < 100 ms, maximum operating pressure 6 bar |
| Maximum Capacity | 3 fraction collectors in parallel plus one recovery fraction collector connected via 12-Position, 13-Port Selector valve |
| Interfaces | Controller-area network (CAN). optional; LAN or external contacts interface RS232C, APG-remote (for remote start / stop signals to / from other modules) Interface to G1330A Thermostat CAN-DC-out for operation of Agilent approved external devices like valves |
| Safety Features | Leak detection and safe leak handling, error detection and display, exhaust fan for fume extraction of hazardous vapors |
