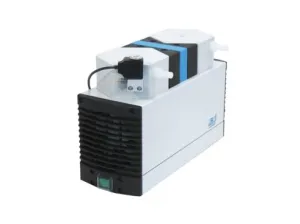

KNF UN840.3FT.40P IP44-T Diaphragm Pump

$3,866.00 (ex VAT)
item image

Description from the supplier

KNF UN840.3FT.40P IP44-T Diaphragm Pump


Ultimate Vacuum
10.7 mbar (abs.)
Maximum Flow Rate
34L/min (2.04 m3/h)
Protection Class
IP44

  • Pure transfer, evacuation and compression
  • Highly compatible with vapors and condensation
  • Chemically resistant flowpath
  • Suitable for highly aggressive or corrosive gases and vapors
  • Environmentally friendly
  • Maintenance-free
  • Self-drying system removes condensate without affecting the vacuum level


The KNF UN840.3FT.40P IP44-T Diaphragm Pump Diaphragm Pump features an integrated KNF self-drying system. Designed for a wide range of applications in laboratories, including vacuum drying of chambers (for drying or heat-treating substances and components) or steam sterilizers for sterilizing instruments, vessels, filters and textiles. The KNF UN840.3FT.40P IP44-T Diaphragm Pump Diaphragm Pump Diaphragm Pump can be used very universally due to its high resistance to aggressive media.

The KNF self-drying system allows condensed liquid to be blown out of the pump heads at a high speed during evacuation. The drying cycle can be adjusted to the requirements of the individual process using three variables.

Product details

Maximum Flow Rate34L/min (2.04 m 3/h)
Ultimate Vacuum10.7 mbar (abs.)
Operating Pressure1 bar (rel.)
Pump Head MaterialPTFE
Diaphragm MaterialPTFE coated
Valve MaterialFFPM
Hose ConnectionsID 10
Protection ClassIP 44
Permissible Ambient Temperature5°C to 40°C
Dimensions (L x H x W)13.42 x 9.41 x 7.44 in. (34.1 x 23.9 x 18.9 cm)
Weight28.4 lb. (12.9 kg)
Electrical Requirements100-230V, 50/60Hz, 280W
