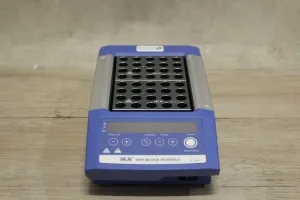

IKA Dry Block Heater 2 with Dual Heating Blocks and PT-1000 Sensor

The IKA Dry Block Heater 2 is a digital block heater equipped with two aluminum blocks, designed for precise temperature control in small vessels. It features an included PT-1000 temperature sensor, enabling direct sample vessel temperature control. Perfect for melting and boiling point determination, enzyme reactions, incubation and activation of cultures, immunoassays, DNA denaturation, culture media tests, coagulation tests, blood-urea-nitrogen determinations, and in situ hybridizations.

This heater offers stepless adjustable temperature settings up to 120°C and a countdown timer ranging from 1 minute to 99 hours and 59 minutes. The counter displays heating time for added convenience. Its design includes a large variety of blocks, error code display, and a fixed safety circuit for added safety. An acoustic signal indicates test completion.

Key specifications include a heat output of 250 W, a heating temperature range from ambient +5°C to 120°C, and a temperature display with a resolution of 1 K. The unit connects to an external temperature sensor: CT (DIN12878). Temperature stability is maintained at ±0.2°C within blocks at 37°C and ±0.4°C at 60°C, with corresponding temperature homogeneity of 0.2 K and 0.4 K respectively. The setup plate material is aluminum alloy, with plate dimensions of 96 x 152 mm. The fixed safety circuit is set at 150°C.

Dimensions measure 151 x 73 x 304 mm, with a weight of 1.724 kg. Included blocks accommodate various vessel sizes: DB 1.2 for Eppendorf microtubes (1.5 ml) with 20 holes, DB 5.1 for 12 mm vials with 20 holes, and block 13.9 for round bottom tubes (12/13 mm) with 16 holes, each tailored for specific applications.
