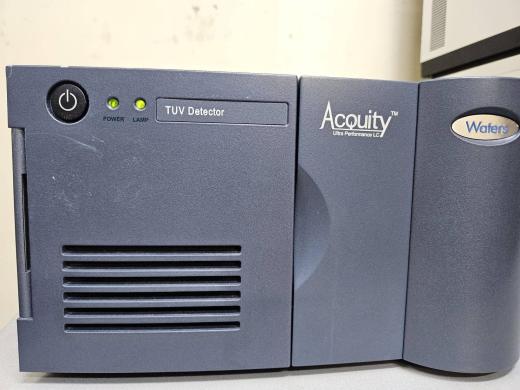

Waters Acquiry TUV Detector

The Waters Acquity 186015022 TUV detector is a high-quality second-hand system designed for both HPLC and UPLC applications.

Technical Specifications:

• **Wavelength Range:** 190 to 700 nm
• **Bandwidth:** Less than 5 nm
• **Wavelength Accuracy:** ±1.0 nm
• **Wavelength Repeatability:** ±0.1 nm

Noise and Linearity:

• **Single λ Dry Noise:** Less than 6 μAU (at 230 nm, 1-second digital filter, 30-second segments, 2 Hz data rate, medium shunt)
• **Two-Channel Dry Noise:** 10.0 x 10^-5 AU (measured at 230 nm, operating across 230 to 280 nm with a 2-second filter at a 2 Hz data rate, with medium shunt)
• **Linearity:** Less than 5% at 2.5 AU, using propylparaben at 257 nm

Drift and Sensitivity:

• **Drift:** 5.0 x 10^-4 AU/hr. max (ΔT = +2 °C/h) at 230 nm, after a 1-hour warm-up with medium shunt
• **Sensitivity Setting Range:** 0.0001 to 4.0000 AUFS

Filter and Light Source:

• **Filter Setting Range:**
• **Lamp Source:** 30 W High Brightness Deuterium lamp, with a 0.5 nm aperture; pre-aligned and accessible from the front
• **Photodiodes:** Equipped with 2 matched silicon photodiodes

Additional Features:

• **Second Order Filter:** Automatically engaged for wavelengths greater than 370 nm
• **Wavelength Calibration Filter:** Includes an Erbium filter, usable at startup or on demand
• **Nitrogen Purge:** Equipped with a purge fitting on the optics table
• **Path Length:** 10 mm
• **Cell Volume:** 0.5 µL
• **Pressure Limit:** 69 bar

This detector is robust and engineered to meet the precise needs of your chromatographic analyses, ensuring accurate and reliable measurements.
