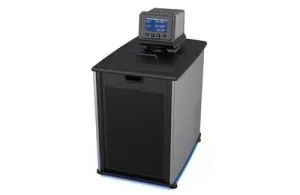

Polyscience AP15R-40-A11B 15L Refrigerated Circulator, -40°C to 200°C, 1000W; 120V
Polyscience AP15R-40-A11B 15L Refrigerated Circulator, Advanced Programmable (-40 to 200C), 120V, 60Hz3D Visualization of the Polyscience CirculatorThe rendered image can be freely rotated in a full 360-degree view, allowing you to zoom in, pause, and explore every angle. For enhanced detail, the rendering can also be displayed in full-screen mode.
This 3D model is designed exclusively for visualization purposes and may not accurately represent the actual appearance of your product.
Your browser does not support iframes.
The Polyscience AP15R-40-A11B 15L Refrigerated Circulator is intended for the precise temperature control ofsuitable liquids in a reservoir. Extremely easy to use and maintain, itcombines design innovation with highly intuitive operation to deliverconvenient and versatile liquid temperature control for a wide range ofapplications.Features
Time/temperature programming (ten 100-step programs)
Intuitive 4.3” (10.9 cm) SmartTouch display
6 languages: French, German, Spanish, Chinese, Arabic, English
Variable speed pump with open- and closed-loop external circulation capability
Swivel 180™ Rotating Controller
On-board connectivity: USB-A & B, Ethernet, RS-232/RS-485, and external temperature probe
Event scheduling (time & date) with real-time clock
Review temperature trends for up to 10 days
Multiple selectable “home” screens
On-screen help
Automatic and/or user-adjustable performance optimization
5-point calibration capability
Click Here to View Product Video
INCLUDED:
The Polyscience AP15R-40-A11B 15L Refrigerated Circulator, -40°C to 200°C, 1000W; 120V includes:
- Power Cord
- Operator's Guide
- Manufacturer's Documentation
- 2 Year Manufacturer's Warranty
| Description | -40, 15 L Ref. Circulator |
| Controller Type | Advanced Programmable |
| Display | 4.3" SmartTouch Touchscreen |
| Connectivity | Ethernet, USB A & B, RS232/addressable RS485, External Temperature Probe |
| Languages Supported | 6: French, German, Spanish, Chinese, Arabic, English |
| Time/Temperature Programs & Steps | Ten 100-step programs |
| Swivel 180 Rotating Controller | Yes |
| Working Temperature Range °C | -40° to 200° |
| Temperature Stability °C | ±0.01° |
| Fluid Optimization/Specific Heat Tuning | Automatic and/or user-adjustable |
| Temperature Calibration Capability | 5-point |
| Working Access (L x W x D) (cm) | 21.2 x 27.6 x 14 cm |
| Pump Type | Pressure/Suction |
| External Temperature Control Capability | Yes |
| Flammability Class (DIN 12876-1) | III (FL) |
| Part Number | AP15R-40-A11B |
| Maximum Pressure (psi) | 4.3 |
| Maximum Pressure (bar) | 0.30 |
| Maximum Pressure Flow Rate (gpm) | 5.30 |
| Maximum Pressure Flow Rate (l/min) | 20.1 |
| Maximum Suction Flow Rate (gpm) | 3.9 |
| Maximum Suction Flow Rate (l/min) | 14.7 |
| Cooling Capacity @ -20°C (W) | 265 |
| Cooling Capacity @ 0°C (W) | 650 |
| Cooling Capacity @ +20°C (W) | 1000 |
| Cooling Capacity @ +100°C (W) | 1000 |
| Included Hardware | Nylon hose adapters for 3/8", 1/4", and 3/16" |
| Heater Wattage | 1100 |
| Electrical Requirements (VAC/Hz/Ph/A) | 120/60/1/13 |
| Regulatory Approvals | ETL |
