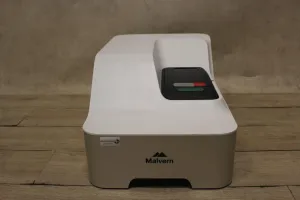

Malvern Zetasizer Red Label Particle Size Analysis

The Zetasizer Lab system offers traditional 90-degree side-scatter size measurements but still offers enhanced features. The Zetasizer Lab incorporates Adaptive Correlation, M3-PALS and constant current zeta mode as well as our extended size range analysis when used with ZSU1002 capillary cell.

The Zetasizer Lab is the perfect entry-level system, offering a wide range of features, including:

DLS analysis : particle size measurements from 0.3 nm to 10 μm

Extended size range analysis offers improved accuracy for particle sizes above 1 μm, and indicative results above 10 μm (using ZSU1002 Low Volume Disposable Sizing Cell)

Zeta potential of nanoparticles and colloids using M3-PALS analysis and constant current zeta mode

Molecular weight using Static Light Scattering at 90°

Supports use of Low Volume Disposable Capillary Cell for size measurements in sample volumes as low as 3 μL

Red Label variant for more challenging sample types, such as proteins, surfactant solutions and low solid content samples

Size Measurement Principle: Classical 90° Dynamic Light Scattering

Zeta Measurement Principle: ELS with M3-PALS and Constant Current Zeta Mode

Molecular Weight and B22: Static Light Scattering (90°)

Low Volume Disposable Sizing Cell with Extended Size Analysis Support: Yes

Size Range: 0.3 nm to 10 μm

Minimum Volume: 3 μL

Zeta potential Size Range: 3.8 nm to 100 μm

Minimum Volume: 20 μL

Including software
