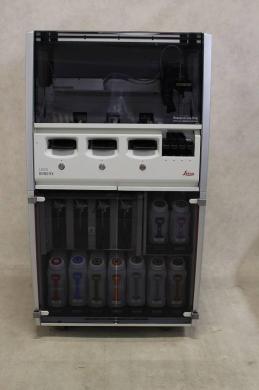

Leica Bond RX Fully Automated Research Stainer

Use the BOND RX to confidently complete IHC, ISH, FISH, CTC, multiplexing and other tests. Explore your ideas in a variety of ways via open reagents, open detection kits, and customizable protocols. The BOND RX provides an easy way for labs to fully automate tests and accelerate research programs.

Slide Capacity: 30, Finished trays (10 slides) may be replaced continuously

Number of Reagent Containers: 36

Reagent Container Capacity: 7 mL and 30 mL

Titration Container Capacity: 6 mL

Bulk Reagent Container Capacity: 2 L or 5 L

Hazardous Waste Container Capacity: 5 L

Standard Waste Container Capacity: 2 x 5 L

Chemical Compatibility: All BOND Reagents, 70% Alcohol Solution (for cleaning purposes)

Temperature Indication: Defaults (these can be changed by service representatives): Warm: 35°C, Hot: 80°C

Maximum permitted pressure for gas and liquid connections: 1.0 bar

Slide Width: 24.64 – 26.0 mm

Slide Length: 74.9 – 76.0 mm

Slide Thickness: 0.8 – 1.3 mm

Label Area Width: 24.64 – 26.0 mm

Label Area Length: 16.9 – 21.0 mm

Material: Glass, ISO 8037/1

Dimensions (WxHxD): 790 x 1378 x 806 mm

Weight: 238 kg
