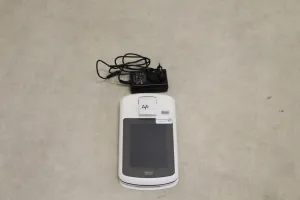

Invitrogen Qubit 3.0 Fluorometer

The Qubit 3.0 Fluorometer is a benchtop fluorometer that can be used for the quantitation of DNA, RNA, microRNA, and protein using the highly sensitive and accurate fluorescence-based Qubit quantitation assays.

Fast and highly accurate quantitation of DNA, RNA, and protein in less than 5 seconds per sample.

High levels of accuracy using only 1 – 20 μL of sample, even with very dilute samples.

Use of dyes selective for dsDNA, RNA, or protein minimizes the effects of contaminants in the sample.

Stores results from up to 1000 samples.

Large, state-of-the-art color touch screen for easy workflow navigation.

Graphically displays up to 20 data points.

Instrument indicates samples that are in the extended range or out of range in the graph, as well as in the simple sample output screen.

Saves sample data as a.CSV (comma separated value) file.

Exports data to a USB drive or directly to your computer via a USB cable.

Allows easy definition and saving of assay preferences.

Instrument user interface can be personalized to show only the frequently used assays, to add new assays, including user-defined assays created with the MyQubit software and web tool, and to display in the language of your choice including English, French, Spanish, Italian, German, simplified Chinese and Japanese.

Dynamic range: 5 orders of magnitude

Processing time: ≤ 5 seconds/sample

Light sources: Blue LED (max ~470 nm), Red LED (max ~635 nm)

Excitation filters: Blue 430–495 nm, Red 600–645 nm

Emission filters: Green 510–580 nm, Red 665–720 nm

Detectors: Photodiodes; measurement capability from 300–1000 nm

Calibration type: 2- or 3-point standard

Tube type: 0.5-mL Real Time PCR (polypropylene) tubes

Warm-up time: < 35 seconds
