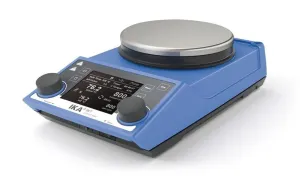

IKA RET Control Visc

$1,596.00 (ex VAT)
item image

Description from the supplier

RET control-visc


Speed Range
50 to 1,700 rpm
Temperature Setting Range
0 - 340 °C
Setting accuracy speed
10 rpm

  • BNC socket for connection of a pH electrode
  • Adjustable temperature control mode: rapid heating and very accurate temperature control
  • Dual sensor for simultaneous control of heat transfer fluid temperature and medium temperature
  • Timer and countdown functions
  • Display of viscosity change trend
  • Detached magnet detection
  • Intermittent operation
  • Several modes of operation available
  • Safety circuit adjustable from 50 to 380°
  • Transparent protective cover included
  • Error code display for easy troubleshooting
  • Exact temperature and speed adjustment by means of digital display; even when function switched off
  • Suitable for unsupervised operation
  • Sealed casing (IP 42) ensures a long service life


PATENTED WORLD FIRST: Safety magnetic stirrer with heating and integrated balance. Clear, multilingual TFT display makes it easy to set all parameters.

Integrated temperature control feature enables connection of a temperature probe, placed directly in the medium, to control medium temperature with a high degree of precision. PT 100 temperature sensor is included. The stainless steel composite hot plate, reaching a temperature of 340 °C, enables rapid heating.

  • RET control-visc
  • PT 100.70 Temperature sensor
  • IKAFLON® 30 Magnetic stirring bar
  • IKAFLON® 40 Magnetic stirring bar
  • Screw driver
  • H 104 Cover for RET control
  • USB Cable - USB A to Micro-B, 2 m
  • 2 Year Manufacturer's Warranty

Product details

Number of stirring positions1
Stirring quantity max. per stirring position (H2O)20 l
Maximun load25 kg
Motor rating output9 W
Direction of rotationright
Speed display set-valueTFT
Speed display actual-valueTFT
Speed adjustmentTurning knob
Speed range50 to 1,700 rpm
Setting accuracy speed10 rpm
Stirring bar length20 - 80 mm
Self-heating of the set-up plate by max. stirring (RT:22°C/duration:1h)+28 K
Heat output600 W
Temperature display set-valueTFT
Temperature display actual-valueTFT
Temperature unit°C / °F
Heating temperature rangeRoom temp. + device self heating - 340 °C
Heat controlTurning knob
Temperature setting range0 - 340 °C
Temperature setting resolution of heating plate0.1 K
Connection for ext. temperature sensorPT100/PT1000 (dual sensor)
Characteristics in the medium with temperature sensor1l M50 Oil at H1500
Temperature medium max.270 °C
Temperature setting resolution of medium0.1 K
Adjustable safety circuit50 - 380 °C
Set-up plate materialstainless steel 1.4301
Set-up plate dimensions (diameter)135 mm
Intermittent modeyes
Viscosity trend measurementyes
Break detection stirring baryes
Timeryes
pH measurementyes / BNC socket female
Graph functionyes
Programsyes
Sensor in medium detection (Error 5)yes
Weighing functionyes
Weighing range10-5000 g
Weighing accuracy±(0.3%+2) g
Load capacity weighing function max.5 kg
Heating rate (1l H2O in H1500)7 K/min
Dimensions (W x H x D)160 x 85 x 270 mm
Weight2.7 kg
Permissible ambient temperature5 - 40 °C
Permissible relative humidity80 %
Protection class according to DIN EN 60529IP 42
RS 232 interfaceyes
USB interfaceyes
Voltage115 V
Frequency50/60 Hz
Power input650 W
